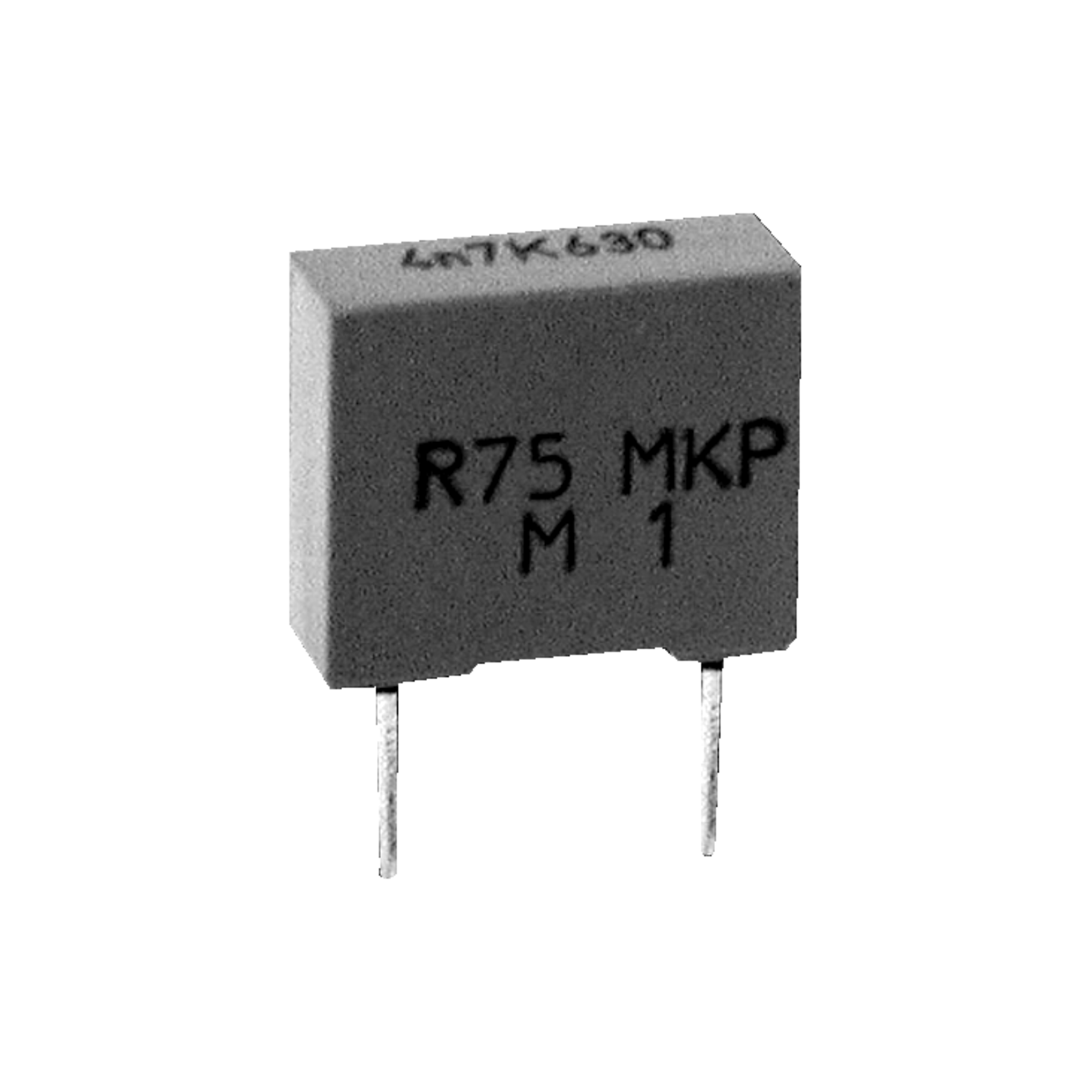

R75MI3220AA30K
Kemet THT MKP capacitor R75 radial 220V 400V 220nF RM15mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4.000 Pcs. in stock
Next Stock Receipt
Week 29/2026
2.000 Pcs.
2.000 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKP capacitor
- Dielectric
- Metallized PET film
- Capacity
- 220 nF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 400 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 15 mm
- RoHS-Conform
Specifications
Open all

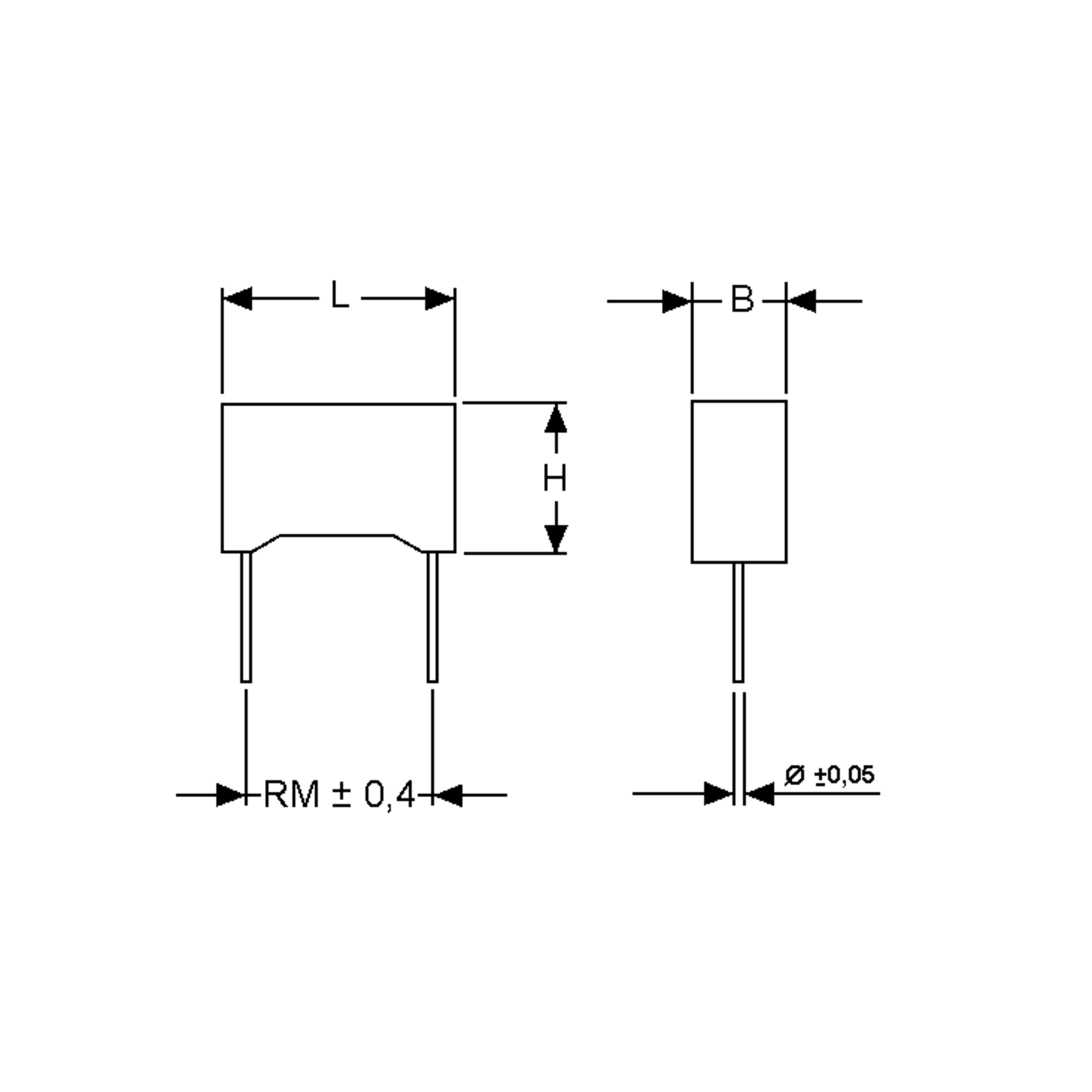

Dimensions and Weights
- Dimension: Length
- 18 mm
- Dimension: Width
- 7.5 mm
- Dimension: Height
- 13.5 mm
- Pitch
- 15 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
- Climate category IEC
- 55/100/56
Technical Features
- Capacity
- 220 nF
- Capacity
- 220
- Capacity unit
- nF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 400 V
- Rated voltage AC
- 220 V
- Pulse Rise Time
- 300 V/µs
- Insulation resistance
- 100 GOhm
Documents
DataSheet_C75NF220-400 .pdf
