R60ER5100AA30K
Kemet THT MKT capacitor R60 radial 100V 10µF RM27,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
880 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 560 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKT capacitor
- Dielectric
- Metallized PET film
- Capacity
- 10 µF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 100 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 27.5 mm
- RoHS-Conform
Specifications
Open all

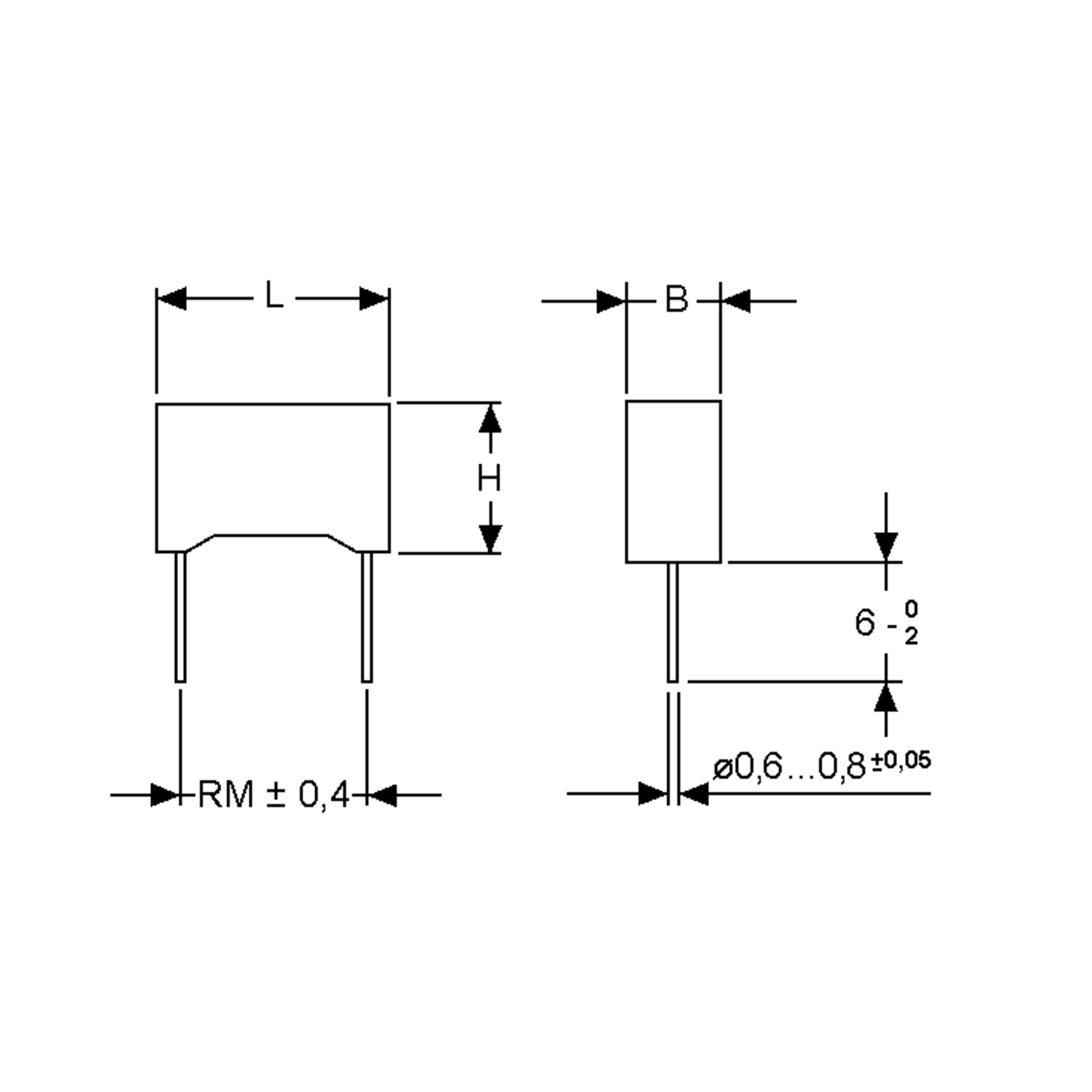

Dimensions and Weights
- Dimension: Length
- 32 mm
- Dimension: Width
- 11 mm
- Dimension: Height
- 20 mm
- Pitch
- 27.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
- Climate category IEC
- 55/105/56
Technical Features
- Capacity
- 10 µF
- Capacity
- 10
- Capacity unit
- µF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 100 V
- Pulse Rise Time
- 1.5 V/µs
- Reliability
- 5 fit
- Service life
- 200.000 h
- Insulation value in sec.
- 1,250 s
Safety/Certifications
- Standards
- AEC-Q200
