R60DF4100AA6AK

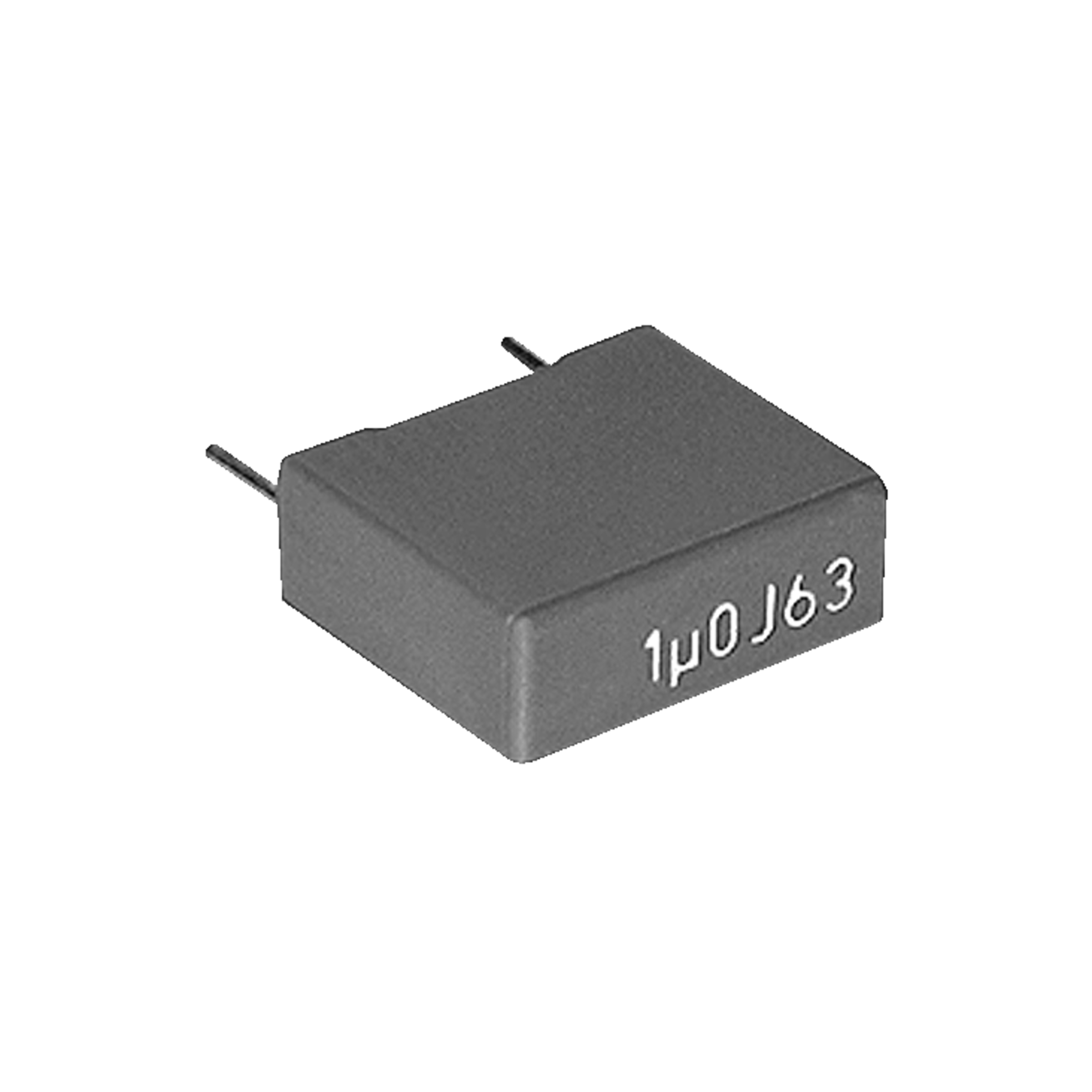

Kemet THT MKT capacitor R60 radial 63V 1µF 10% RM10,0mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
25 Pcs.
25 Pcs.
Next Stock Receipt
Week 03/2025
1.975 Pcs.
1.975 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKT capacitor
- Capacity
- 1 µF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 63 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 10 mm
- RoHS-Conform
Specifications
Open all

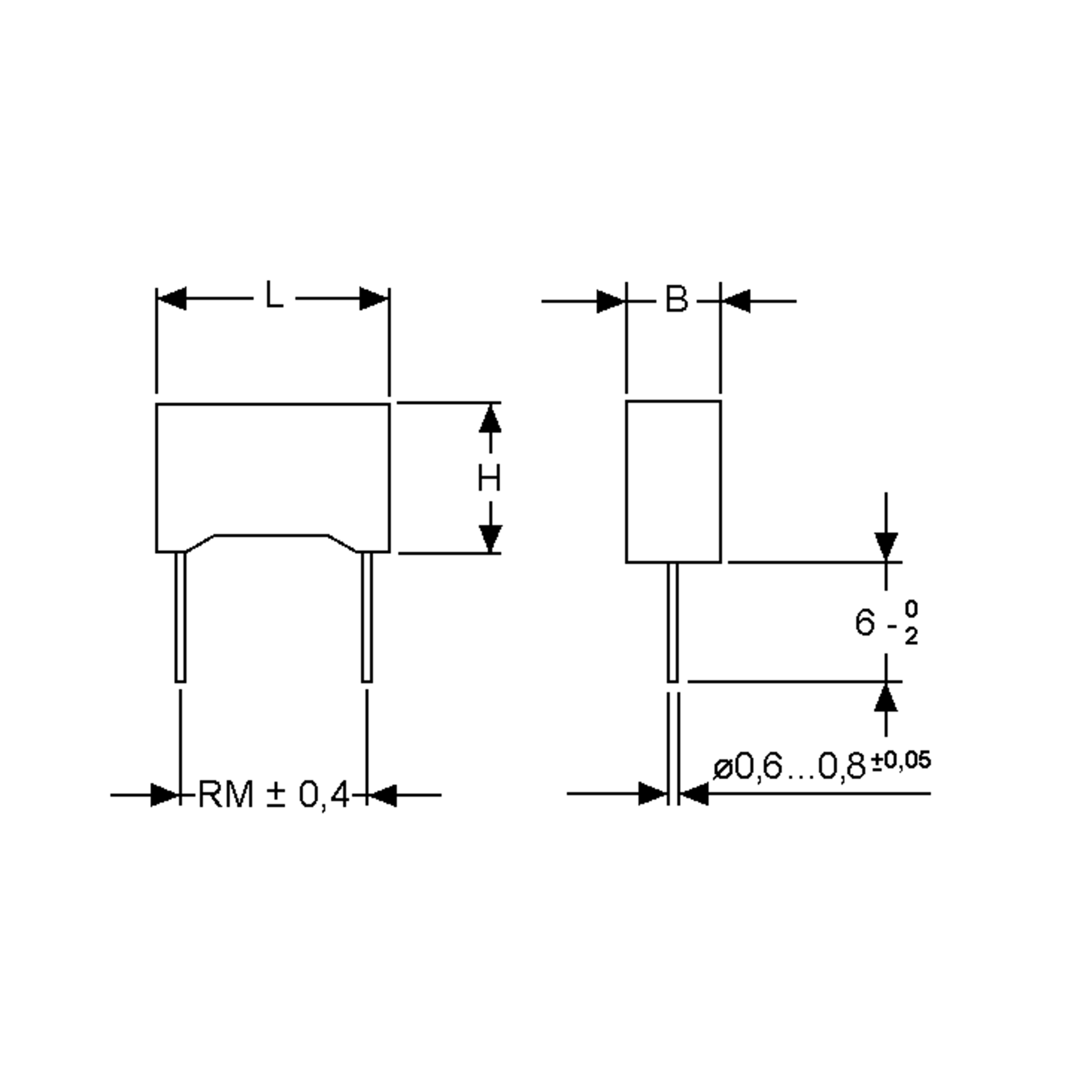

Dimensions and weights
- Dimension: Length
- 13 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 11 mm
- Pitch
- 10 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
- Climate category IEC
- 55/105/56
Technical features
- Capacity
- 1 µF
- Capacity
- 1
- Capacity unit
- µF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 63 V
- Pulse Rise Time
- 6 V/µs
- Reliability
- 5 fit
- Service life
- 200.000 h
- Insulation value in sec.
- 1,250 s
Safety/Certifications
- Standards
- AEC-Q200
