LDEDD3330KA5N00
Kemet 330 nF 10 % 63 V SMD -55 °C 125 °C 2220
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.600 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices

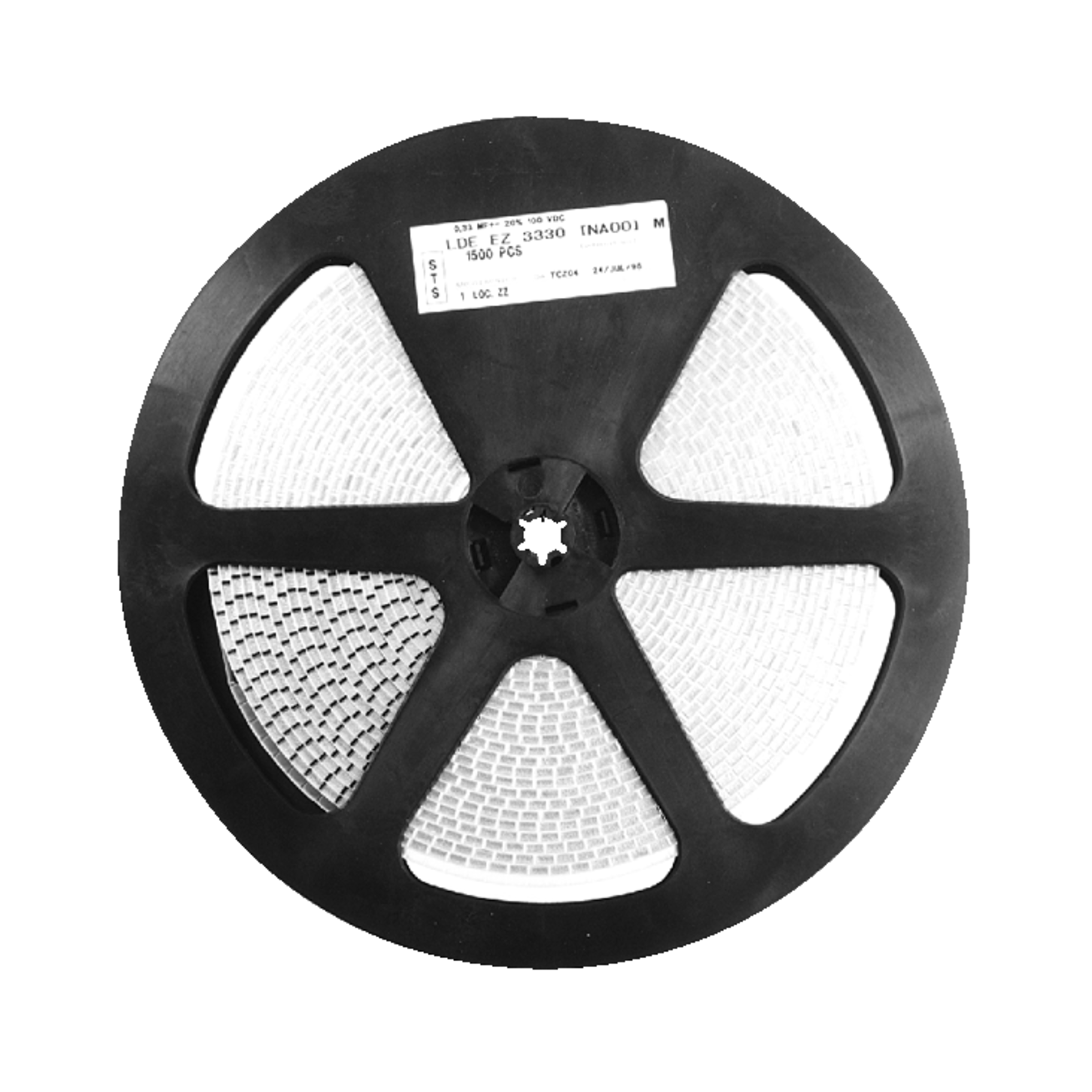

Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKT capacitor
- Capacity
- 330 nF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 63 V
- Assembly Type
- SMD
- Housing
- 2220
- RoHS-Conform
Specifications
Open all

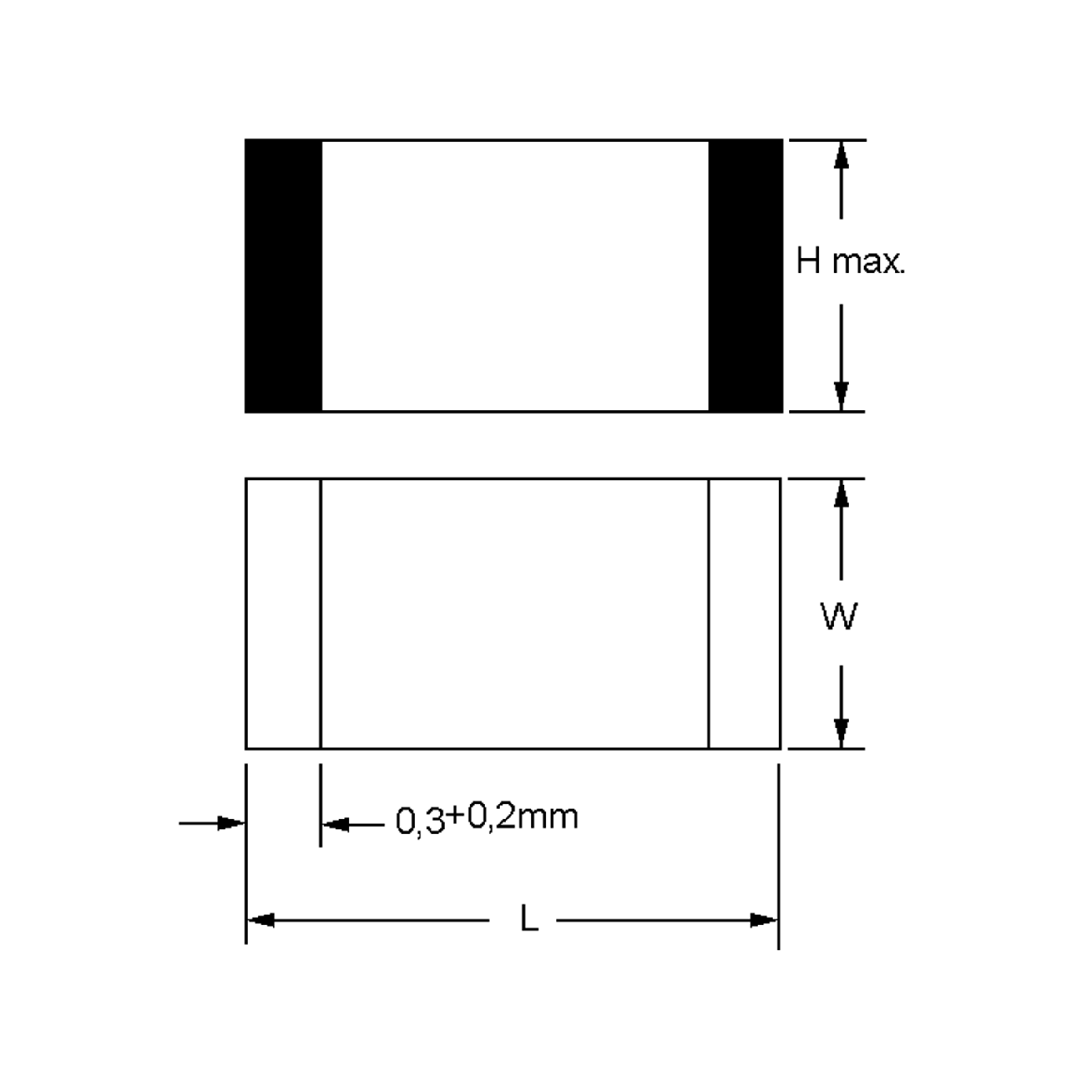

Dimensions and weights
- Dimension: Length
- 5,705 mm
- Dimension: Width
- 5.1 mm
- Dimension: Height
- 1.8 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
- Climate category IEC
- 55/125/56
Technical features
- Capacity
- 330 nF
- Capacity
- 330
- Capacity unit
- nF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 63 V
- Pulse Rise Time
- 100 V/µs
- Reliability
- 1 fit
- Insulation resistance
- 1.000 MOhm
