FS0H223ZF
Kemet Double-layer capacitor Supercap THT radial 0,022F 5,5V 80% RM5,08mm -25°C - 70°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 28 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Double-layer capacitor Supercap
- Capacity
- 0,022 F
- Capacity tolerance
- 80 %
- Rated voltage DC
- 5.5 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 5.08 mm
- RoHS-Conform
Specifications
Open all

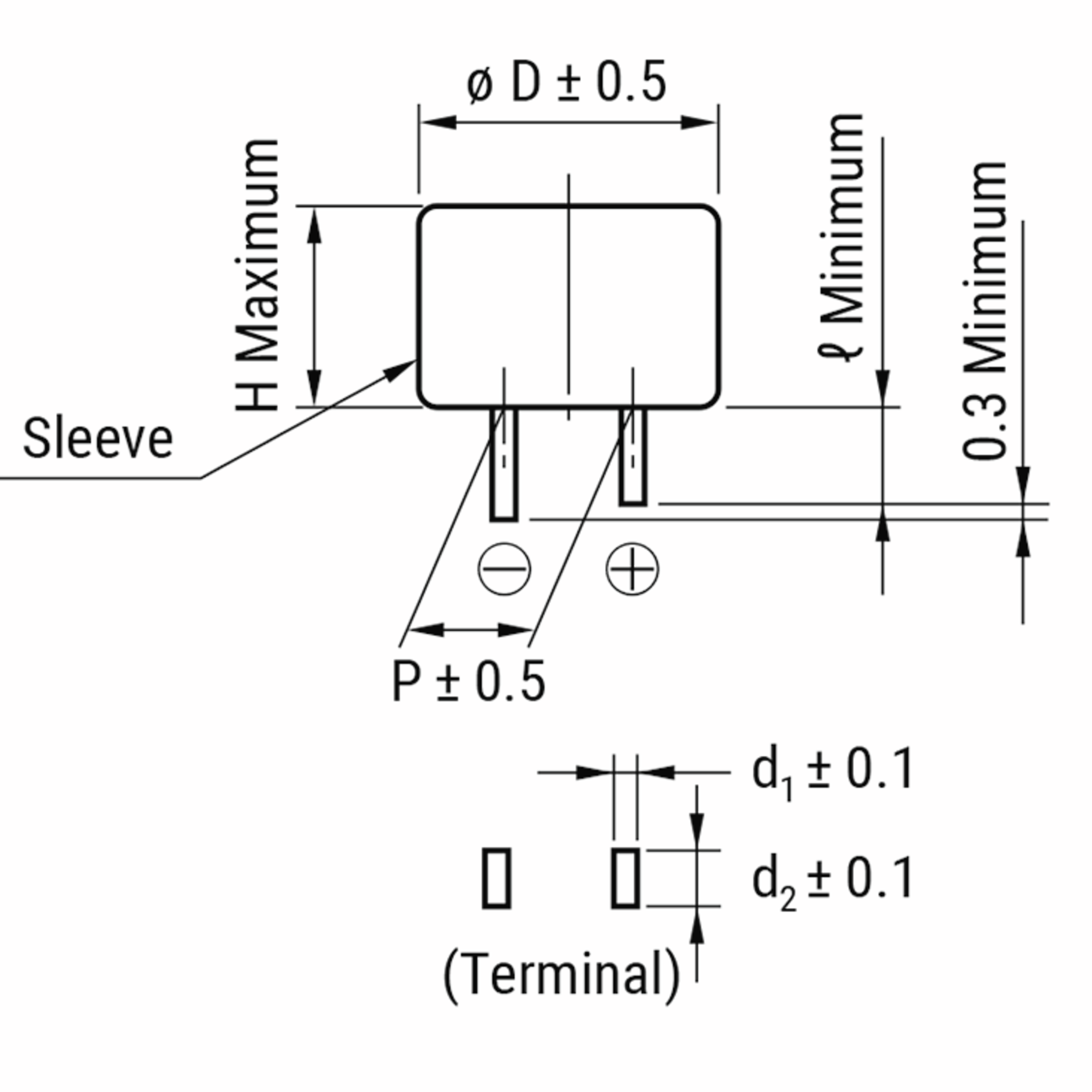

Dimensions and weights
- Diameter
- 11.5 mm
- Dimension: Height
- 8.5 mm
- Weight
- 1.6 g
- Pitch
- 5.08 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Solderability
- 245°C / 5s
- Capacity
- 0,022 F
- Capacity
- 0.022
- Capacity unit
- F
- Capacity tolerance
- 80 %
- Current, max.
- 0 A
- Equivalent series resistance (ESR)
- 60 Ohm
- Rated voltage DC
- 5.5 V
