FLLD3030AMHT3

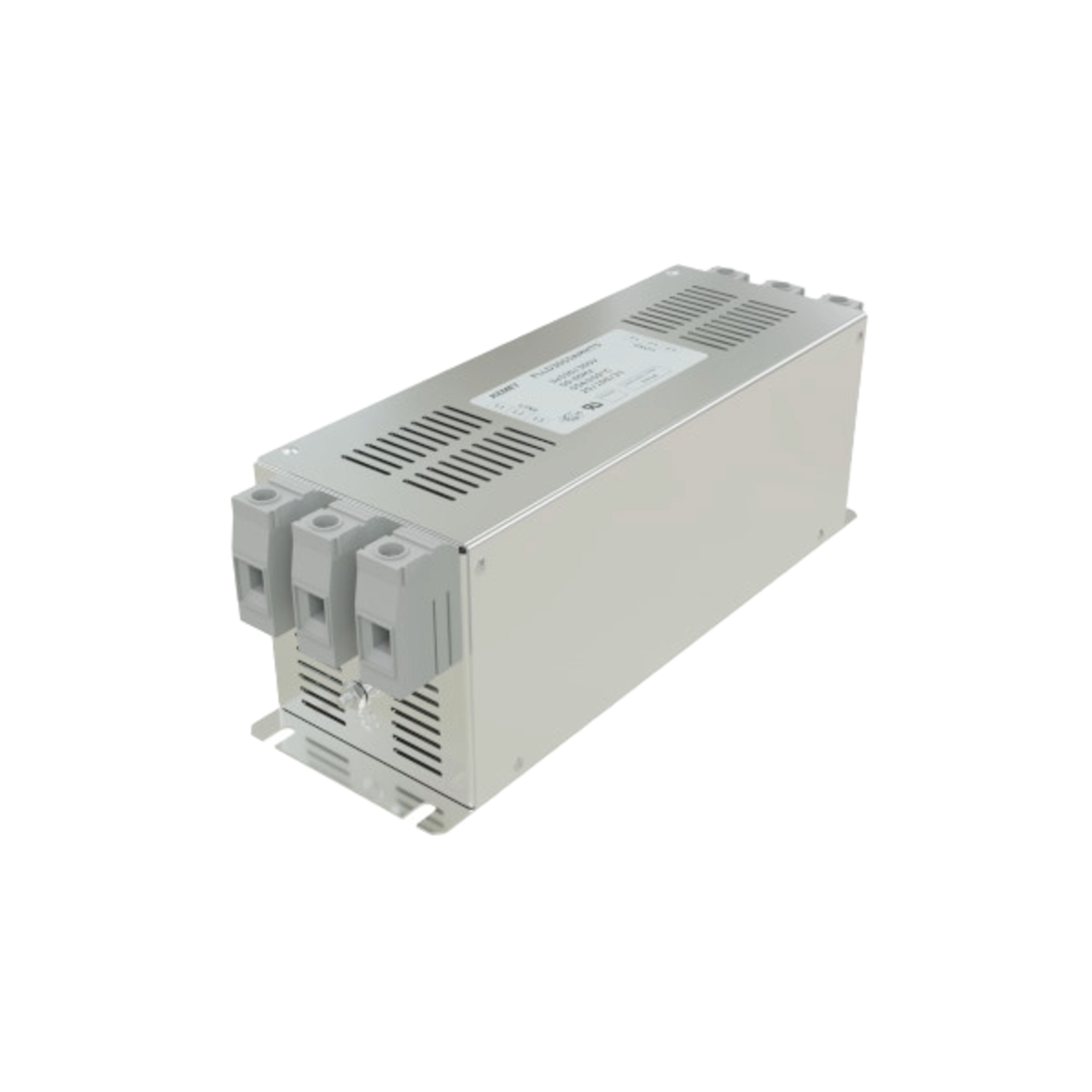

Kemet Three-phase filter FLLD3_ Chassis assembly 530V 30A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 21.12.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 9 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 9 or multiple of 9)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FLLD3_
- Type
- Three-phase filter
- Rated voltage at 50/60Hz
- 530 V
- Rated current
- 30 A
- Approvals
- DEMKO
UL - RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 240 mm
- Dimension: Width
- 50 mm
- Dimension: Height
- 85 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 100 °C
Technical features
- Rated voltage at 50/60Hz
- 530 V
- Dielectric strength, 2s, conductor/earth
- 3 kV DC
- Dielectric strength, 2s, conductor/conductor
- 2,25 kV DC
- Rated current
- 30 A
- Leakage current, max.
- 4,7 mA
- Climate category
- 25/100/21
Safety/Certifications
- Approvals
- DEMKO
- UL
- Standards
- IEC 60939-3; EN 60939-3; ANSI 60939-3-2016; UL 60939-3-2016
