C317C105K5R5TA

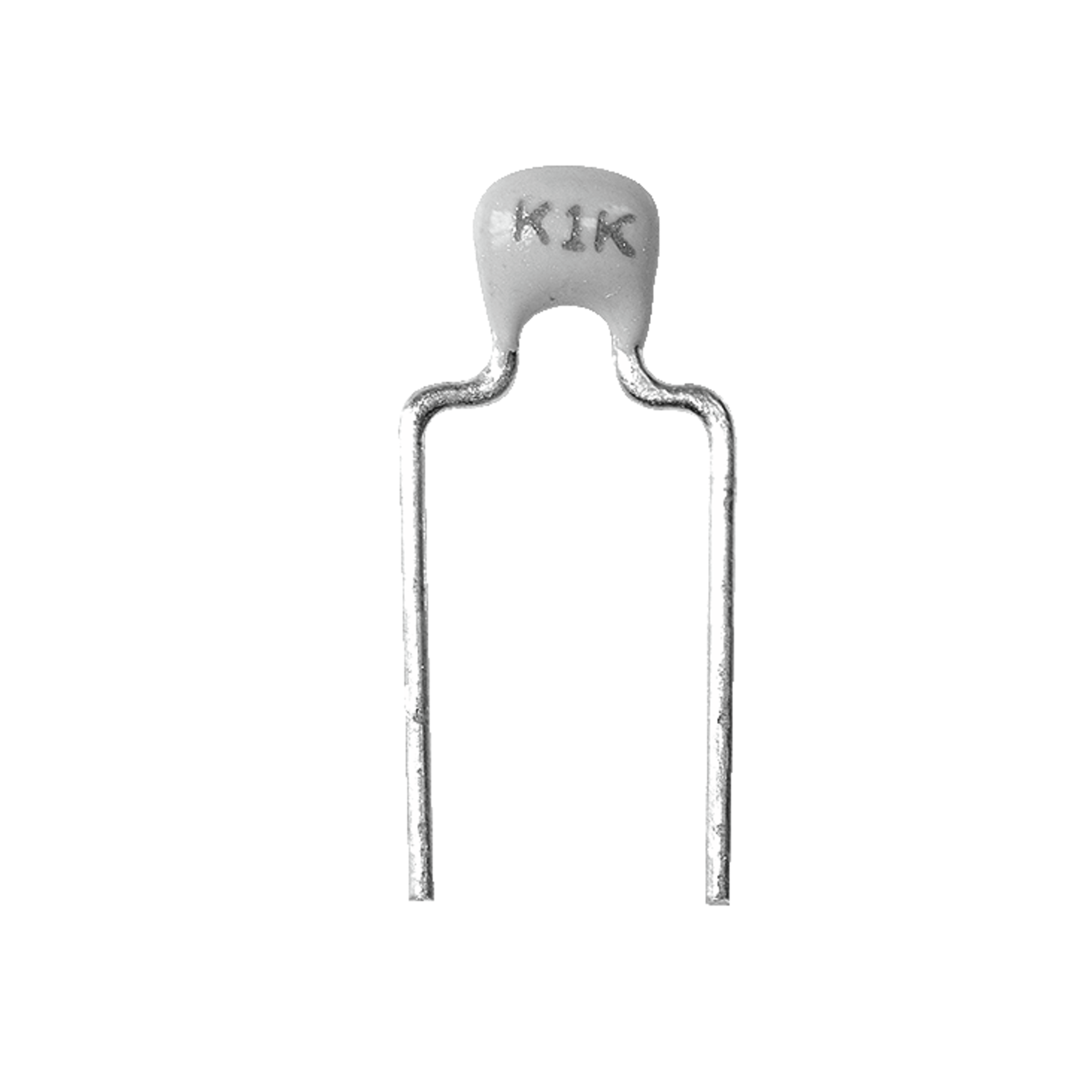

Kemet THT Ceramic multilayer capacitor C317C radial 63V 1000nF 10% X7R RM5,08mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.500 Pcs.
1.500 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Ceramic multilayer capacitor
- Ceramic type
- X7R
- Capacity
- 1.000 nF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 63 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 5.08 mm
- RoHS-Conform
Specifications
Open all

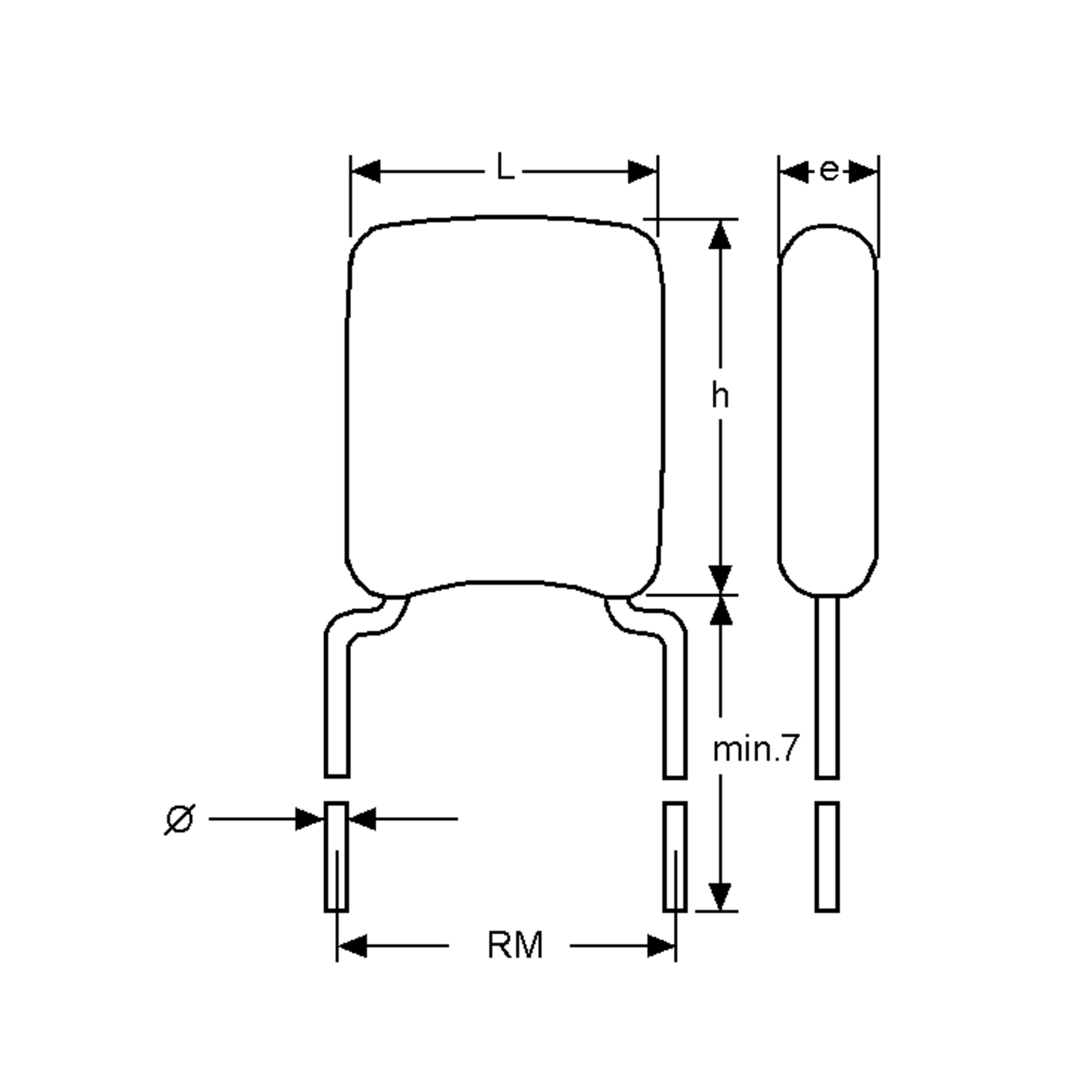

Dimensions and weights
- Dimension: Length
- 3.81 mm
- Dimension: Width
- 2.54 mm
- Dimension: Height
- 5.08 mm
- Wire diameter
- 0.51 mm
- Pitch
- 5.08 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
- Climate category IEC
- 55/125/56
Technical features
- Capacity
- 1.000 nF
- Capacity
- 1,000
- Capacity unit
- nF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 63 V
- Notice
- Die Kennzeichnung 50/63V entspricht der DIN-Norm und EN-Norm. Die eine Norm besagt für den Europäischen Martkt 63V und die andere für den Amerikanischen und den Fern Ost Markt 50V
- Class
- Insulation value in sec.
- 1,000 s
Safety/Certifications
- Standards
- CECC30701-045, UTE/NFC83132
