C317C101J1G5TA

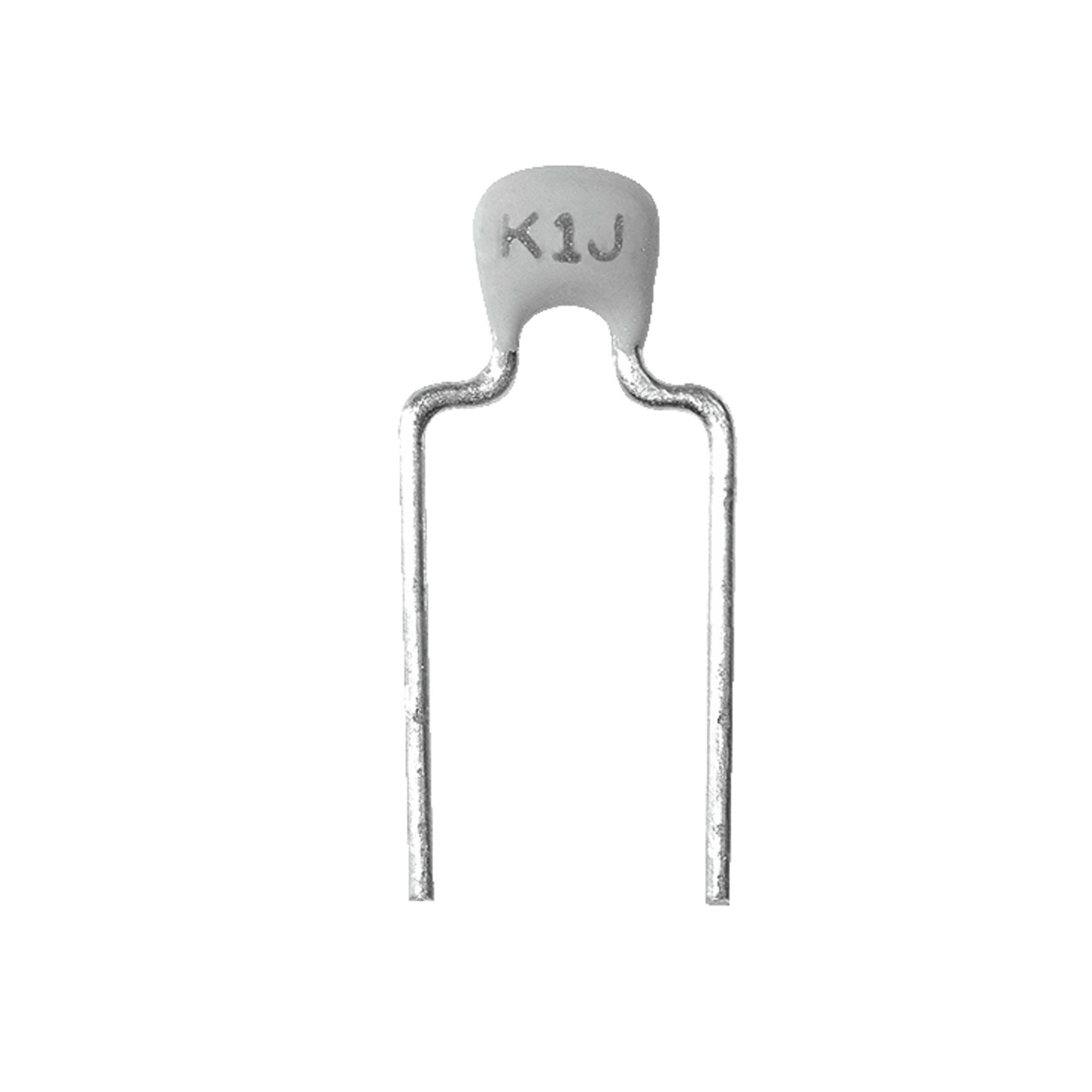

Kemet THT Ceramic multilayer capacitor C317C radial 100V 0,1nF 5% NPO RM5,08mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
7.500 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Ceramic multilayer capacitor
- Ceramic type
- NPO
- Capacity
- 0,1 nF
- Capacity tolerance
- 5 %
- Rated voltage DC
- 100 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 5.08 mm
- RoHS-Conform
Specifications
Open all

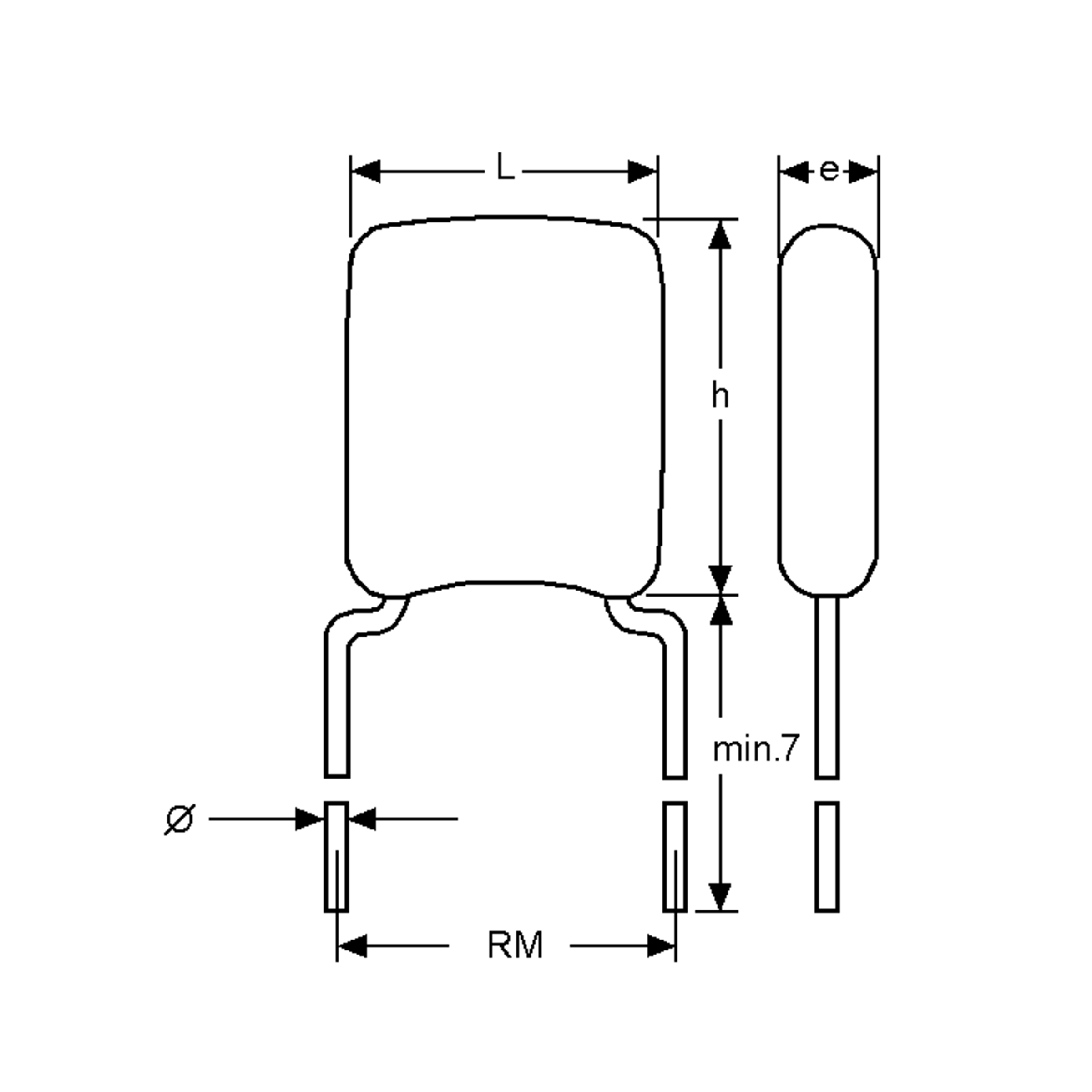

Dimensions and weights
- Dimension: Length
- 3.8 mm
- Dimension: Width
- 2.5 mm
- Dimension: Height
- 5 mm
- Wire diameter
- 0.5 mm
- Pitch
- 5.08 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
- Climate category IEC
- 55/125/56
Technical features
- Capacity
- 0,1 nF
- Capacity
- 0.1
- Capacity unit
- nF
- Capacity tolerance
- 5 %
- Rated voltage DC
- 100 V
- Class
- Insulation resistance
- 100 GOhm
Safety/Certifications
- Standards
- CECC30601-015, UTE/NFC83131
