C1812C334K5RAC7800
Kemet SMD Ceramic multilayer capacitor C1812C 50V 330nF X7R 1812 ClassII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3.050 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Ceramic multilayer capacitor
- Dielectric
- X7R
- Capacity
- 330 nF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 50 V
- Assembly Type
- SMD
- Housing
- 1812
- RoHS-Conform
Specifications
Open all

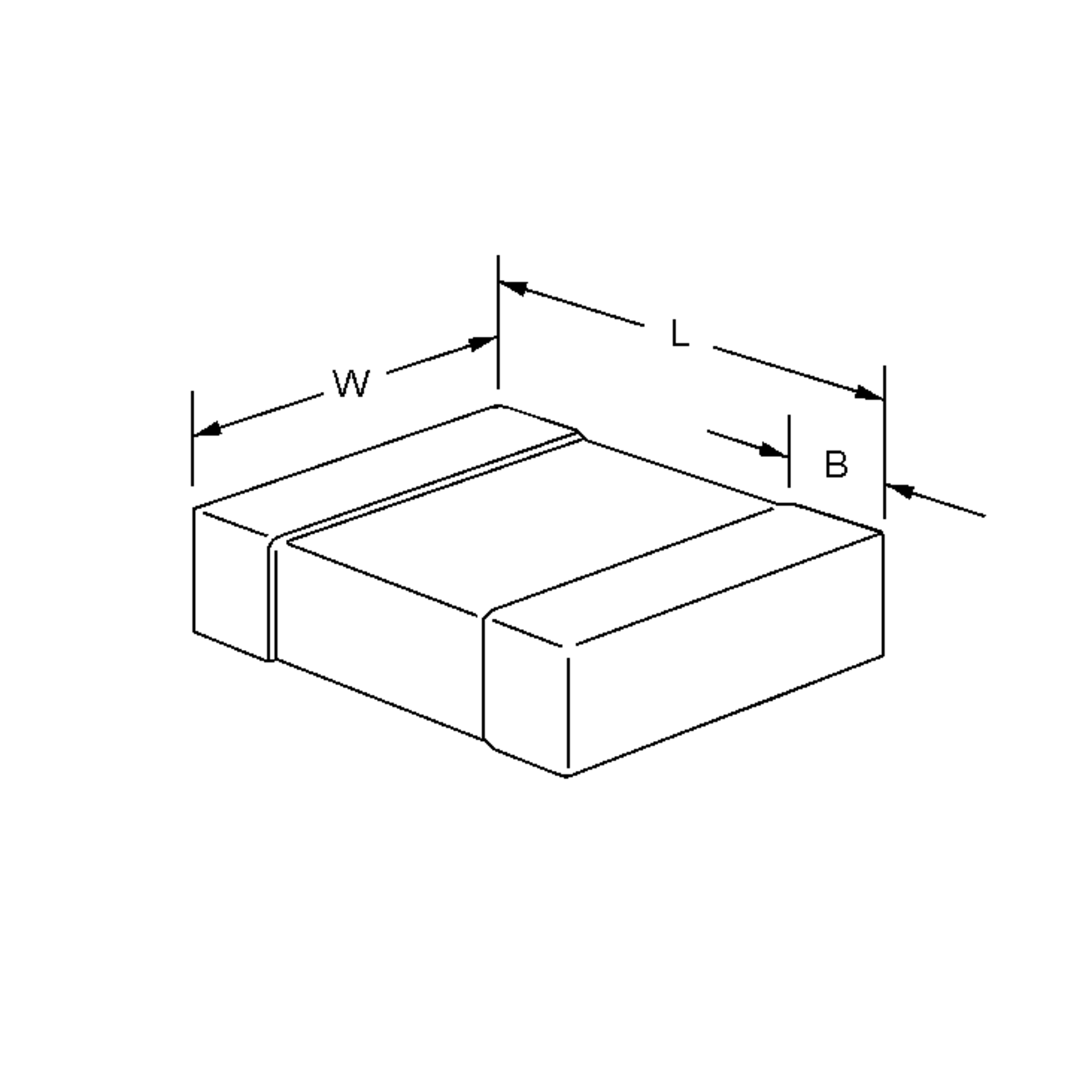

Dimensions and Weights
- Dimension: Length
- 4.5 mm
- Dimension: Width
- 3.2 mm
- Dimension: Height
- 1.6 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Capacity
- 330 nF
- Capacity
- 330
- Capacity unit
- nF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 50 V
- Class
- Class II
Documents
C1812C334K5RACTU.pdf
