C1812C102KGRAC7800
Kemet SMD Ceramic multilayer capacitor C1812C 2.000V 1000pF X7R 1812 ClassII Low ESR
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.600 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Ceramic multilayer capacitor
- Dielectric
- X7R
- Capacity
- 1.000 pF
- Kapazitätstoleranz [%]
- ±10
- Rated voltage DC
- 2,000 V
- Assembly Type
- SMD
- Housing
- 1812
- RoHS-Conform
Specifications
Open all

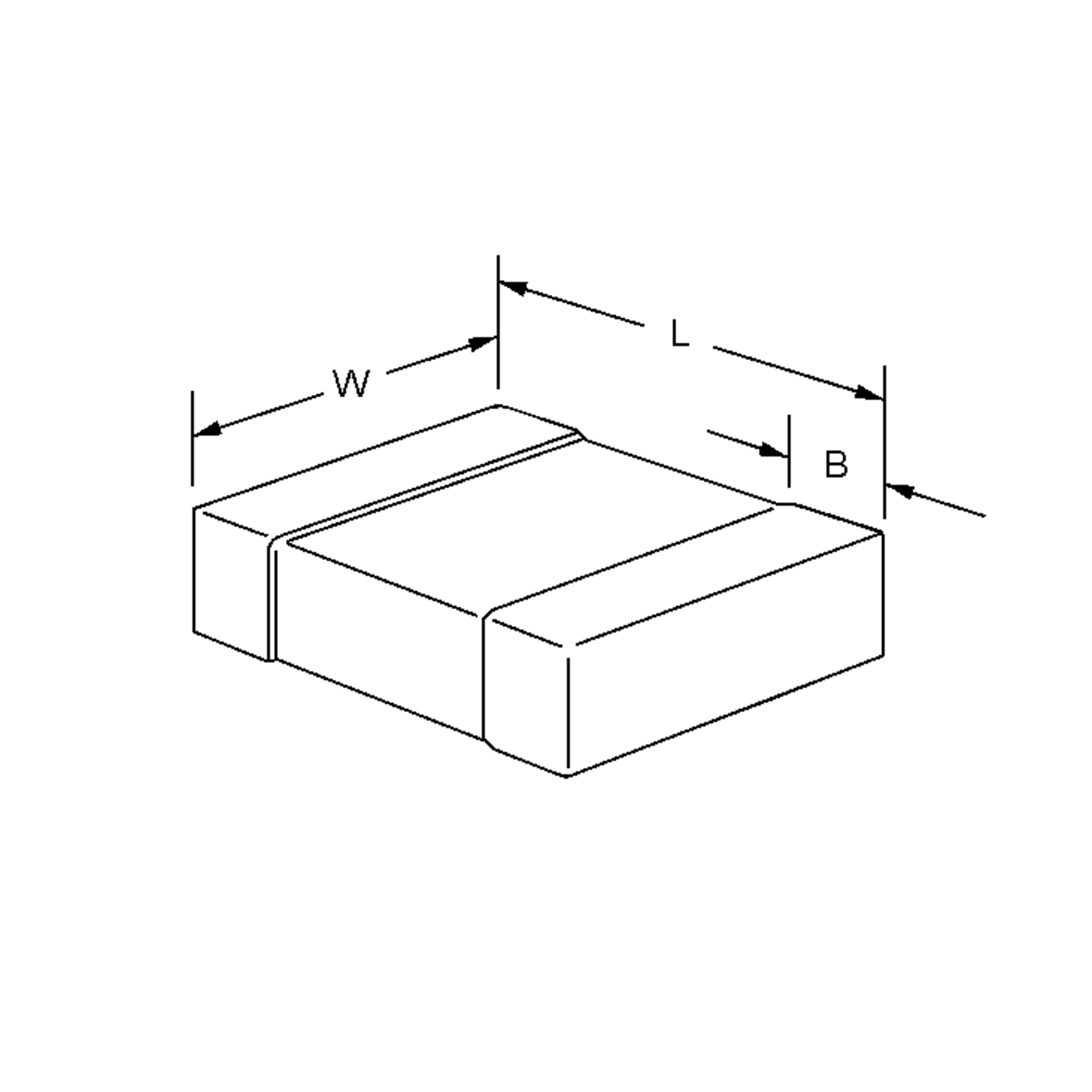

Dimensions and Weights
- Dimension: Length
- 4.5 mm
- Dimension: Width
- 3.2 mm
- Dimension: Height
- 0.6 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Capacity
- 1.000 pF
- Capacity
- 1,000
- Capacity unit
- pF
- Kapazitätstoleranz [%]
- ±10
- Rated voltage DC
- 2,000 V
- Class
- Class II
