C0201C100J3GAC7867
Kemet SMD Ceramic multilayer capacitor C0201C 25V 10pF COG (NPO) 0201 ClassI Low ESR
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 15000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 15000 or multiple of 15000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Ceramic multilayer capacitor
- Dielectric
- COG (NPO)
- Capacity
- 10 pF
- Capacity Tolerance
- ±5%
- Rated voltage DC
- 25 V
- Assembly Type
- SMD
- Housing
- 0201
- RoHS-Conform
Specifications
Open all

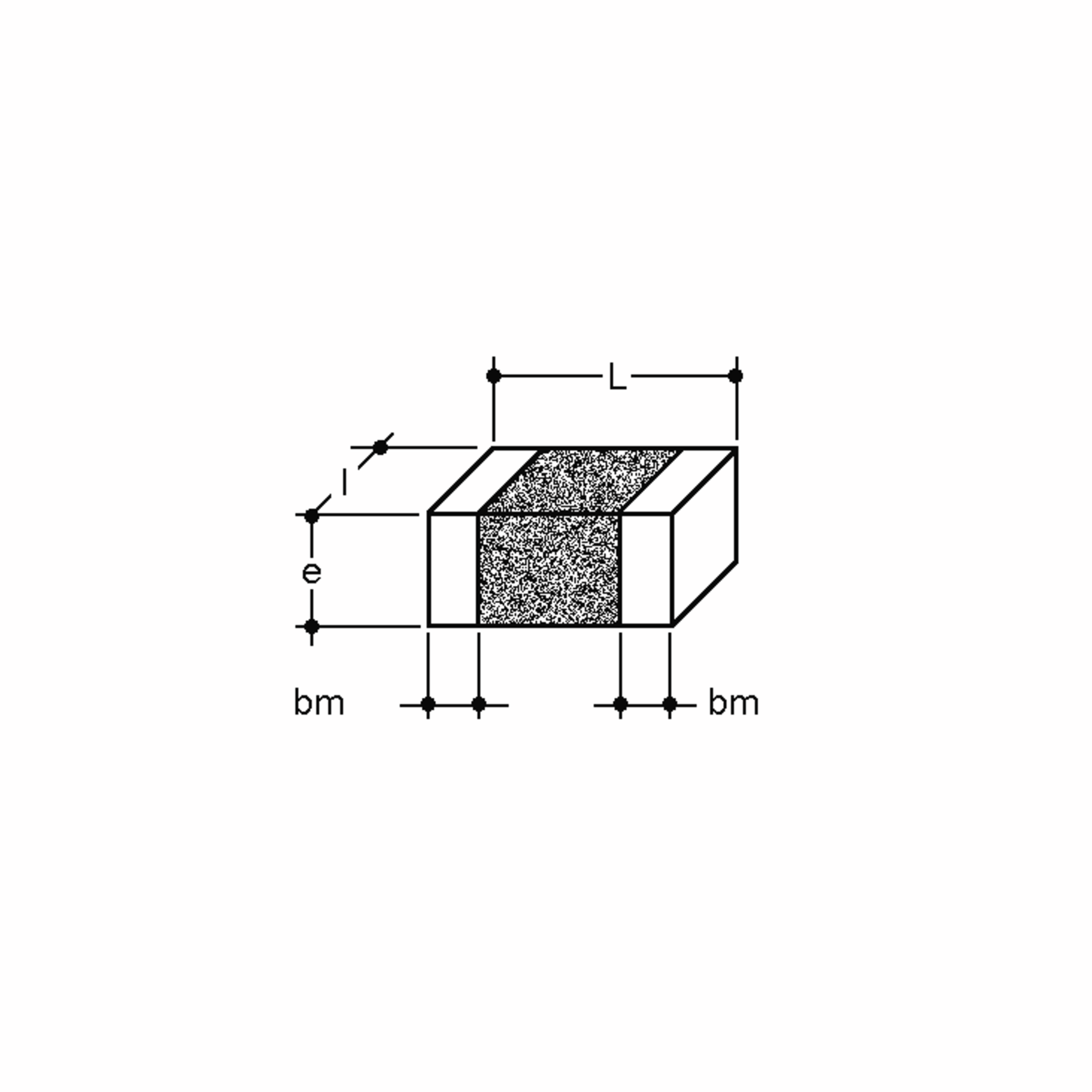

Dimensions and Weights
- Dimension: Length
- 0.6 mm
- Dimension: Width
- 0.3 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Capacity
- 10 pF
- Capacity
- 10
- Capacity unit
- pF
- Capacity Tolerance
- ±5%
- Rated voltage DC
- 25 V
- Class
- Class I
- Insulation resistance
- 100 GOhm
