794/SW

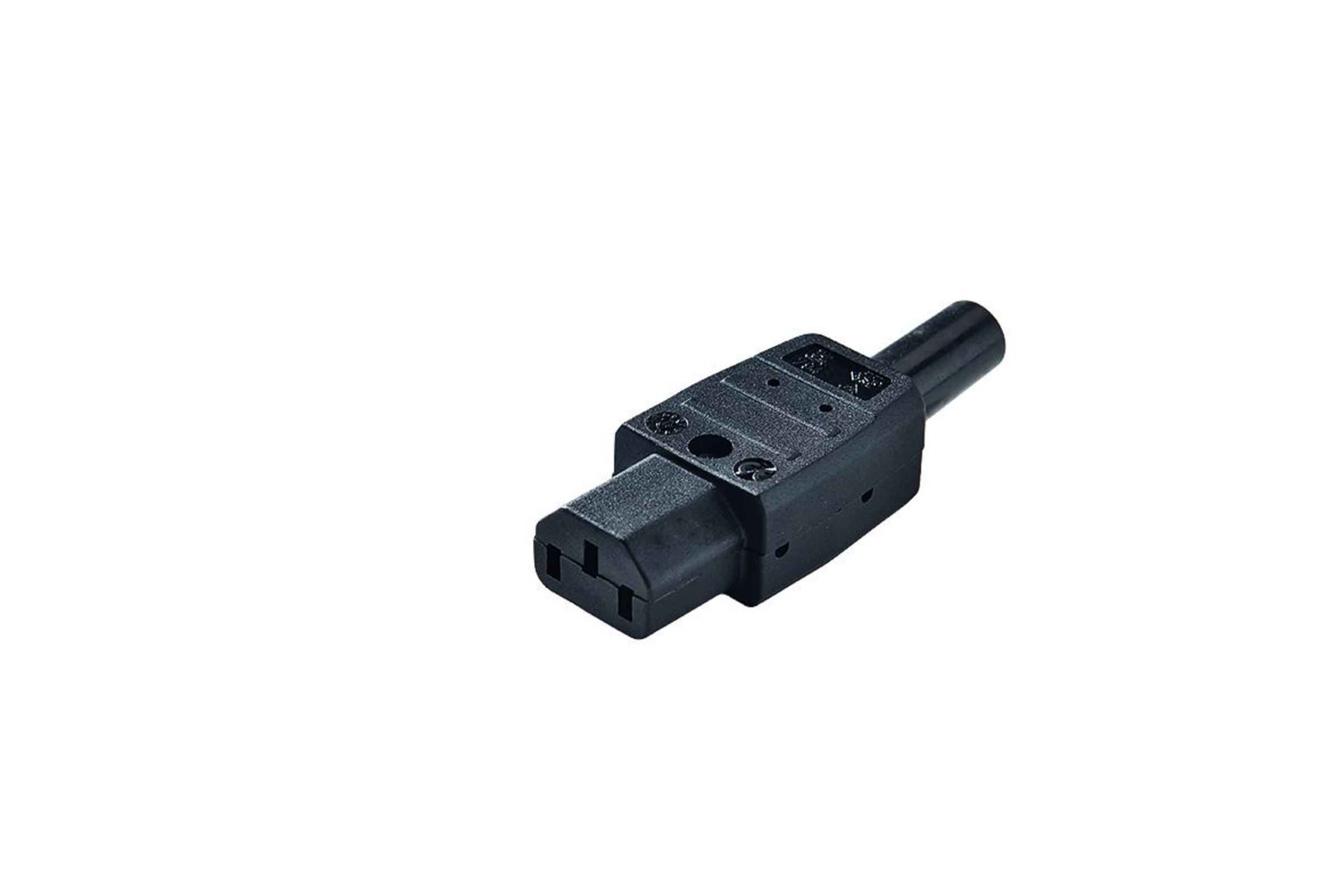

Kaiser IEC socket 794 Cable C13 3 Pole IP20 Screw Thermoplast (TP) 10A 250VAC 70°C
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
7.025 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- IEC socket
- Connector Contact
- Screw
- Series
- 794
- Colour
- black
- Housing material
- Thermoplast (TP)
- Pin Temperature
- 70 °C
- Housing
- straight
- Design
- Cable
- Number of poles
- 3
- Contact Type
- C13
- Fastening
- Screw mounting
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- straight
- IP Protection Class Front Side
- IP20
- Rated voltage AC
- 250 V AC
- Rated current
- 10 A
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 85 mm
- Dimension: Width
- 30 mm
- Dimension: Height
- 20 mm
- Weight
- 23 g
Operating conditions
- Pin Temperature
- 70 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Housing material
- Thermoplast (TP)
Safety/Certifications
- Approvals
- ENEC 10
- VDE
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP20
- IP Class Connection Side
- IP20
