793/SW

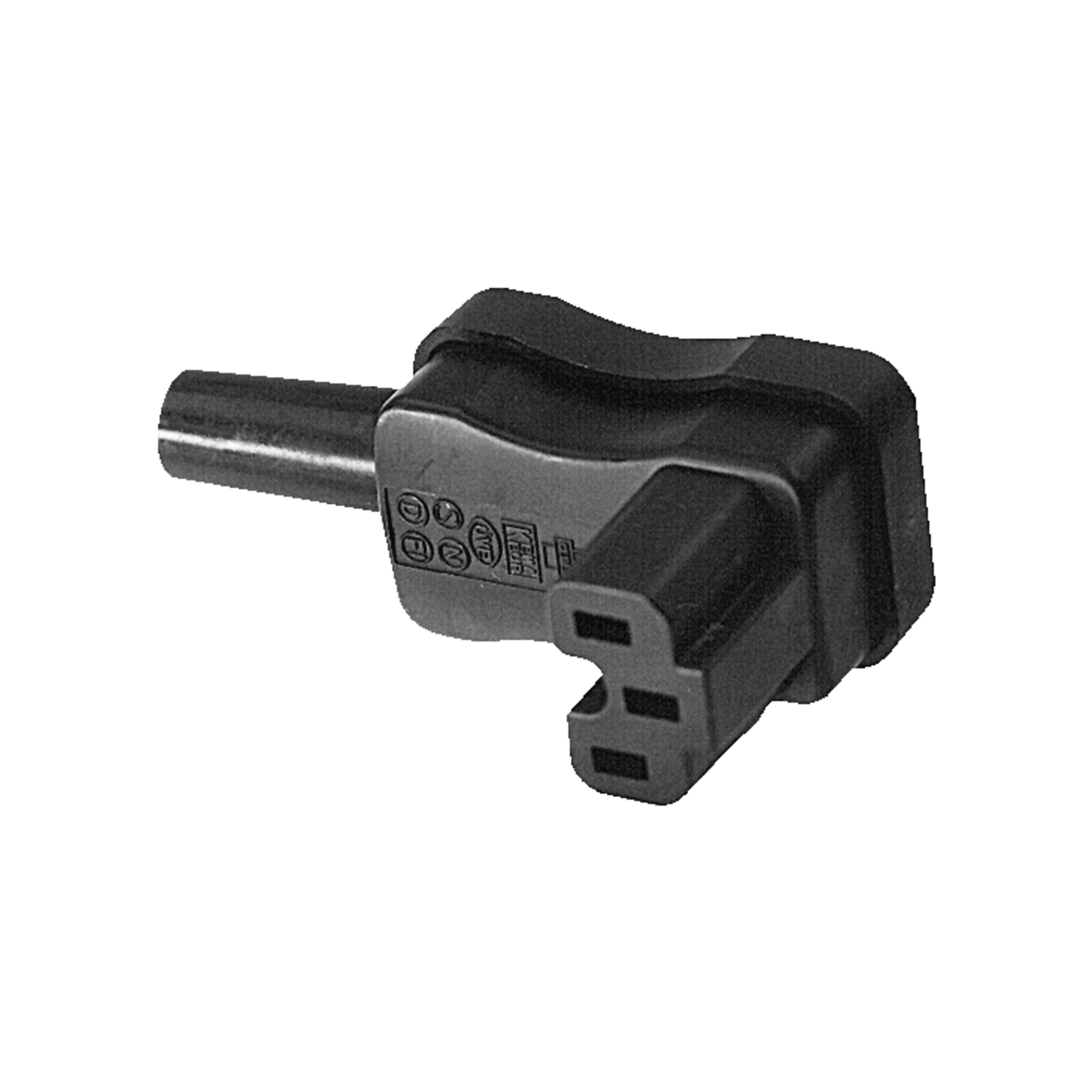

Kaiser Hot appliance socket 793 Cable C15 3 Pole 10A 250VAC 155°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 793
- Type
- Hot appliance socket
- Pin Temperature
- 155 °C
- Colour
- black
- Number of poles
- 3
- Dimension: Length
- 73.5 mm
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
- Dimension: Width
- 29 mm
- Dimension: Height
- 40 mm
- Approvals
- ENEC 10
VDE - RoHS-Conform
Specifications
Open all

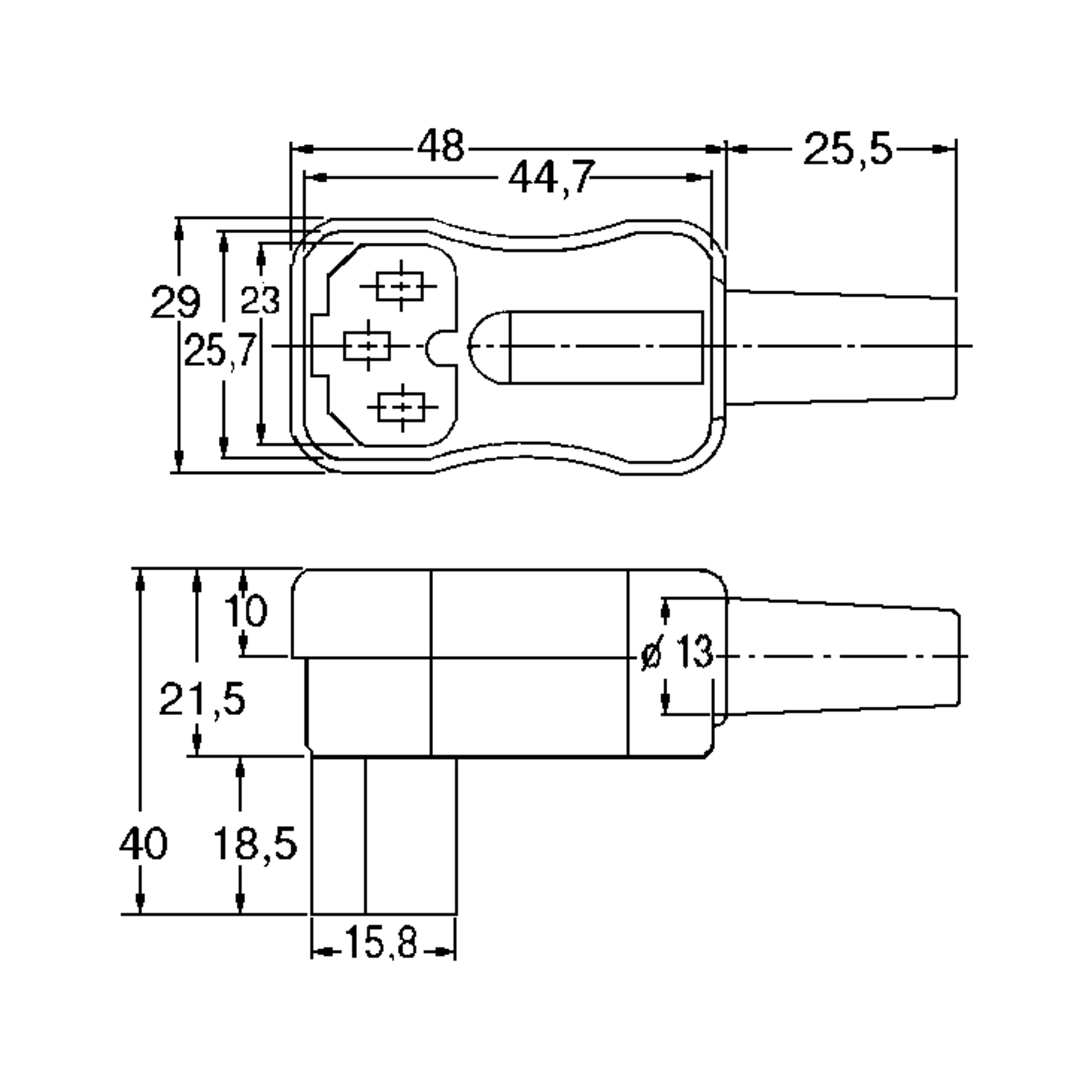

Dimensions and Weights
- Dimension: Length
- 73.5 mm
- Dimension: Width
- 29 mm
- Dimension: Height
- 40 mm
- Stripping length, max.
- 6 mm
Operating conditions
- Pin Temperature
- 155 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
Safety/Certifications
- Approvals
- ENEC 10
- VDE
