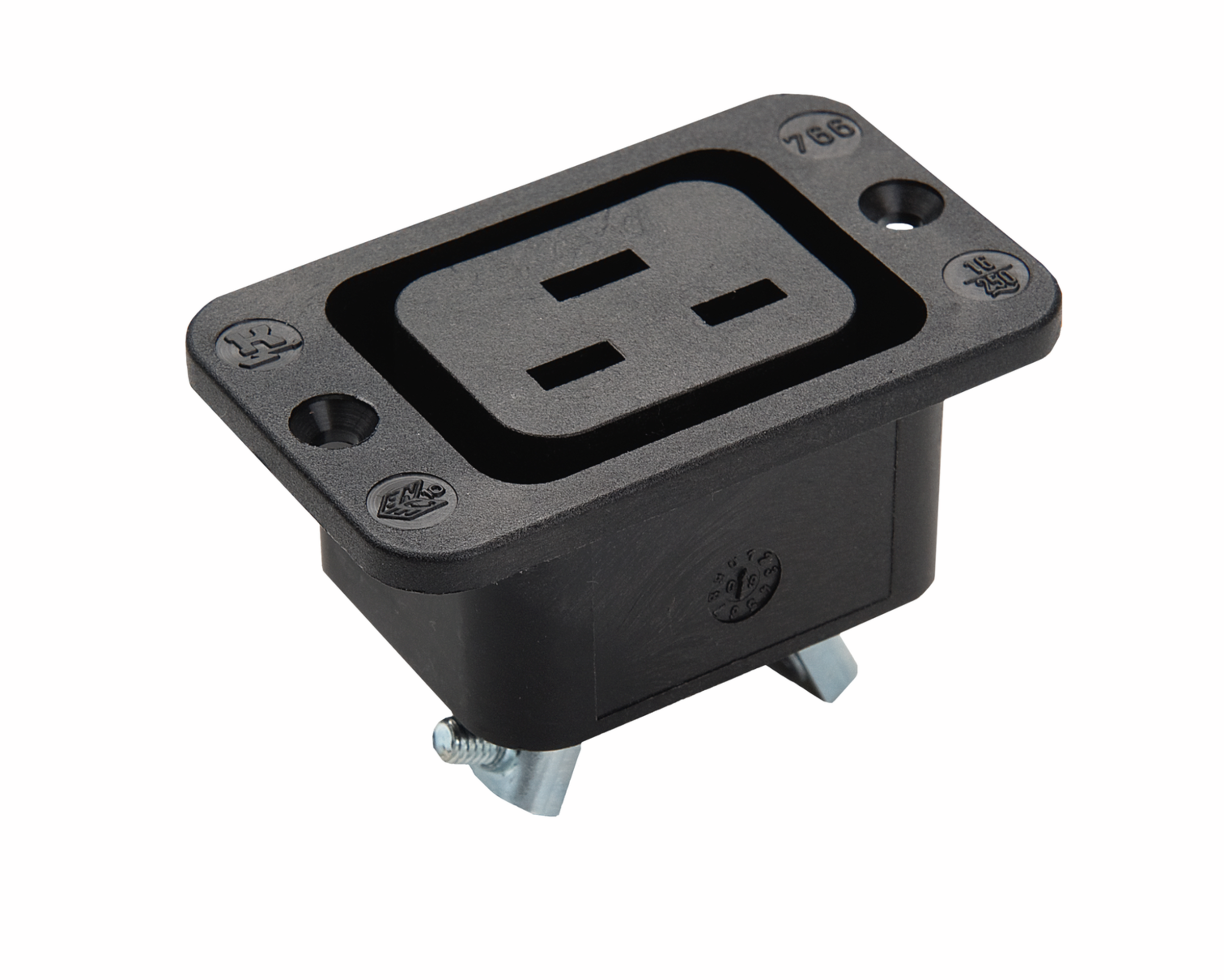

766/SW

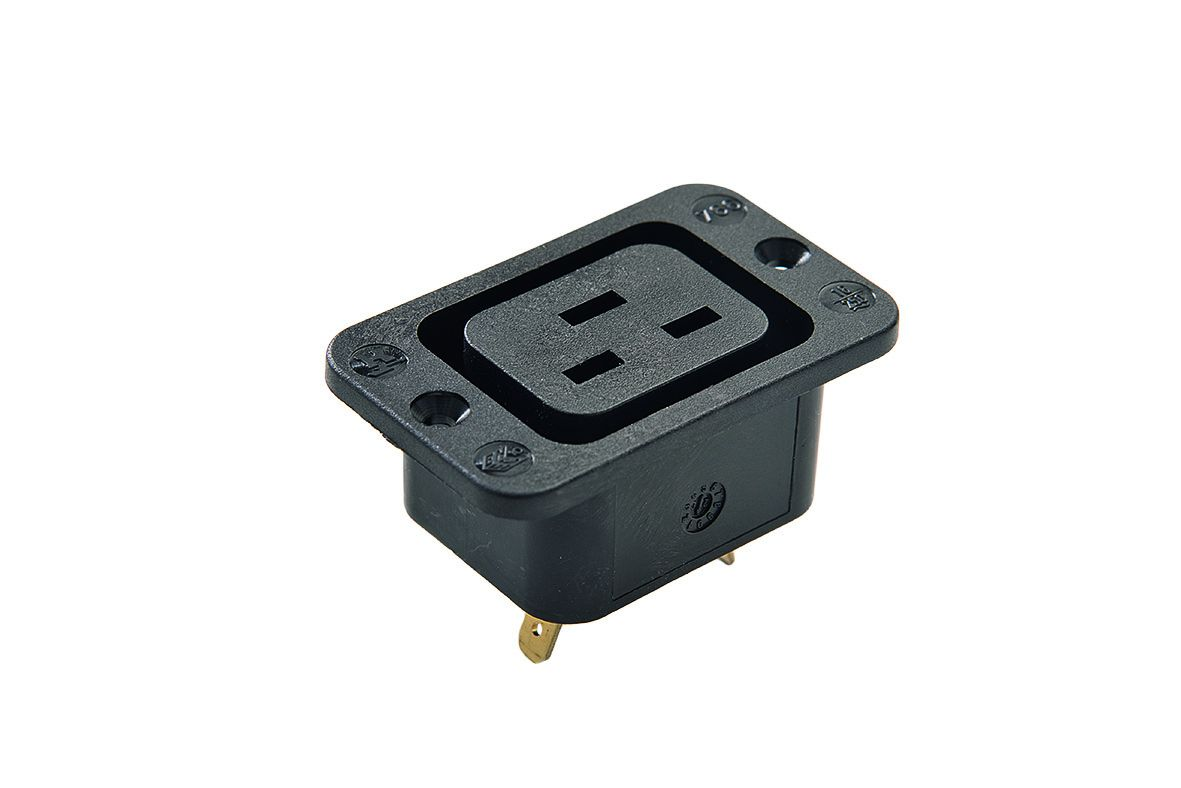

Kaiser Built-in cold appliance socket 766 Panel C19 3 Pole IP20 Screw Polyamide (PA) 6 16A 250VAC
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
25 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Built-in cold appliance socket
- Connector Contact
- Screw
- Series
- 766
- Colour
- black
- Housing material
- Polyamide (PA) 6
- Design
- Panel
- Number of poles
- 3
- Standards
- IEC 60320-1
IEC 60320-3 - Contact Type
- C19
- Fastening
- Screw mounting
- Locking
- no
- Alignment
- straight
- IP Protection Class Front Side
- IP20
- Operating Temperature Max.
- 40 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 16 A
- Operating Temperature Min.
- -5 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 54 mm
- Dimension: Height
- 34.6 mm
- Dimension: Depth
- 34 mm
- Weight
- 26 g
Operating conditions
- Operating Temperature Min.
- -5 °C
- Operating Temperature Max.
- 40 °C
Technical Features
- Rated current
- 16 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Housing material
- Polyamide (PA) 6
Safety/Certifications
- Approvals
- CE
- ENEC 10
- VDE
- Standards
- IEC 60320-1
- IEC 60320-3
- IP Protection Class Front Side
- IP20
- IP Class Connection Side
- IP20
Documents
Kaiser-Katalog-Web-HQ.pdf
