749/SW

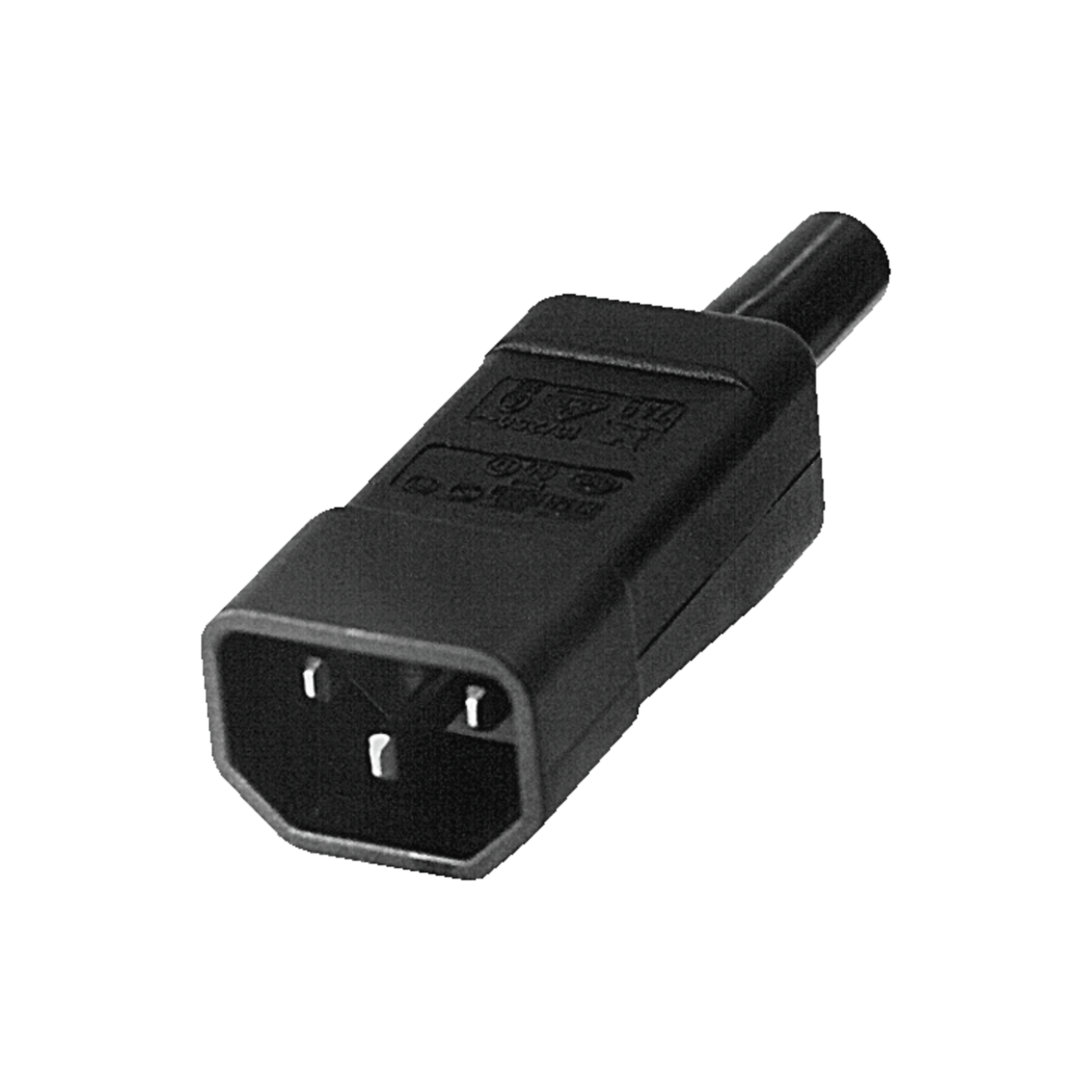

Kaiser IEC plug 749 Cable E 3 Pole Polyamide (PA) 6 10A 250VAC 70°C
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3.950 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- IEC plug
- Series
- 749
- Colour
- black
- Housing material
- Polyamide (PA) 6
- Pin Temperature
- 70 °C
- Housing
- straight
- Design
- Cable
- Insulating body
- Polyamide (PA)
- Number of poles
- 3
- Standards
- EN 60320-2-2
- Contact Type
- E
- Locking
- no
- Alignment
- straight
- Rated voltage AC
- 250 V AC
- Rated current
- 10 A
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 85 mm
- Dimension: Width
- 28.5 mm
- Dimension: Height
- 21 mm
- Conductor cross-section, min.
- 1 mm²
- Conductor cross-section, max.
- 1.5 mm²
Operating conditions
- Pin Temperature
- 70 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Housing material
- Polyamide (PA) 6
- Insulating body
- Polyamide (PA)
Safety/Certifications
- Approvals
- ENEC 10
- VDE
- Standards
- EN 60320-2-2
