43R04.3121-150

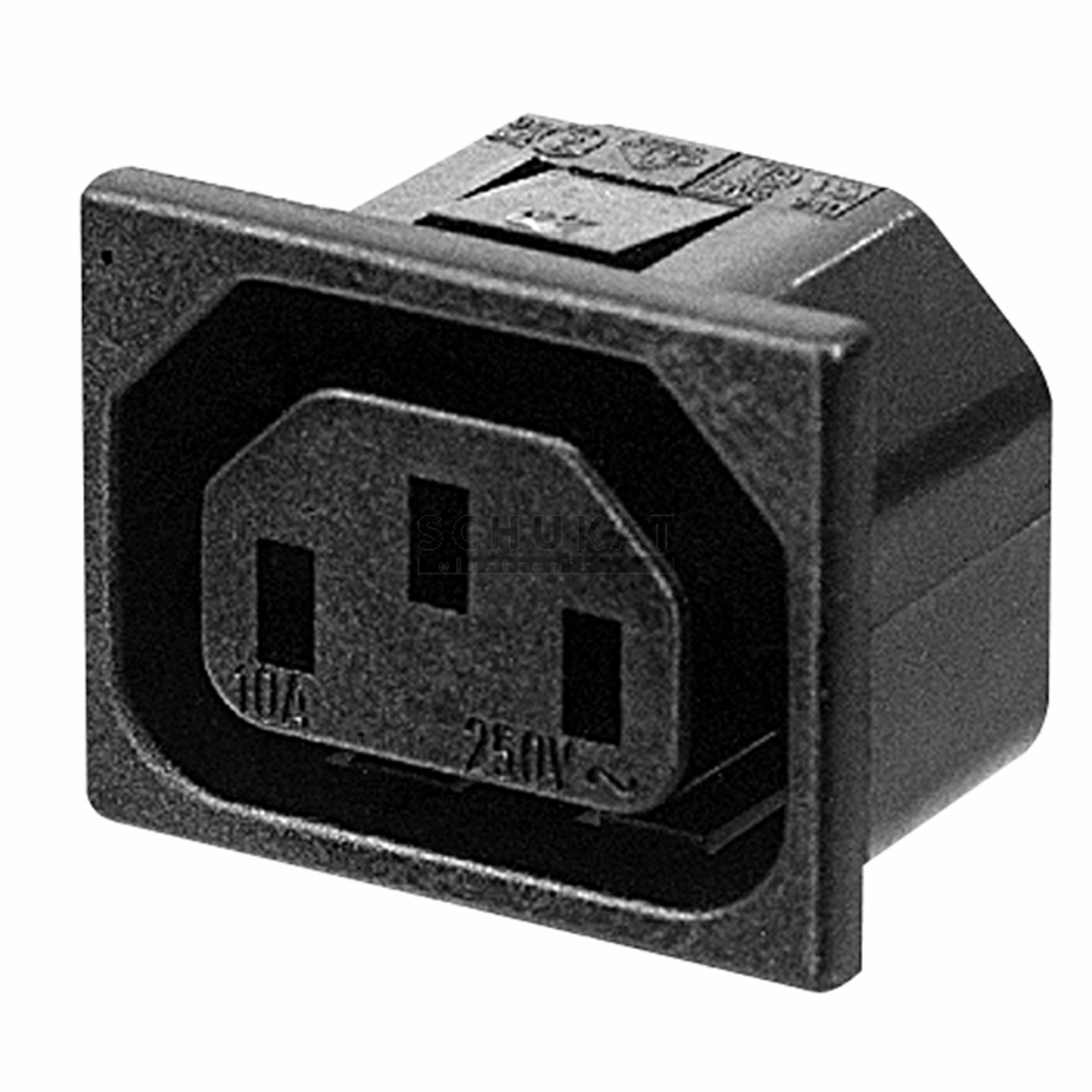

K+B Built-in cold appliance socket 43R04 Panel F 3 Pole Solder 10A 250VAC 70°C

Manufacturer Part No.
43R04.3121-150
Schukat Part No.
GSD4SI
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

210 Pcs. in stock

Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
43R04
Type
Built-in cold appliance socket
Housing
rectangular
Pin Temperature
70 °C
Colour
black
Number of poles
3

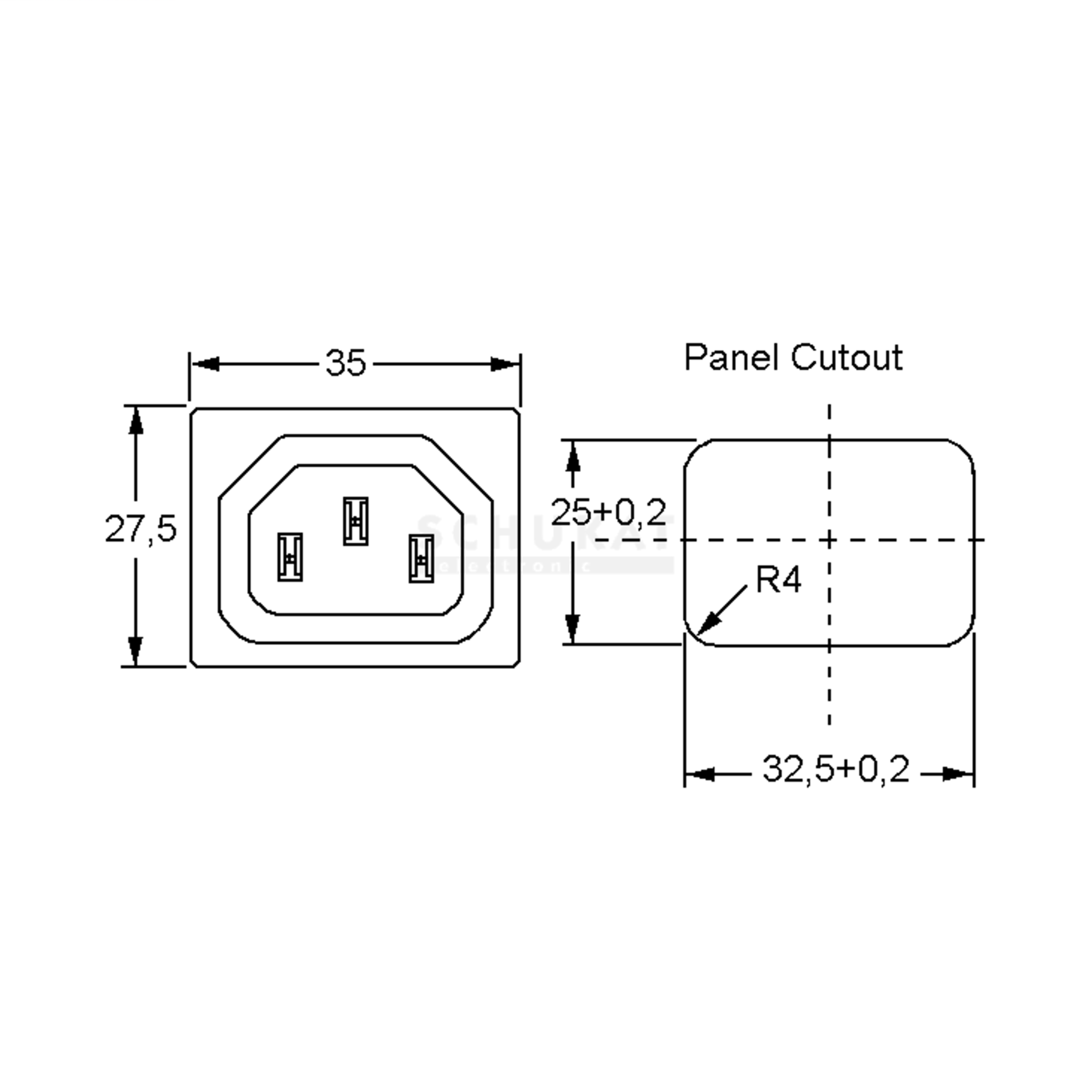

Dimension: Length
35 mm
Rated current
10 A
Rated voltage AC
250 V AC
Dimension: Width
27.5 mm
Dimension: Height
24.5 mm
Standards
IEC 60320-1
Approvals
CE
UL
VDE
cURus
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • K+B
Type
  • Built-in cold appliance socket
Series
  • 43R04
Product group
  • F5581
Housing
  • rectangular
Contact Type
  • Socket
Fastening
  • Snap-In
Connection
  • Solder connection
Connector Contact
  • Solder
Number of poles
  • 3
Contact Type
  • F
Type ( axial, radial )
  • Panel
Protective conductor
Colour
  • black
Locking
  • no
Alternative Part Number
  • 43R043121150

Dimensions and Weights

Dimension: Length
  • 35 mm
Dimension: Width
  • 27.5 mm
Dimension: Height
  • 24.5 mm
Height (incl. pins)
  • 33 mm
Board Strength max.
  • 1.5 mm

Operating conditions

Pin Temperature
  • 70 °C

Technical Features

Rated current
  • 10 A
Rated voltage AC
  • 250 V AC

Safety/Certifications

Approvals
  • CE
  • UL
  • VDE
  • cURus
Standards
  • IEC 60320-1
