42R04.1311

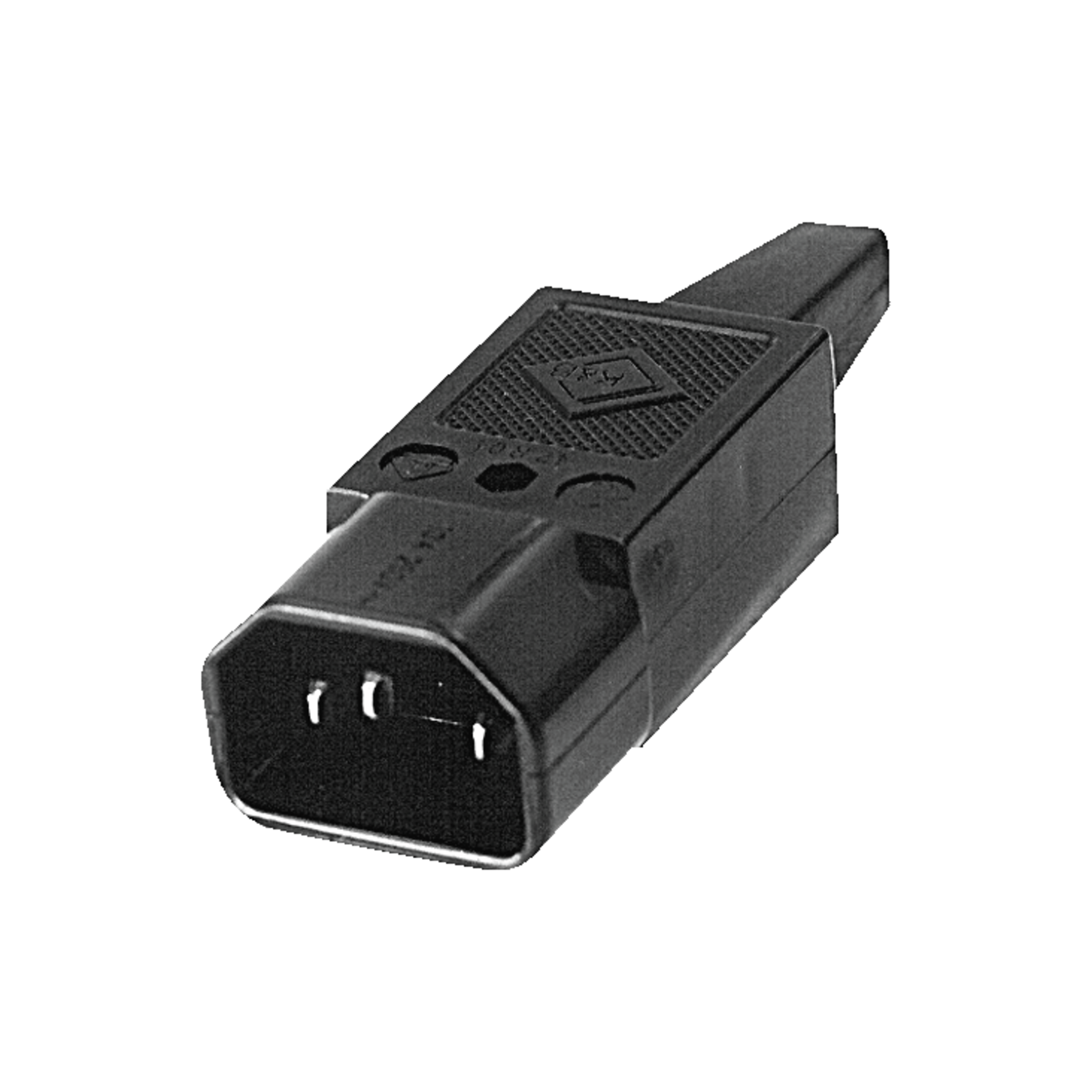

K+B IEC plug 43R04 Cable E 3 Pole 10A 250VAC 70°C
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.240 Pcs. in stock
Next Stock Receipt
Week 19/2026
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- IEC plug
- Series
- 43R04
- Colour
- black
- Pin Temperature
- 70 °C
- Housing
- straight
- Design
- Cable
- Number of poles
- 3
- Standards
- IEC 60320-1
- Contact Type
- E
- Locking
- no
- Alignment
- straight
- Rated voltage AC
- 250 V AC
- Rated current
- 10 A
- RoHS-Conform
Specifications
Open all

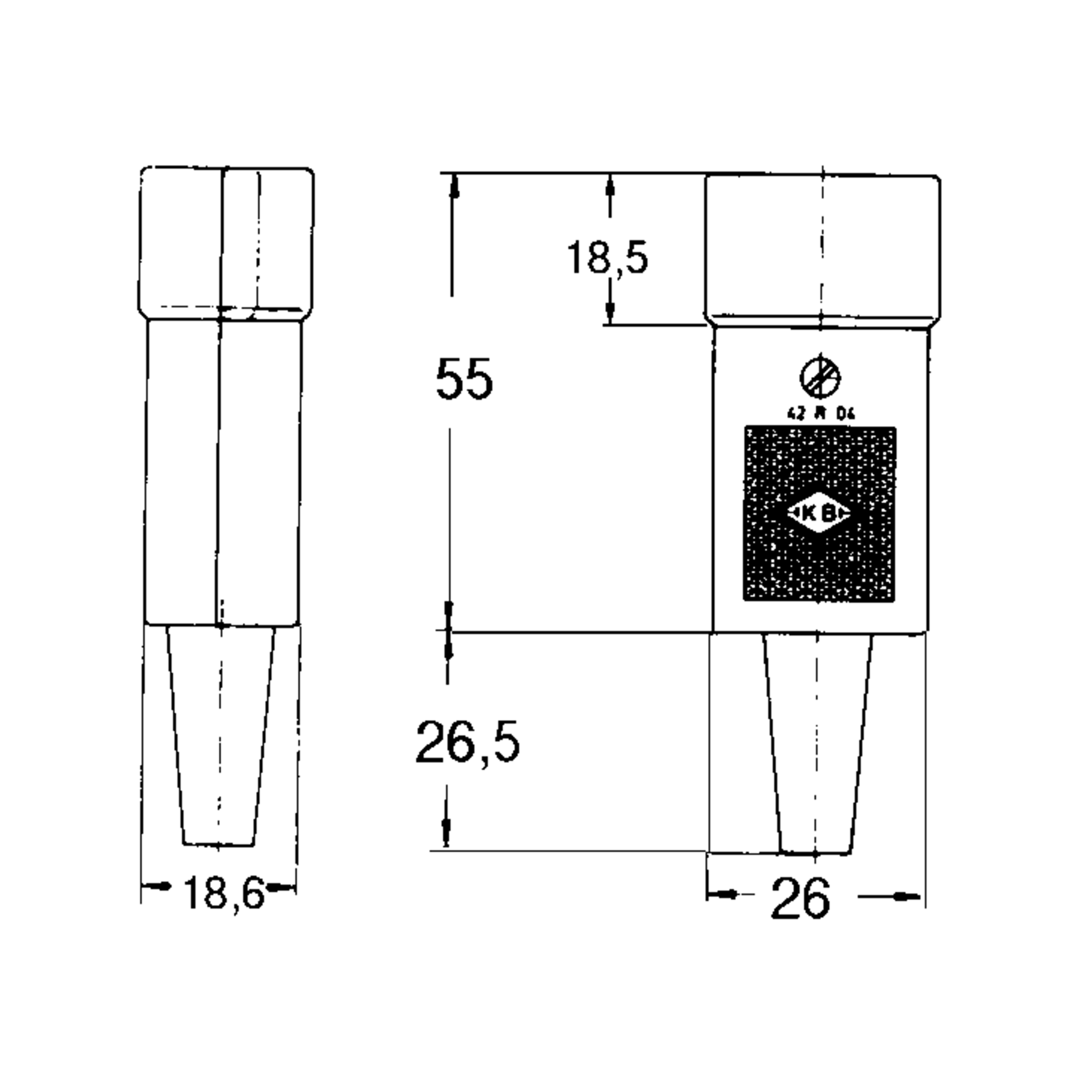

Dimensions and Weights
- Dimension: Length
- 81.5 mm
- Dimension: Width
- 29 mm
- Dimension: Height
- 21 mm
- Stripping length, max.
- 6 mm
Operating conditions
- Pin Temperature
- 70 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
Safety/Certifications
- Approvals
- CE
- UL
- VDE
- cURus
- Standards
- IEC 60320-1
