JVZ25N821K11YU4

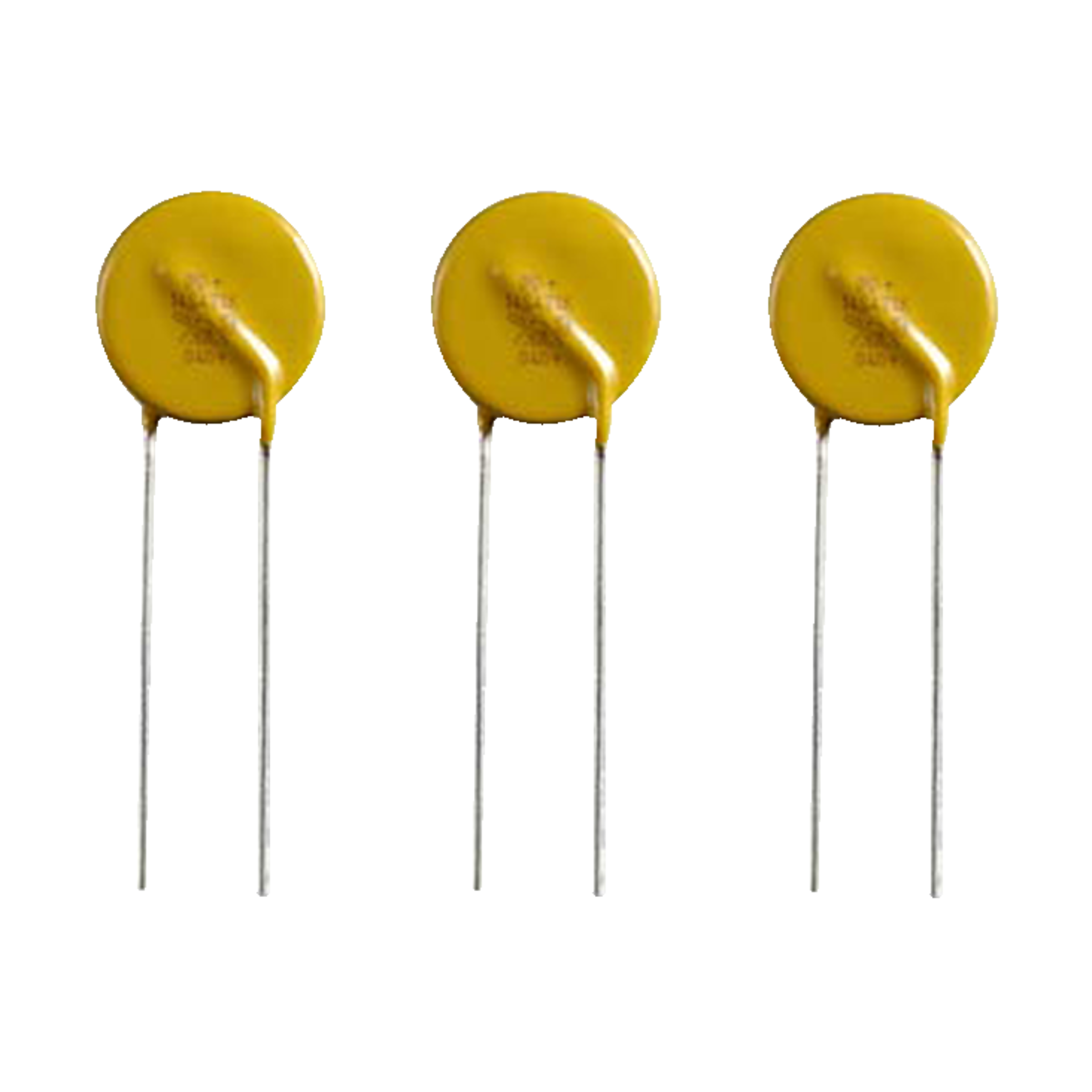

Joyin Metal oxide varistor JVZ_N 820V 20.000A Ø25mm P10mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
9.900 Pcs.
9.900 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 300 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 9900 or multiple of 9900)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated power
- 1.2 W
- Pitch
- 10 mm
- RoHS-Conform
Specifications
Open all

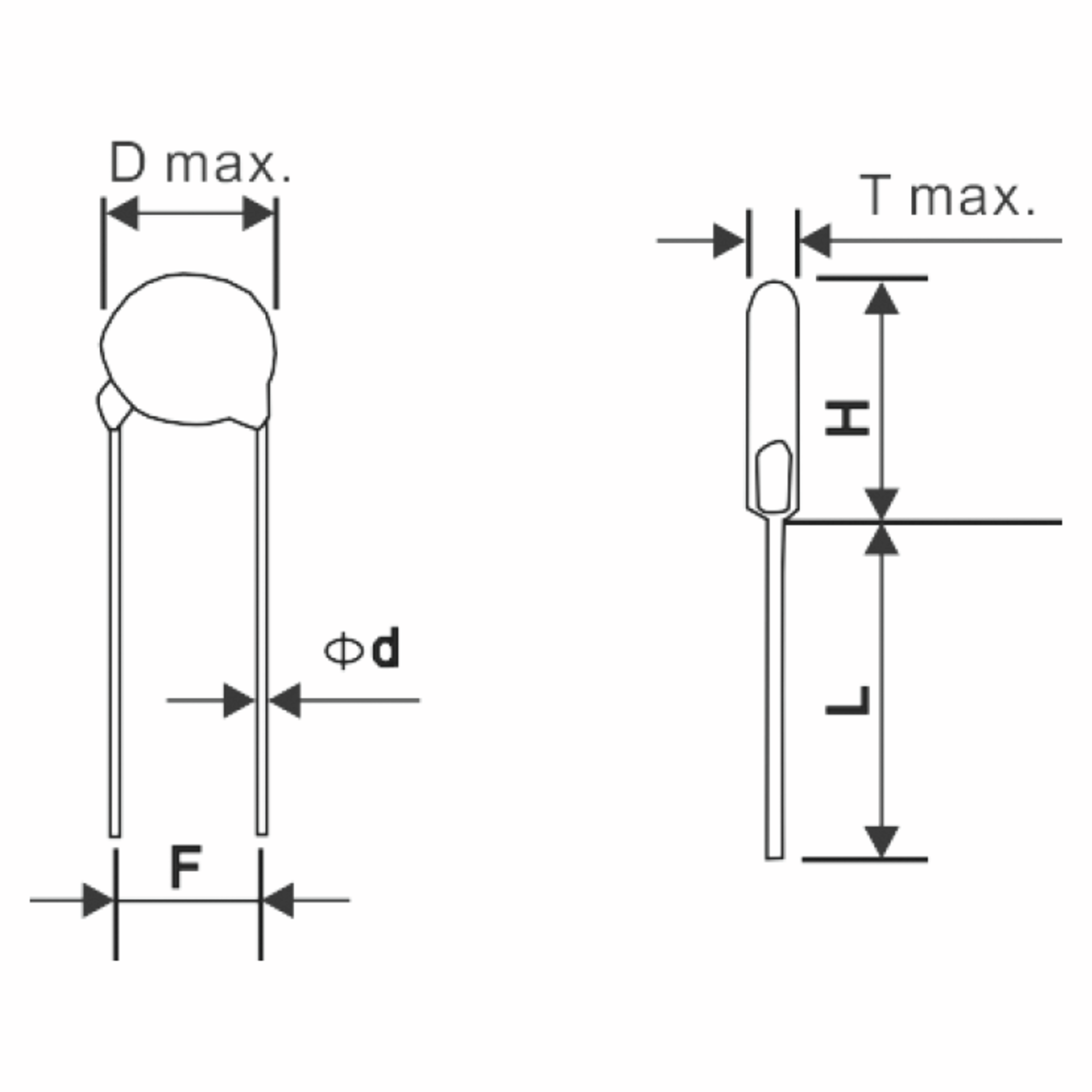

Dimensions and weights
- Dimension: Width
- 9.1 mm
- Dimension: Height
- 56 mm
- Pitch
- 10 mm
- Diameter, resistor body
- 25 mm
- Diameter, connecting wire
- 1 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Resistance value
- 0
- Rated power
- 1.2 W
- Max. Operating voltage (DC)
- 670 V DC
- Max. Operating voltage (AC)
- 510 V AC
- Varistor voltage (@1mA)
- 820 V
- Surge current
- 20,000 A
- Power consumption
- 570 J
Safety/Certifications
- Approvals
- CQC
- UL
- VDE
- cUL
