JTK225M100T1AMC11L

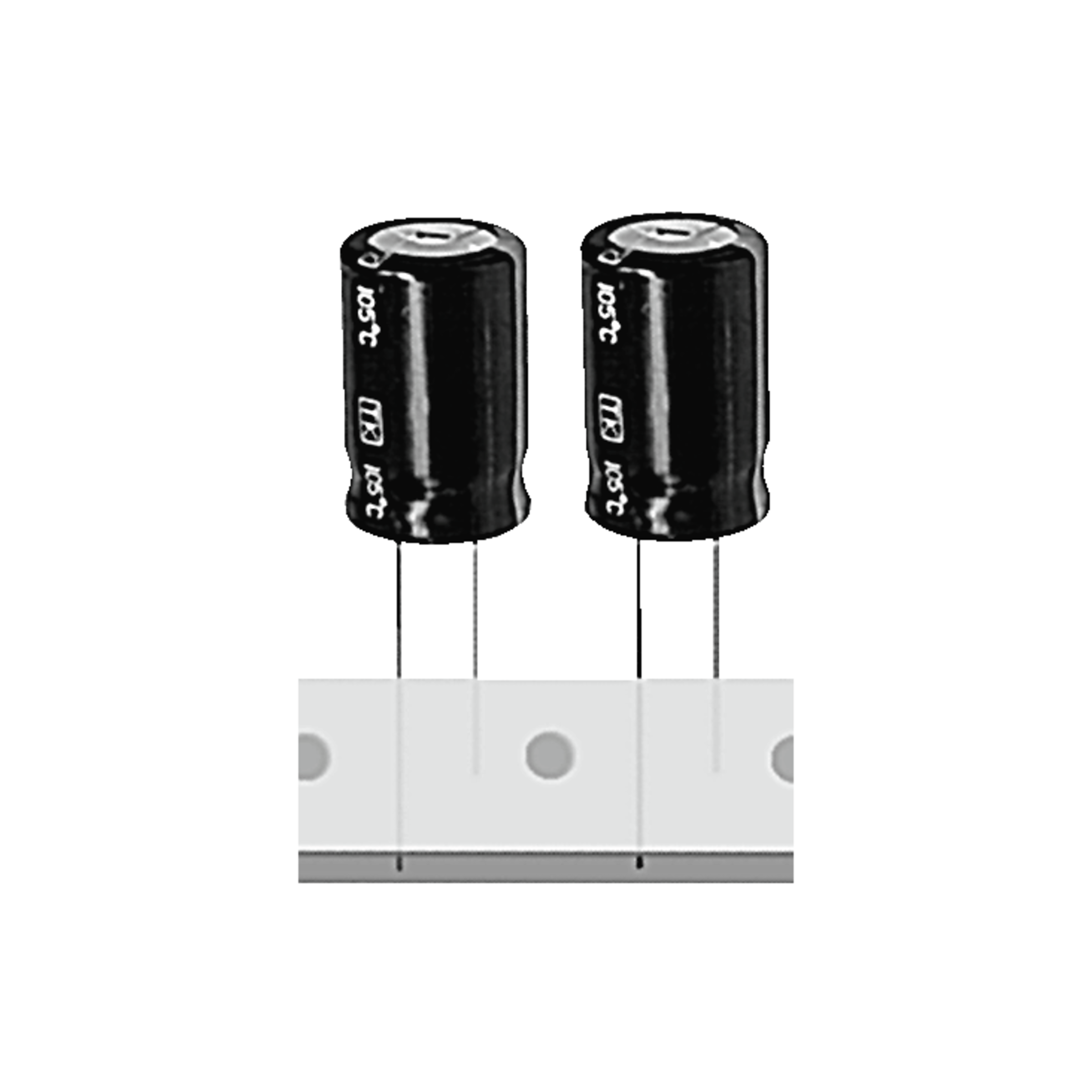

Jamicon Aluminum electrolytic capacitor TK THT radial 100V 2,2µF 20% P2mm/5mm -55°C...105°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6.400 Pcs. in stock
Next Stock Receipt
Week 51/2024
10.000 Pcs.
10.000 Pcs.
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 2,2 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 100 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 2 mm
- Rastermaß Gurt
- 5 mm
- RoHS-Conform
Specifications
Open all

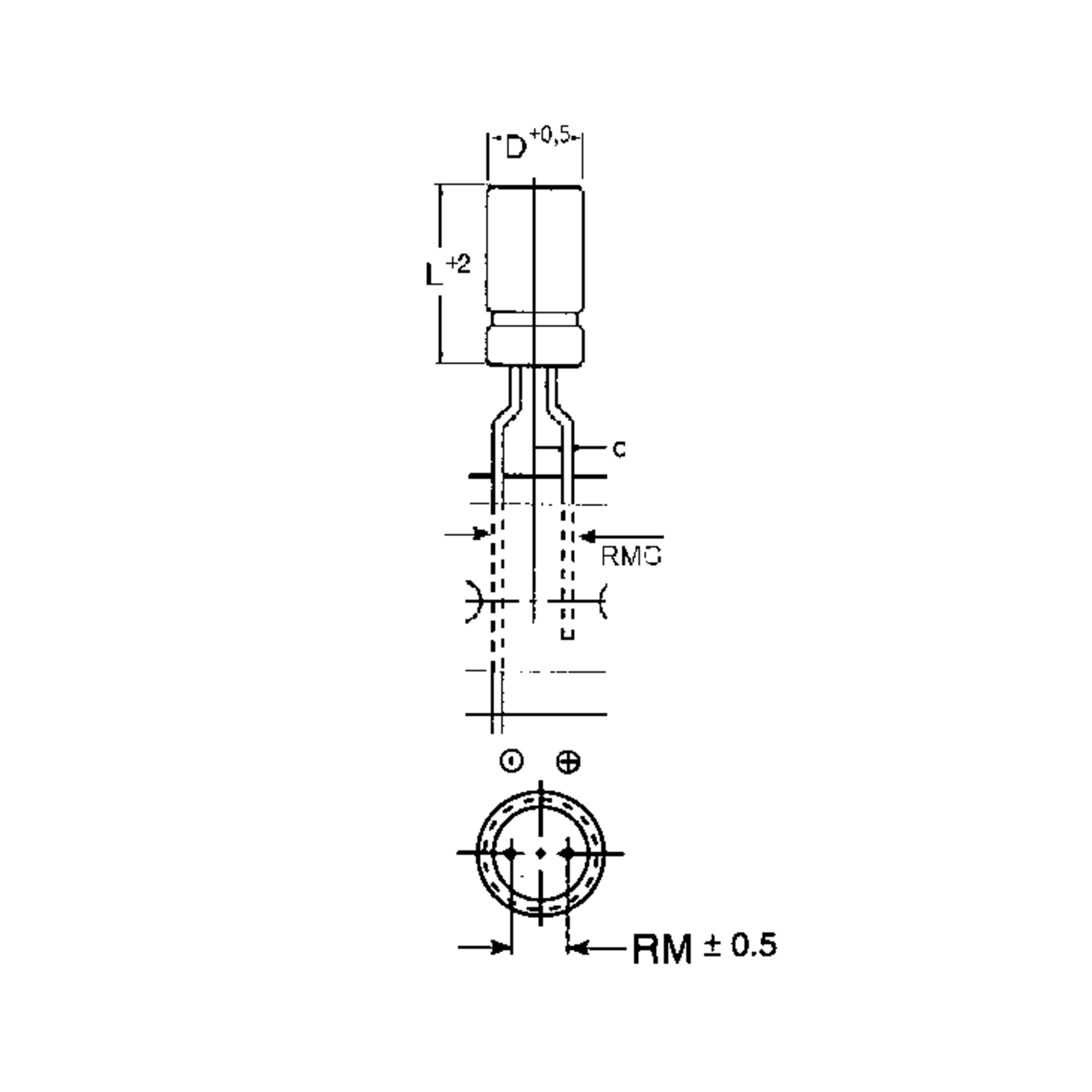

Dimensions and weights
- Diameter
- 5 mm
- Dimension: Height
- 11 mm
- Wire diameter
- 0.5 mm
- Pitch
- 2 mm
- Rastermaß Gurt
- 5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 2,2 µF
- Capacity
- 2.2
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,08
- Leakage current
- 4 µA
- Ripple Current
- 20 mA
- Rated voltage DC
- 100 V
- Surge voltage
- 125 V
- Service life
- 2.000 h
