JTK106M100S1AME11L

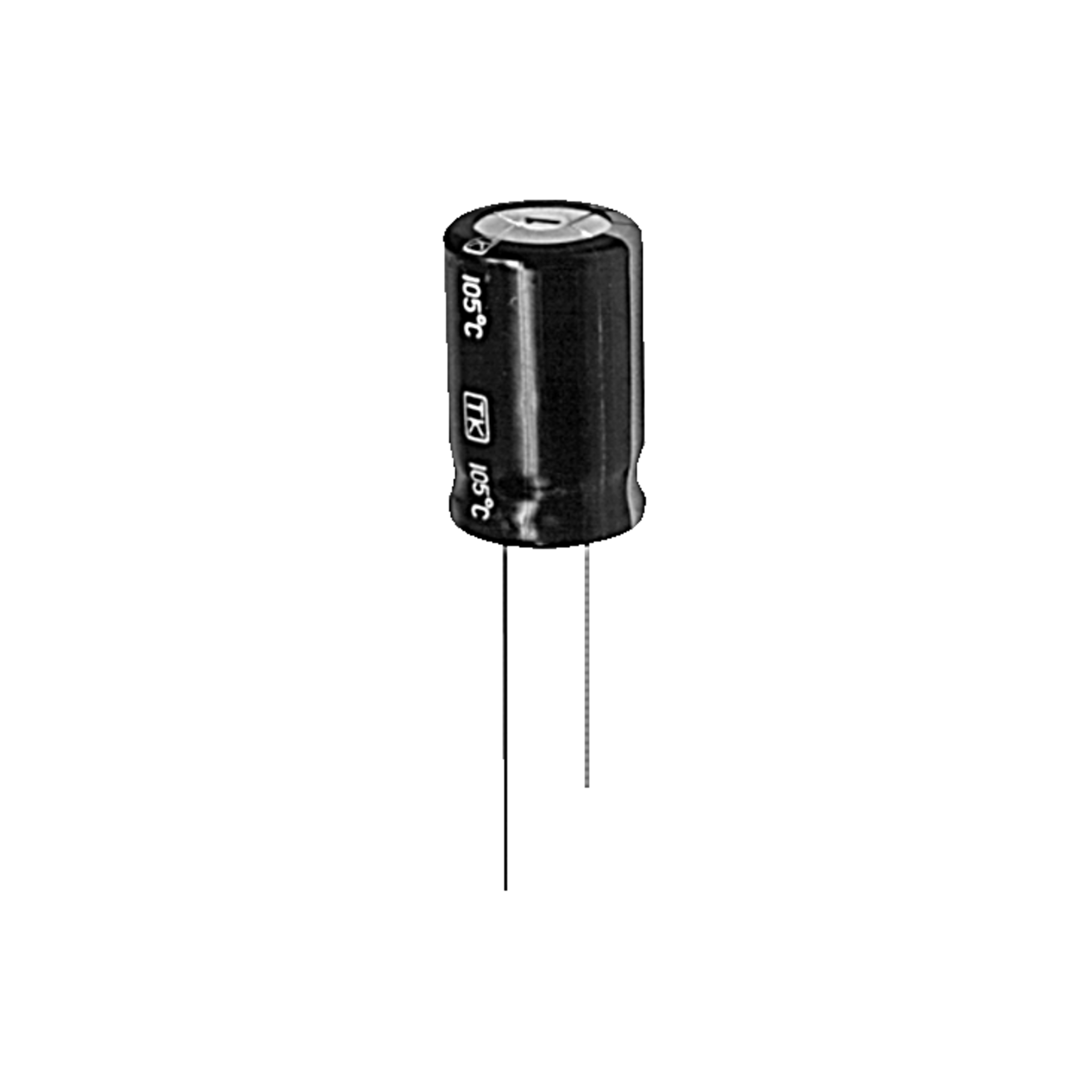

Jamicon Aluminum electrolytic capacitor THT radial 10µF 100V 20% RM2,5mm -55°C - 105°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
8.800 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 10 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 100 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 2.5 mm
- RoHS-Conform
Specifications
Open all

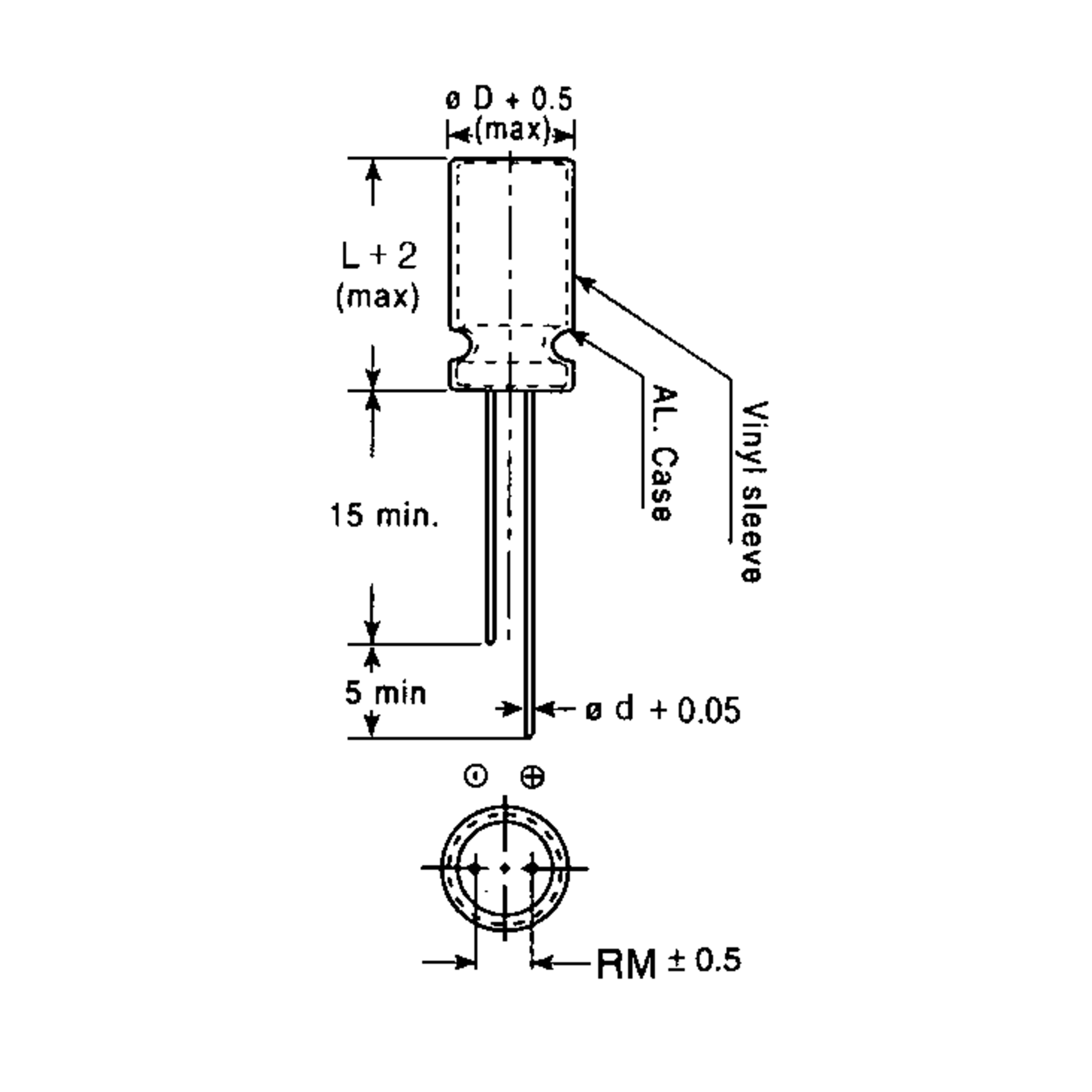

Dimensions and weights
- Diameter
- 6.3 mm
- Dimension: Height
- 11 mm
- Wire diameter
- 0.5 mm
- Pitch
- 2.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 10 µF
- Capacity
- 10
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,08
- Leakage current
- 4 µA
- Ripple Current
- 65 mA
- Rated voltage DC
- 100 V
- Surge voltage
- 125 V
- Service life
- 2.000 h
