JY10F332MY75N+DL5MM

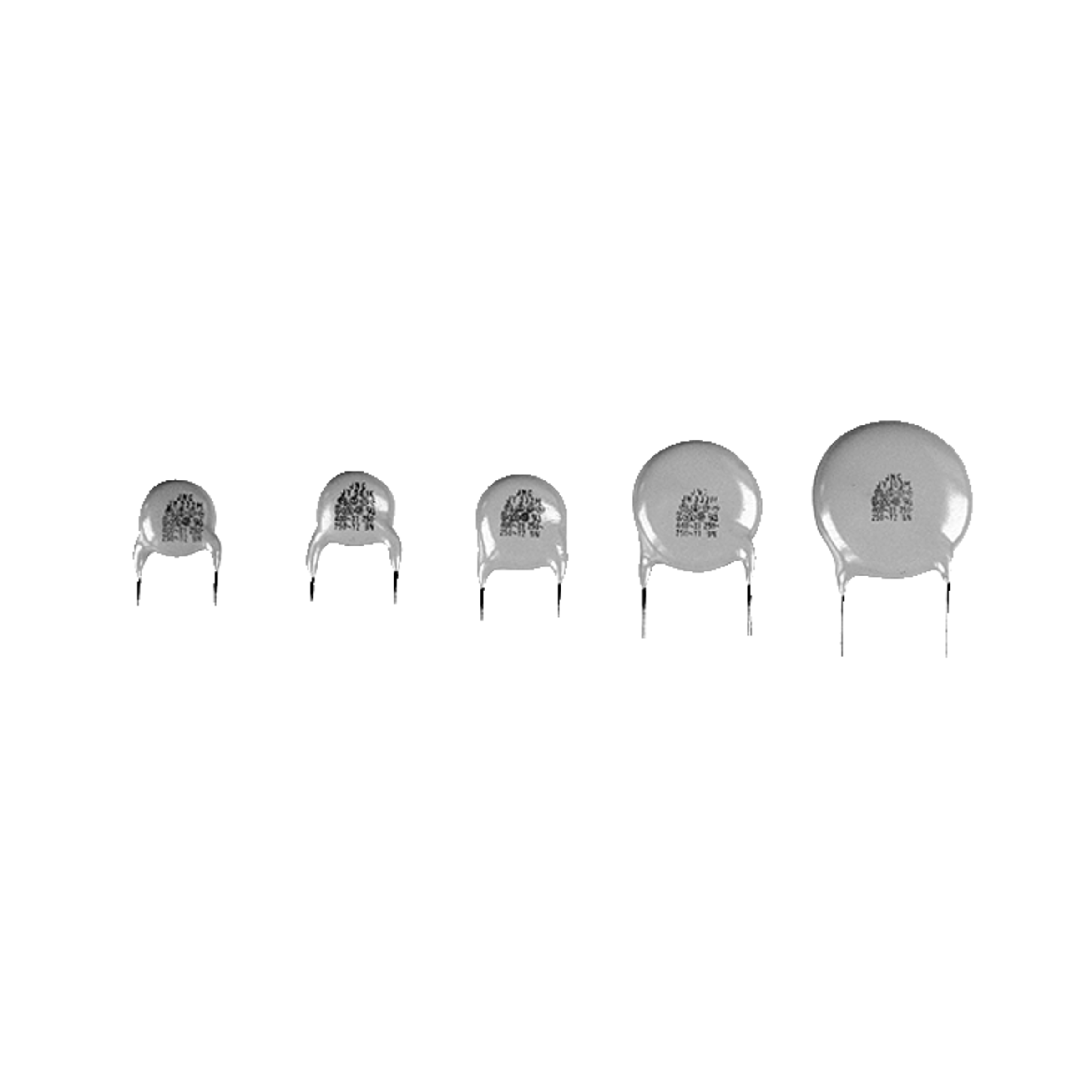

JYA-NAY THT Ceramic suppression capacitor JY radial 3,3nF 20% Y5V 440V RM7,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4.500 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 300 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Ceramic suppression capacitor
- Ceramic type
- Y5V
- Capacity
- 3,3 nF
- Capacity tolerance
- 20 %
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 7.5 mm
- RoHS-Conform
Specifications
Open all

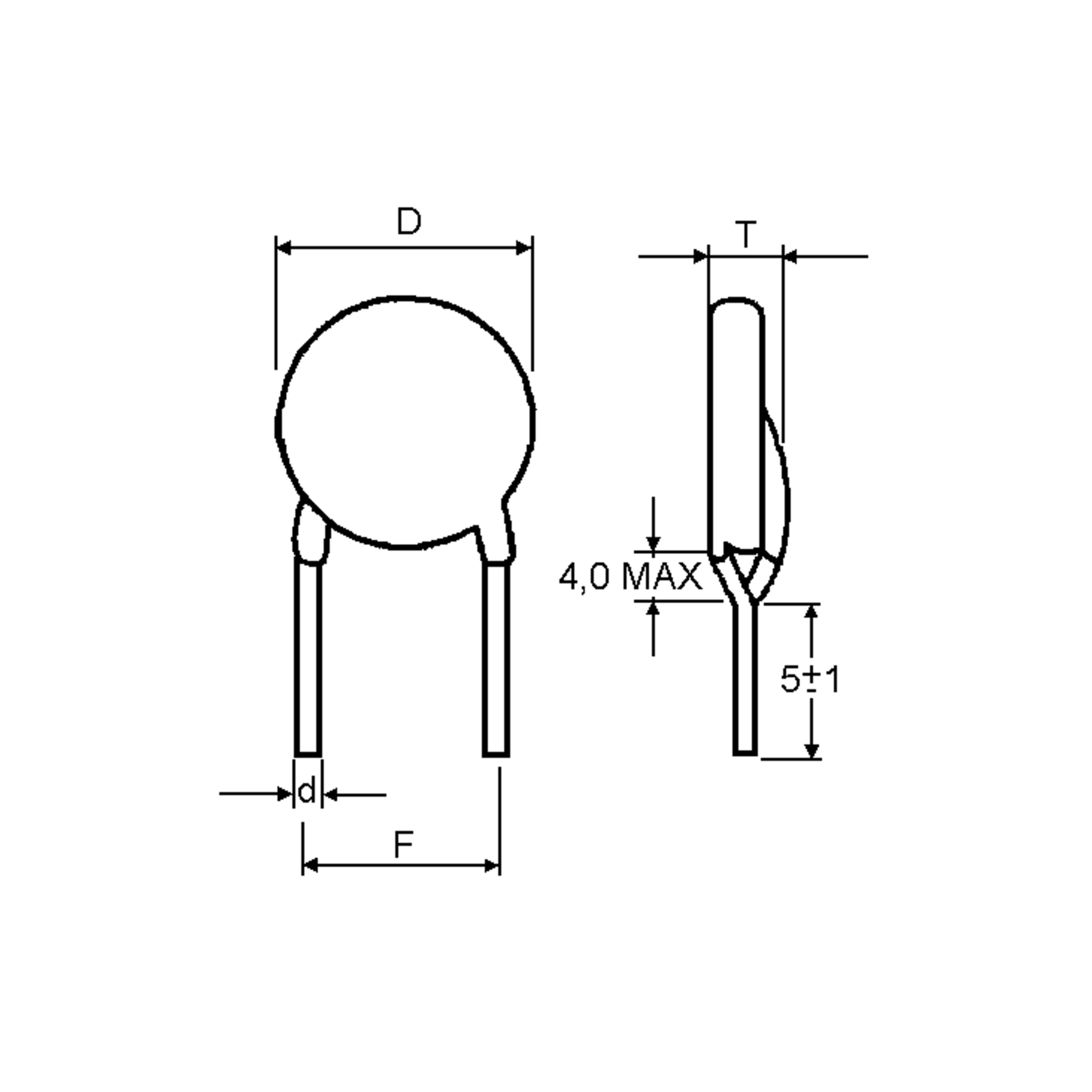

Dimensions and weights
- Disc thickness
- 5 mm
- Disc diameter
- 12 mm
- Wire diameter
- 0.6 mm
- Pitch
- 7.5 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 125 °C
- Climate category IEC
- 25/125/21
Technical features
- Capacity
- 3,3 nF
- Capacity
- 3.3
- Capacity unit
- nF
- Capacity tolerance
- 20 %
- Rated voltage AC
- 440 V
- Class
- Insulation resistance
- 10 GOhm
Safety/Certifications
- Approvals
- CQC
- ENEC
- MOT
- Standards
- IEC/EN 60384-14 2013, EN 60384-14 2013, IEC EN 60384-14
