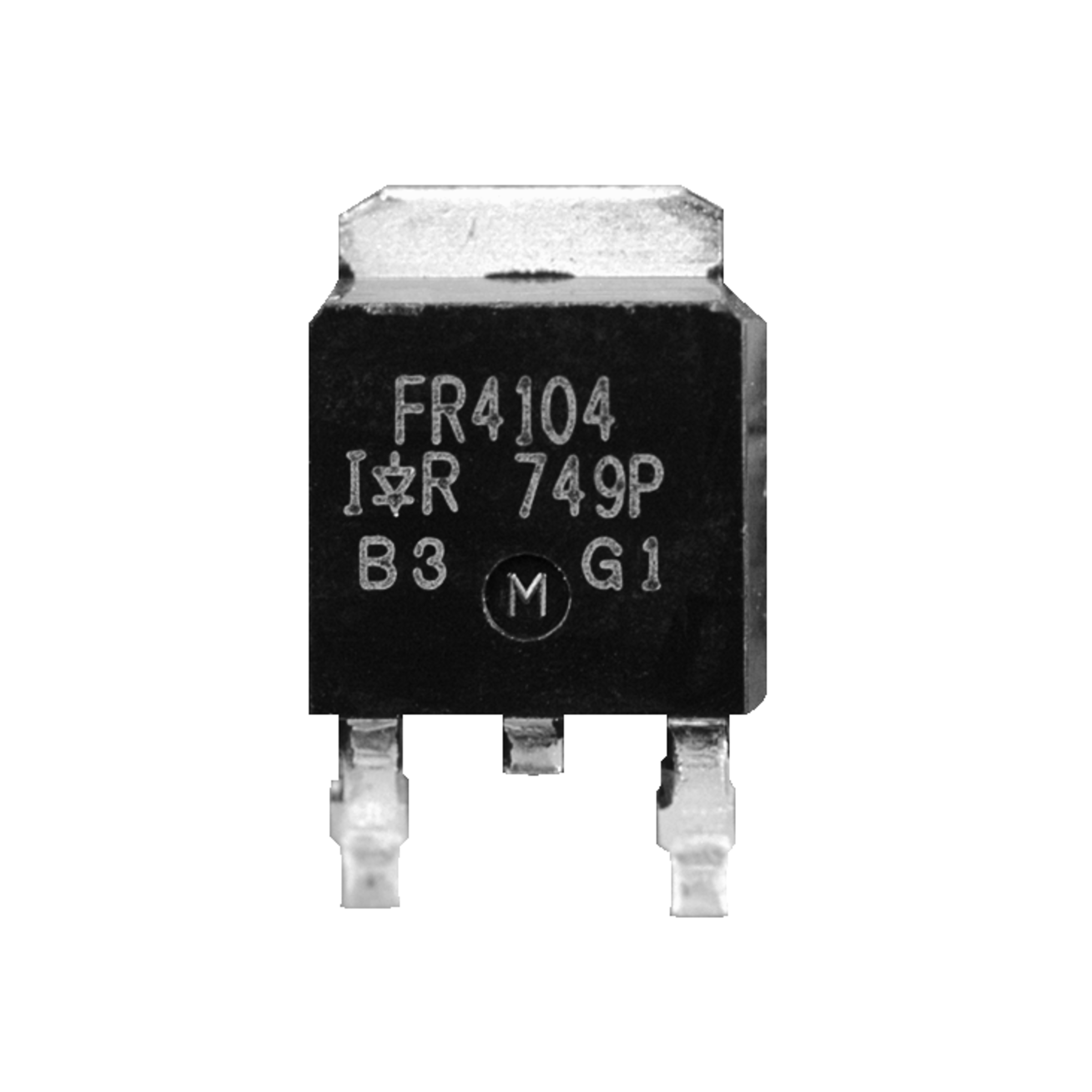

IRFR4104PBF
Infineon SMD/SMT Power MOSFET N-Channel 42A 140W 5,5mOhm TO-252AA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 16.12.2018
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 75 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 3000 or multiple of 3000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Number of Channels
- 1
- Polarity
- N-Channel
- (Id) Continuous Drain Current
- 42 A
42 A - (Pd) Power Dissipation
- 140 W
- (RDS(on)) Drain-Source Resistance Max.
- 5.5 mOhm
- Manufacturer Package
- TO-252AA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 175 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 175 °C
Electrical Properties
- (Uds) Max. Drain-Source Voltage
- 40 V
- 40 V
- (Uds) Max. Drain-Source Voltage Q1
- 40 V
- (Id) Continuous Drain Current
- 42 A
- 42 A
- (Id) Continuous Drain Current Q1
- 42 A
- (Ugs) Gate-Source Voltage
- 20 V
- 20 V
- (Ugs) Gate-source voltage Q1
- 20 V
- Number of Channels
- 1
- Polarity
- N-Channel
- (Pd) Power Dissipation
- 140 W
- (RDS(on)) Drain-Source Resistance Max.
- 5.5 mOhm
