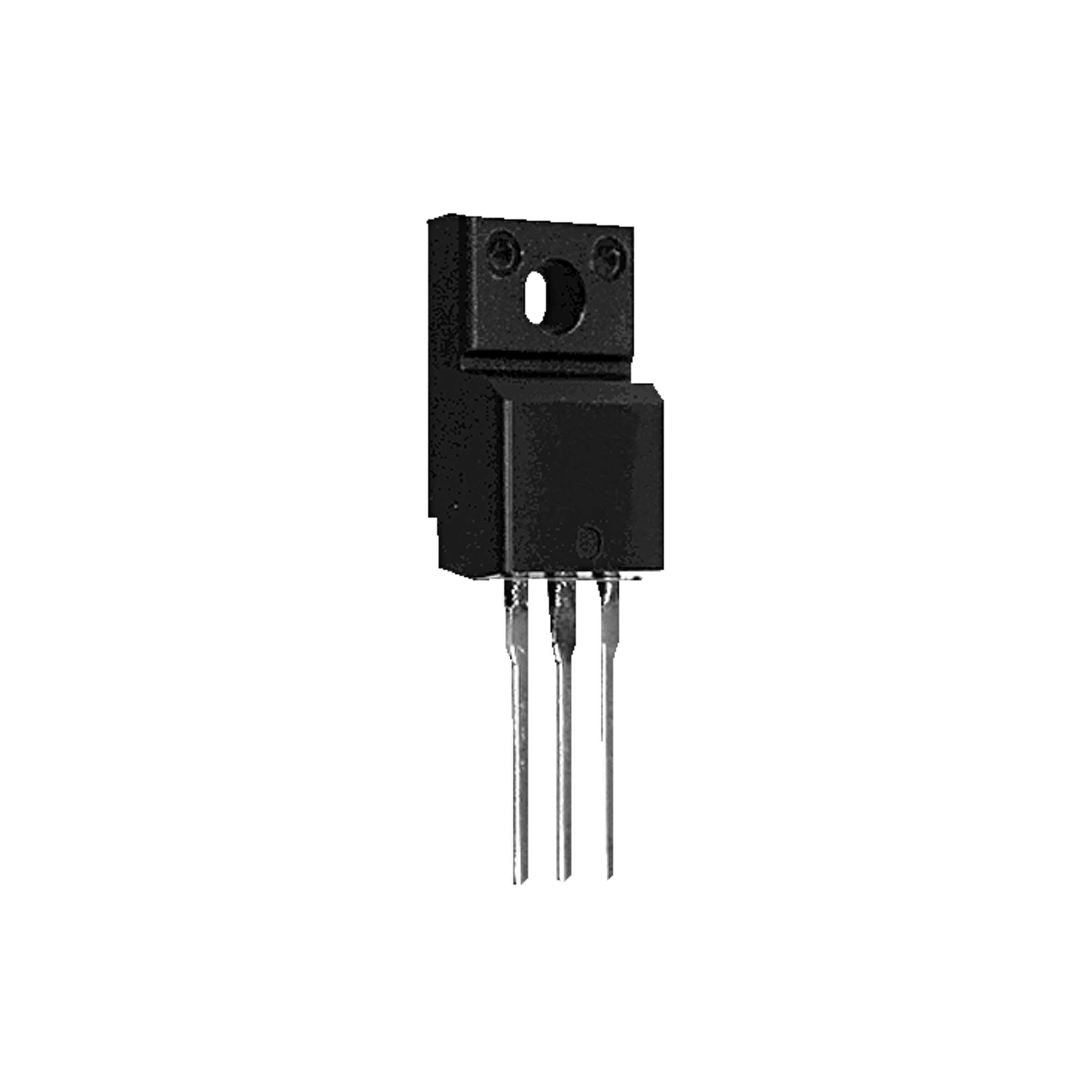

IPA60R600P7XKSA1
Infineon THT Power MOSFET N-Channel 6A 21W 600mOhm TO-220FP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
500 Pcs.
500 Pcs.
Planned delivery time
Ø 39 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Number of Channels
- 1
- Polarity
- N-Channel
- (Id) Continuous Drain Current
- 6 A
6 A - (Pd) Power Dissipation
- 21 W
- (RDS(on)) Drain-Source Widerstand max.
- 600 mOhm
- Manufacturer Package
- TO-220FP
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 150 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- (Uds) Max. Drain-Source Voltage Q1
- 650 V
- (Uds) Max. Drain-Source Voltage
- 650 V
- 650 V
- (Id) Continuous Drain Current Q1
- 6 A
- (Id) Continuous Drain Current
- 6 A
- 6 A
- (Ugs) Gate-Source Voltage Q1
- 20 V V
- (Ugs) Gate-Source Voltage
- 20 V
- 20 V
- (Ugs th) Gate-Source Threshold Voltage Q1
- 3.5 V
- (Ugs th) Gate-Source Threshold Voltage
- 3,5 V
- 3,5 V
- Number of Channels
- 1
- Polarity
- N-Channel
- (Pd) Power Dissipation
- 21 W
- (RDS(on)) Drain-Source Widerstand max.
- 600 mOhm
