HFKD/012-2ZST

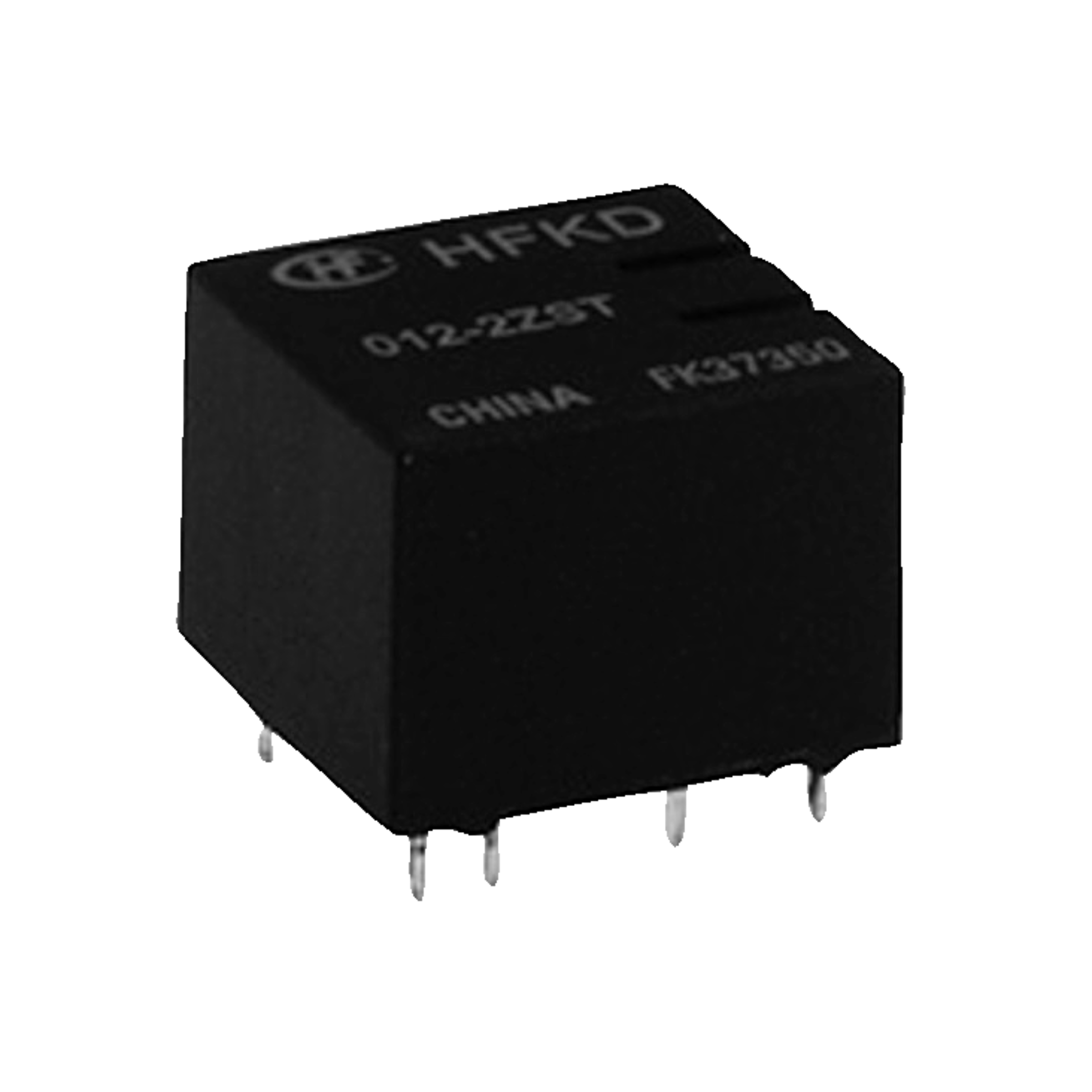

Hongfa Automotive relay HFKD DPDT 25A 12VDC 255Ohm

Image similar
Manufacturer Part No.
HFKD/012-2ZST
Schukat Part No.
HFKD012-2ZST
Manufacturer
Hongfa
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

985 Pcs. in stock

Planned delivery time
Ø 27 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Automotive relay
Series
HFKD
Rated voltage DC
12 V DC
Switching current
25 A

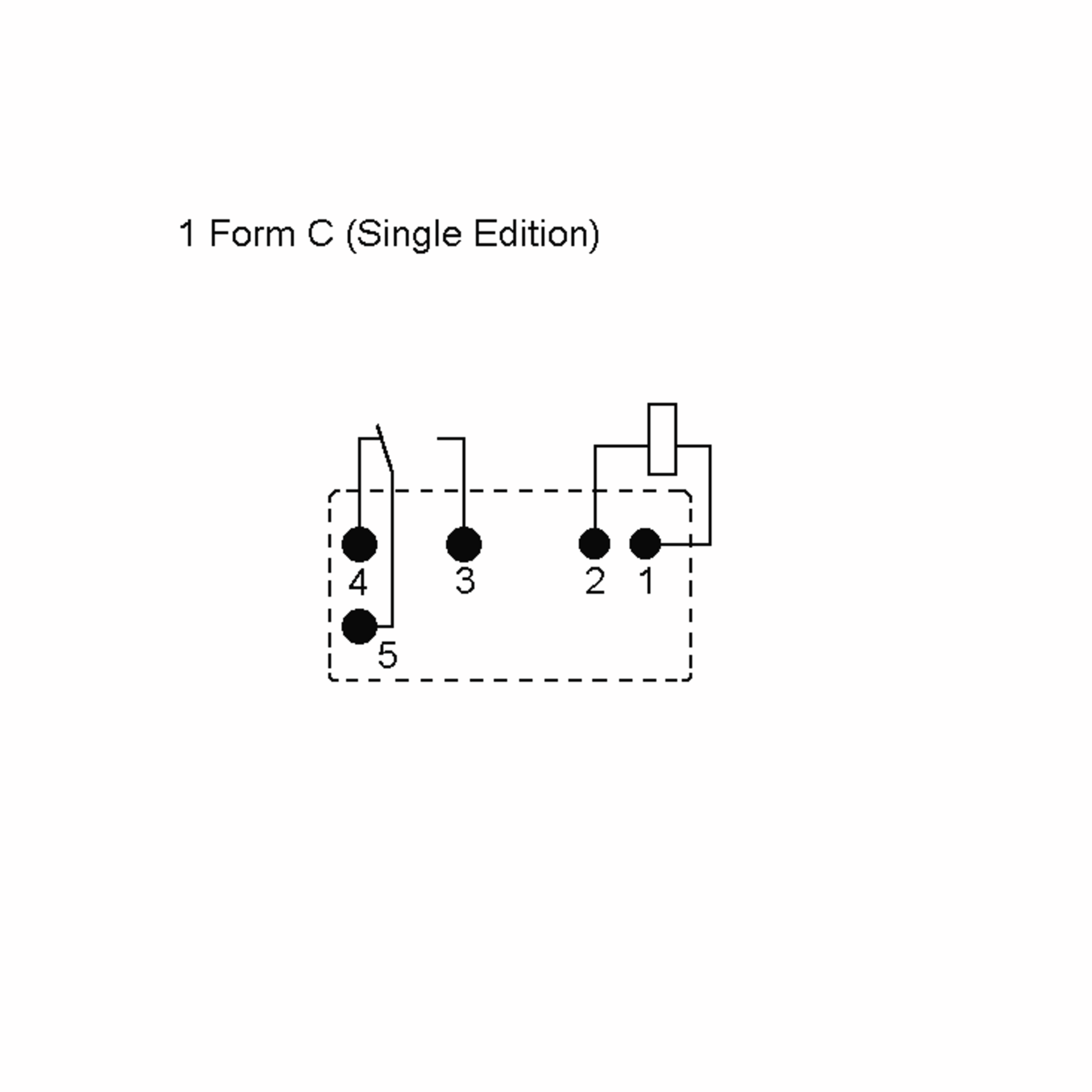

contacts
DPDT
Coil resistance
255 Ohm

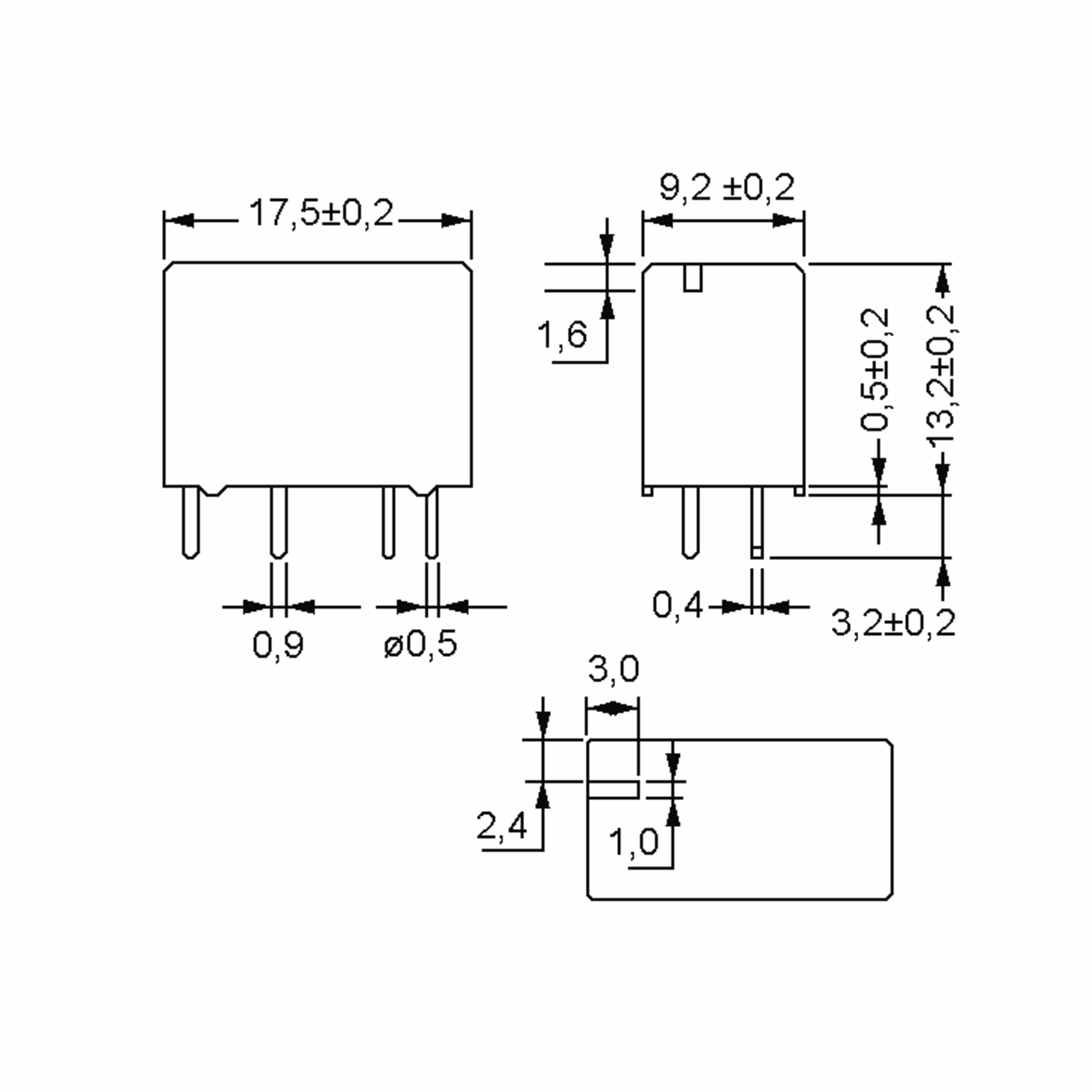

Dimension: Length
17.5 mm
Dimension: Width
9.2 mm
Dimension: Height
13.2 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Hongfa
Type
  • Automotive relay
Series
  • HFKD
Product group
  • E6515 Automotive Relay 25A
contacts
  • DPDT
Contact material
  • AgSnO2

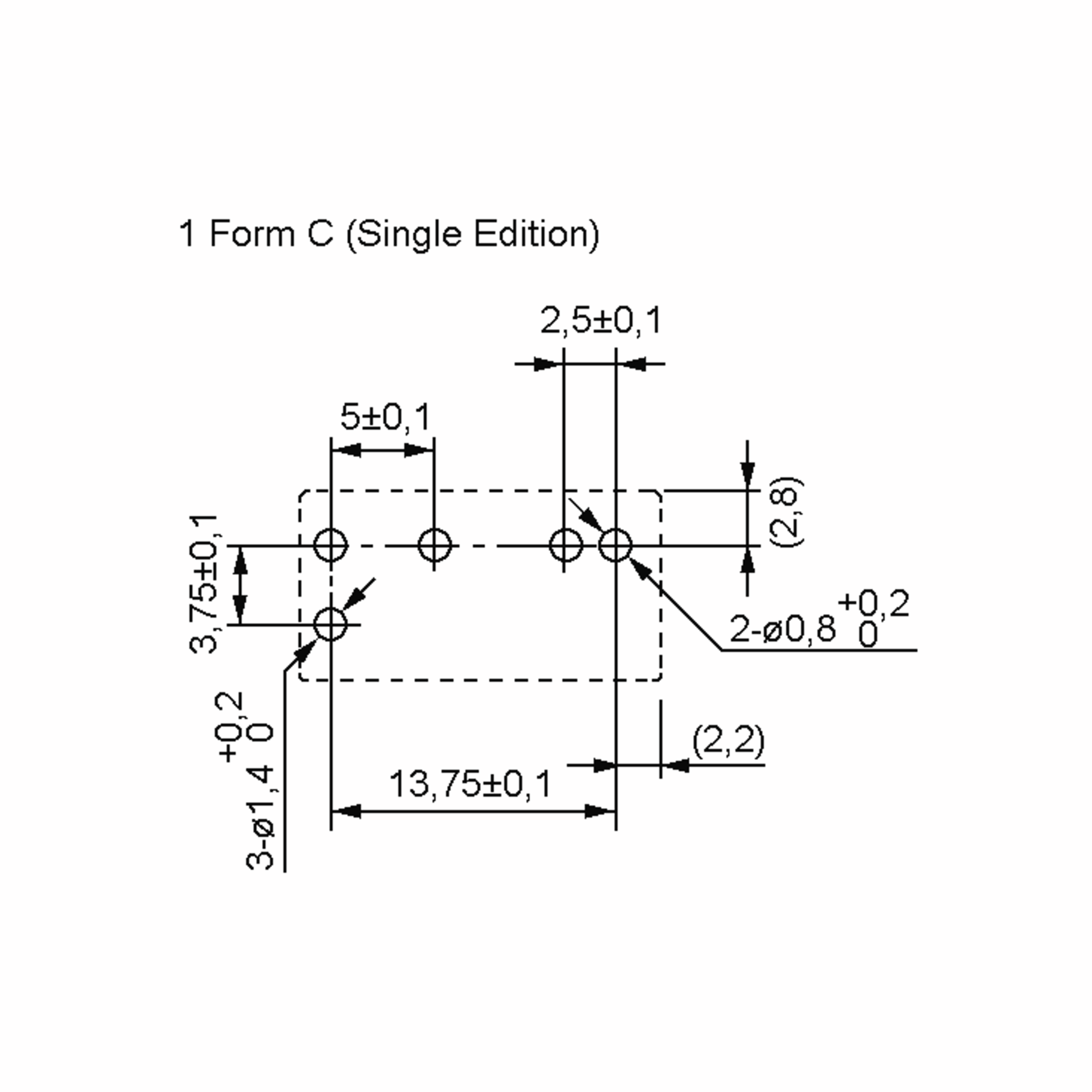

Assembly Type
  • THT

Dimensions and weights

Dimension: Length
  • 17.5 mm
Dimension: Width
  • 9.2 mm
Dimension: Height
  • 13.2 mm
Weight
  • 10 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical features

Rated voltage DC
  • 12 V DC
Coil design
Switching voltage, max. DC
  • 40 V DC
Response voltage
  • 7.2 V
Drop-out voltage
  • 1 V
Operating voltage, max.
  • 20 V
Test voltage open contacts
  • 500 V AC
Test voltage coil/contact
  • 500 V AC
Switching current
  • 25 A
Inrush current
  • 25 A
Rated power
  • 560 mW
Coil resistance
  • 255 Ohm
Insulation resistance
  • 100 MOhm
Response time
  • 3 ms
Drop-out time
  • 1.3 ms
Vibration resistance
  • 1,5 mm DA
Impact resistance, functional
  • 294 m/s²

Safety/Certifications

Protection class RT
  • RTIII
