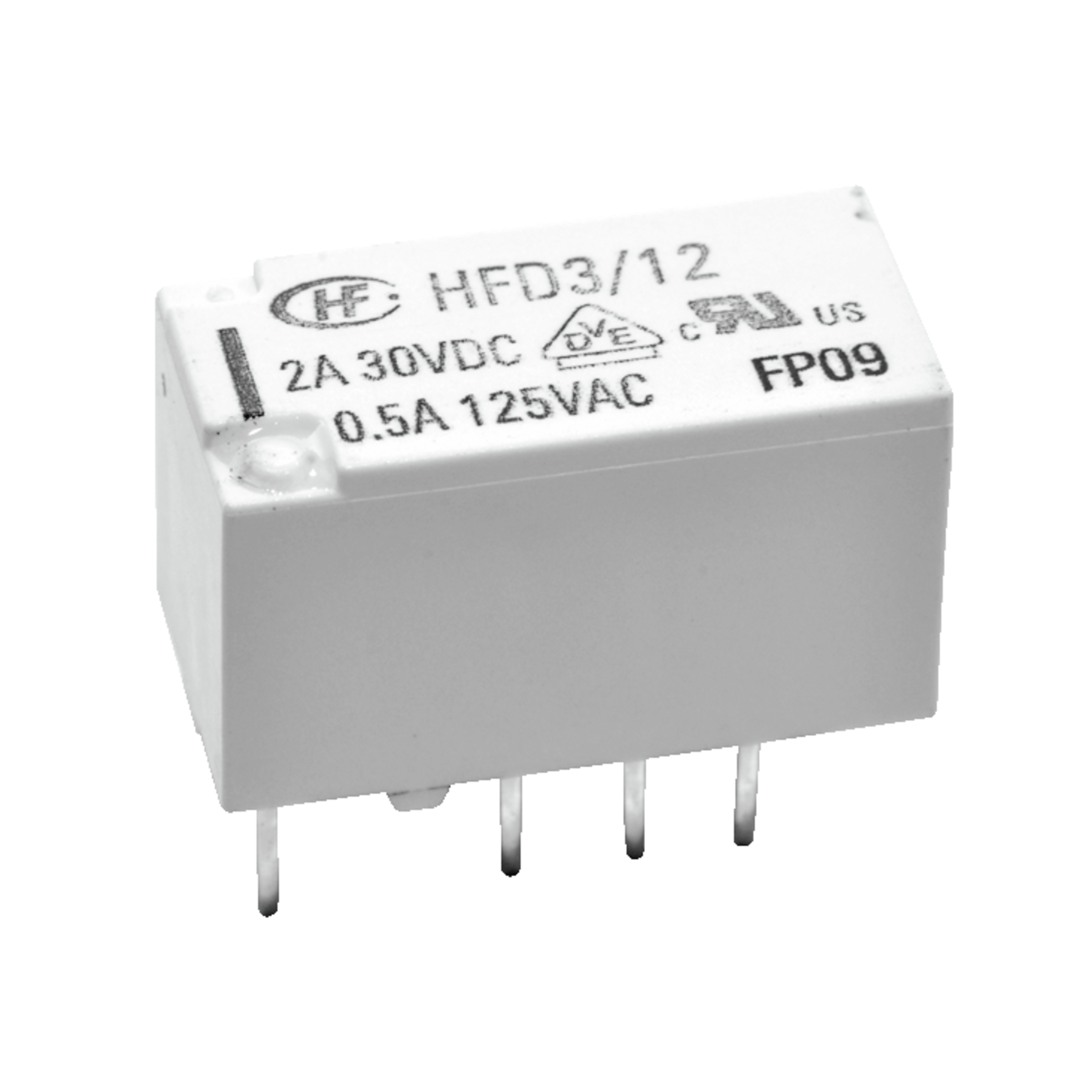

HFD3/012

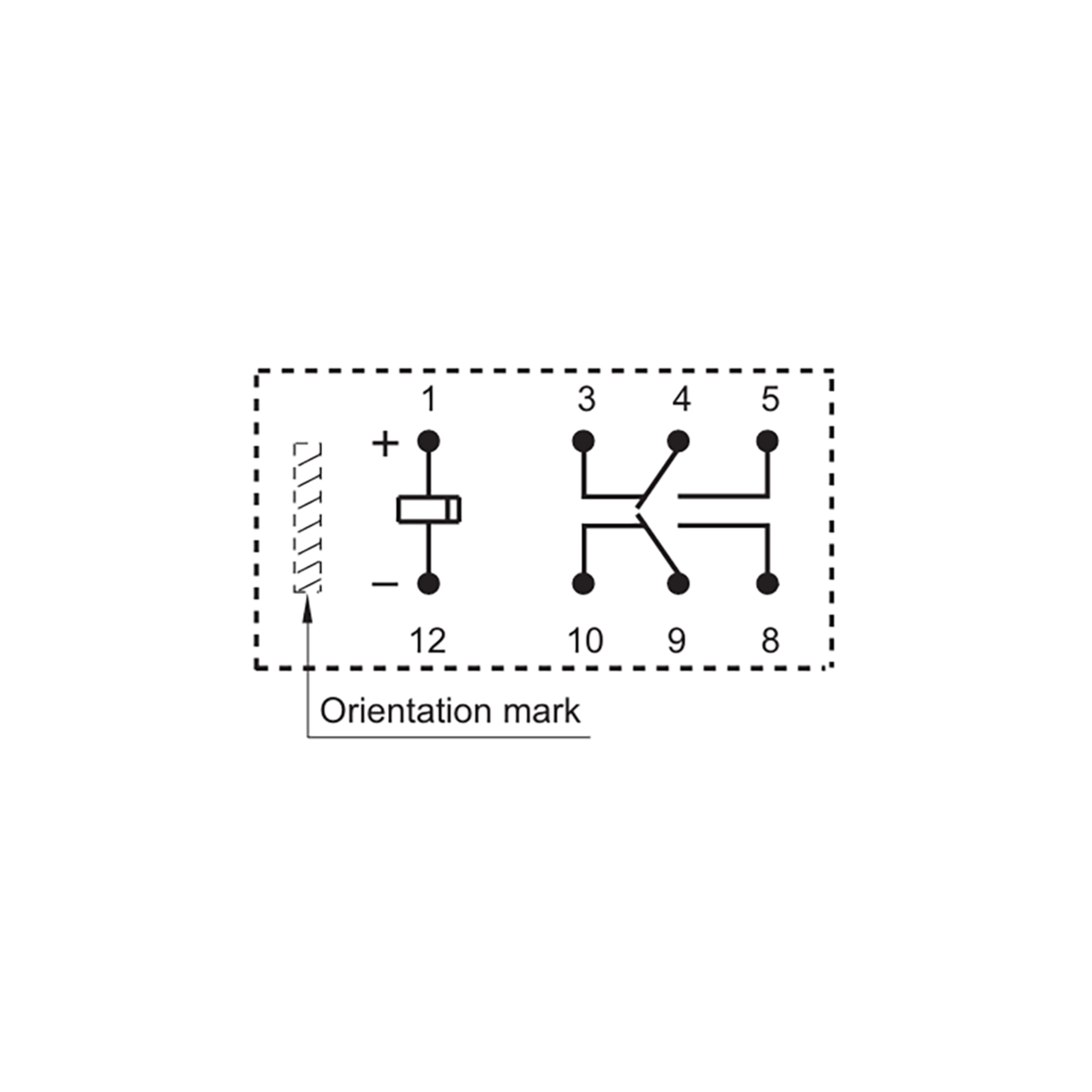

Hongfa PC relay HFD3 THT DPDT 4A 12VDC 1.028Ohm 15mmx7,5mmx9mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
675 Pcs. in stock
Next Stock Receipt
Week 34/2026
4.000 Pcs.
4.000 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- HFD3
- contacts
- DPDT
- Contact: Switching Current (min/typ/max)
- 4 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 1,028 Ohm
- RoHS-Conform
Specifications
Open all

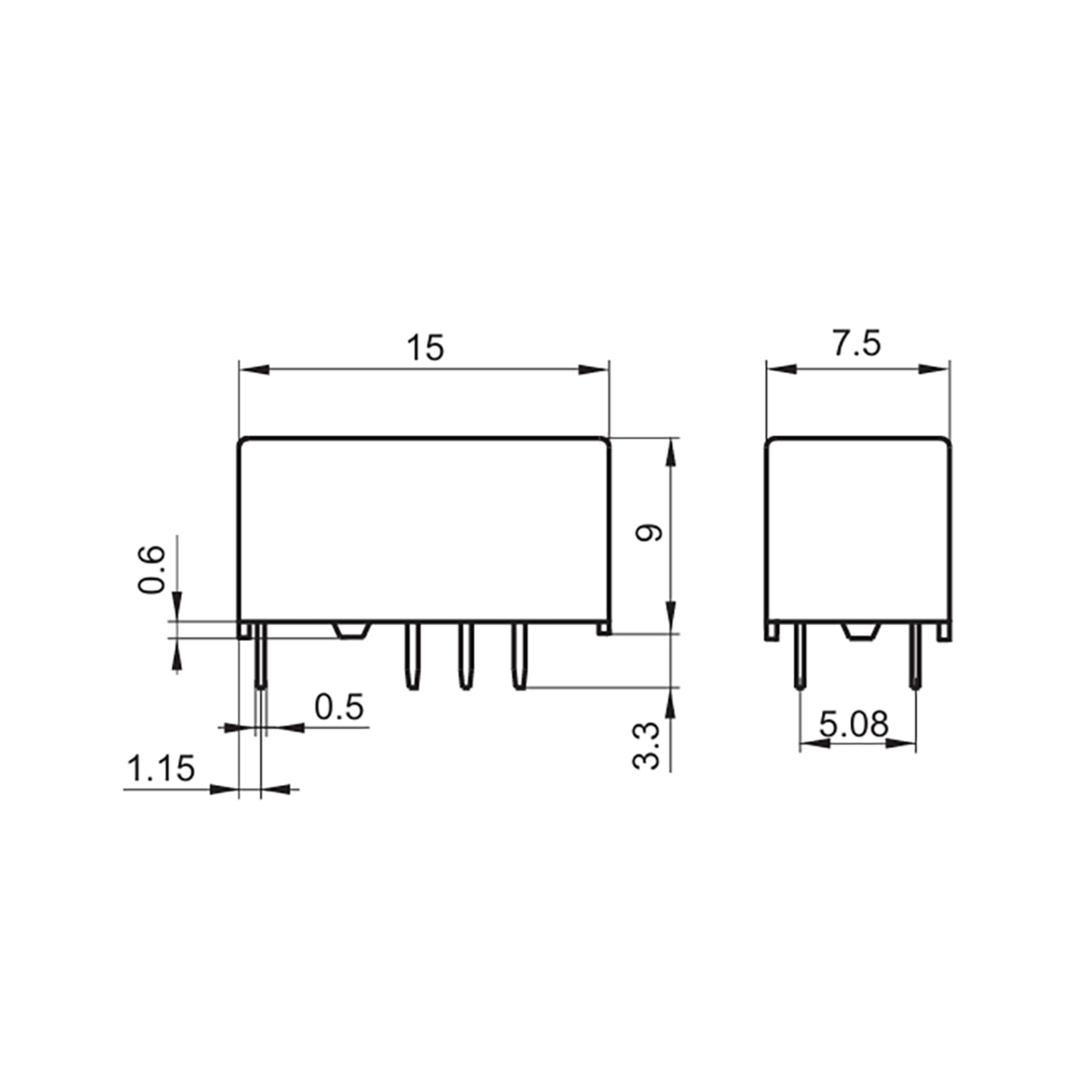

Dimensions and Weights
- Dimension: Length
- 15 mm
- Dimension: Width
- 7.5 mm
- Dimension: Height
- 9 mm
- Weight
- 2 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact design
- Bifurcated
- Contact: Switching Current (min/typ/max)
- 4 A
- Contact: Switching Voltage, max. AC
- 277 V AC
- Contact: Switching Voltage, max. DC
- 220 V DC
- Contact: Switching Capacity (VA)
- 62.5 VA
- Contact: Switching Load (W)
- 90 W
- Contact resistance
- 100 mOhm
- Coil design
- monostable
- Coil resistance
- 1,028 Ohm
- Inductor power
- 140 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, max.
- 24 V
- Coil: Pick-up voltage
- 9 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage contact/contact
- 1,500 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 2,000 V AC
- Response time
- 4 ms
- Drop-out time
- 4 ms
- Mechanical service life
- 100 x 10^6 operations
- Service life, electrical
- 10^5 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 3,3 mm DA
- Impact resistance, functional
- 735 m/s²
- Soldering temperature, max.
- 245°C / short-term
Safety/Certifications
- Approvals
- CQC
- VDE
- cULus
- Standards
- EN 60950, EN 41003, FCC Part 68, Telcordia
