HFD2/048-S-D
Hongfa Signal relay DIP DIL HFD2 THT DPDT 3A 48VDC 11.520Ohm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
500 Pcs.
500 Pcs.
Planned delivery time
- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Signal relay DIP DIL
- Series
- HFD2
- Rated current
- 2 A
- Rated voltage DC
- 48 V DC
- Switching current
- 3 A
- contacts
- DPDT
- Coil resistance
- 11,520 Ohm

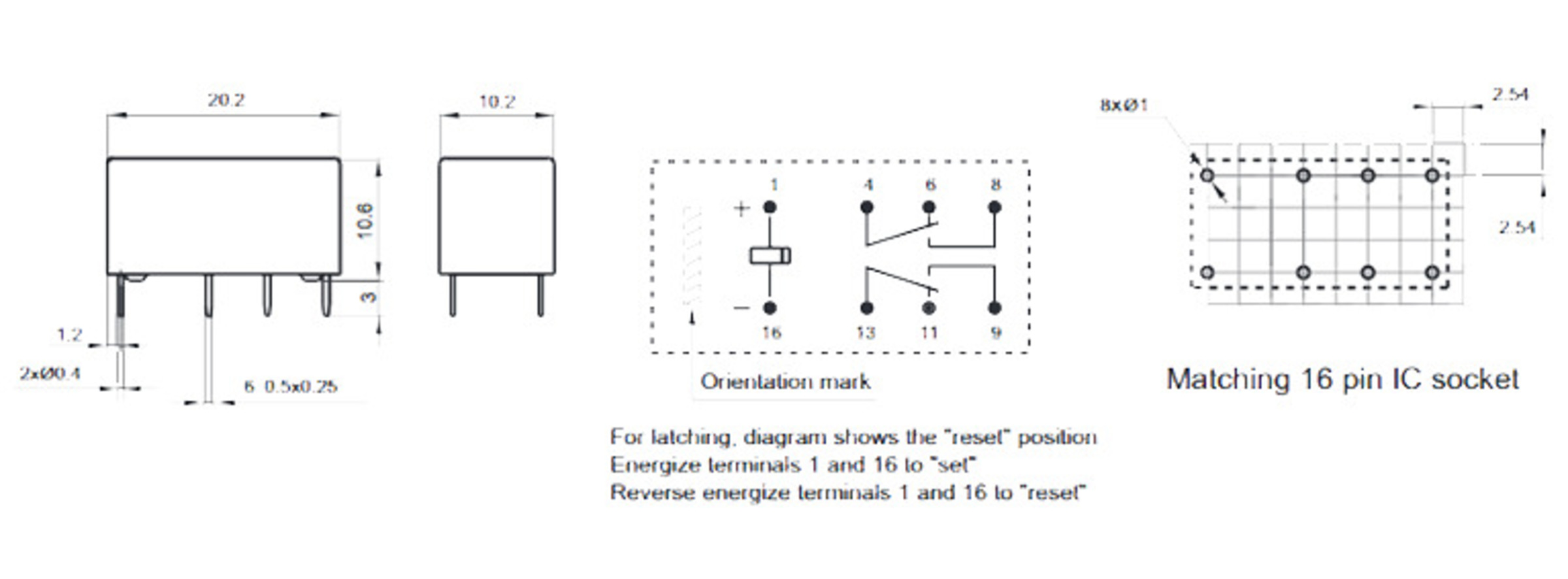

- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 10.6 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 10.6 mm
- Weight
- 4.5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 48 V DC
- Coil design
- monostable
- Contact design
- Bifurcated
- Switching voltage, max. AC
- 250 V AC
- Switching voltage, max. DC
- 220 V DC
- Drop-out voltage
- 0.48 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,000 V AC
- Rated current
- 2 A
- Switching current
- 3 A
- Rated power
- 150 mW
- Switching capacity (VA)
- 125 VA
- Switching capacity (W)
- 90 W
- Coil resistance
- 11,520 Ohm
- Contact resistance
- 100 mOhm
- Response time
- 4.5 ms
- Drop-out time
- 3.5 ms
- Mechanical service life
- 10^5 Operations
- Service life, electrical
- 5 x 10^4 Operations
Safety/Certifications
- Approvals
- CQC
- MOT
- cULus
