HFD2/012-S-L2-D
Hongfa Signal relay DIP DIL HFD2 THT DPDT 12VDC 960Ohm 20,2mmx10,2mmx10,6mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- HFD2
- Type
- Signal relay DIP DIL
- Cell size
- contacts
- DPDT
- Rated voltage DC
- 12 V DC
- Coil resistance
- 960 Ohm
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 10.6 mm
- RoHS-Conform
Specifications
Open all

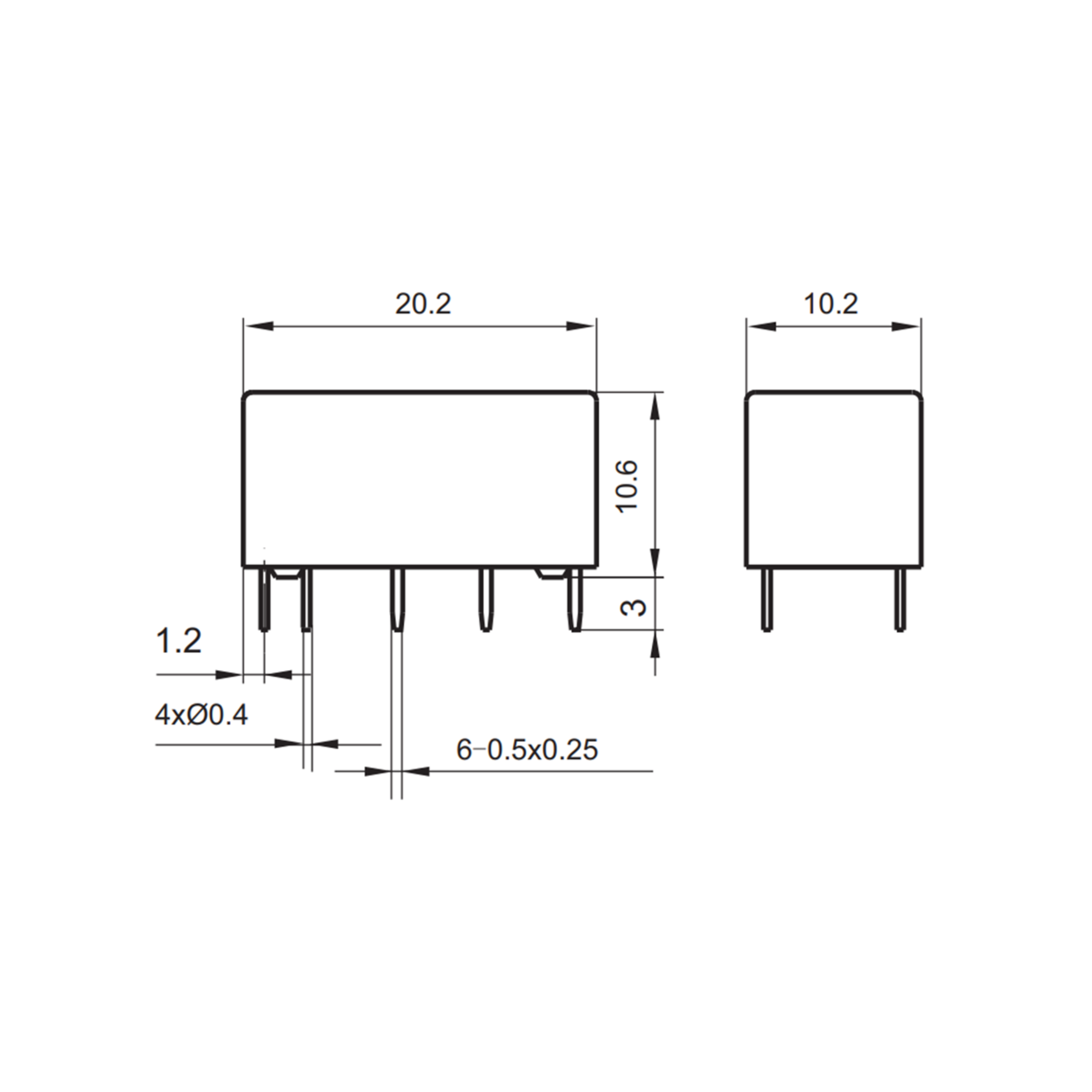

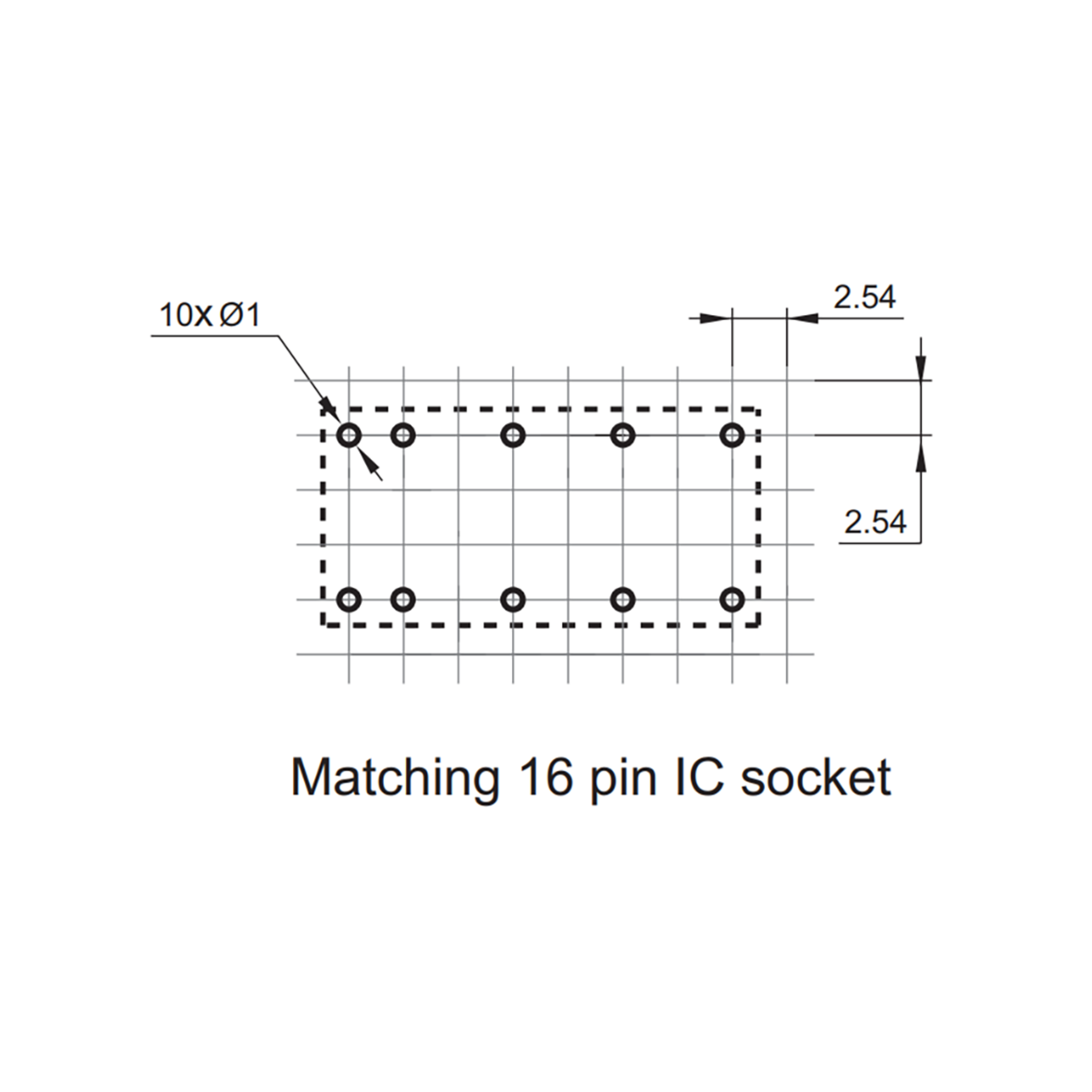

Dimensions and Weights
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 10.6 mm
- Weight
- 4.5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C

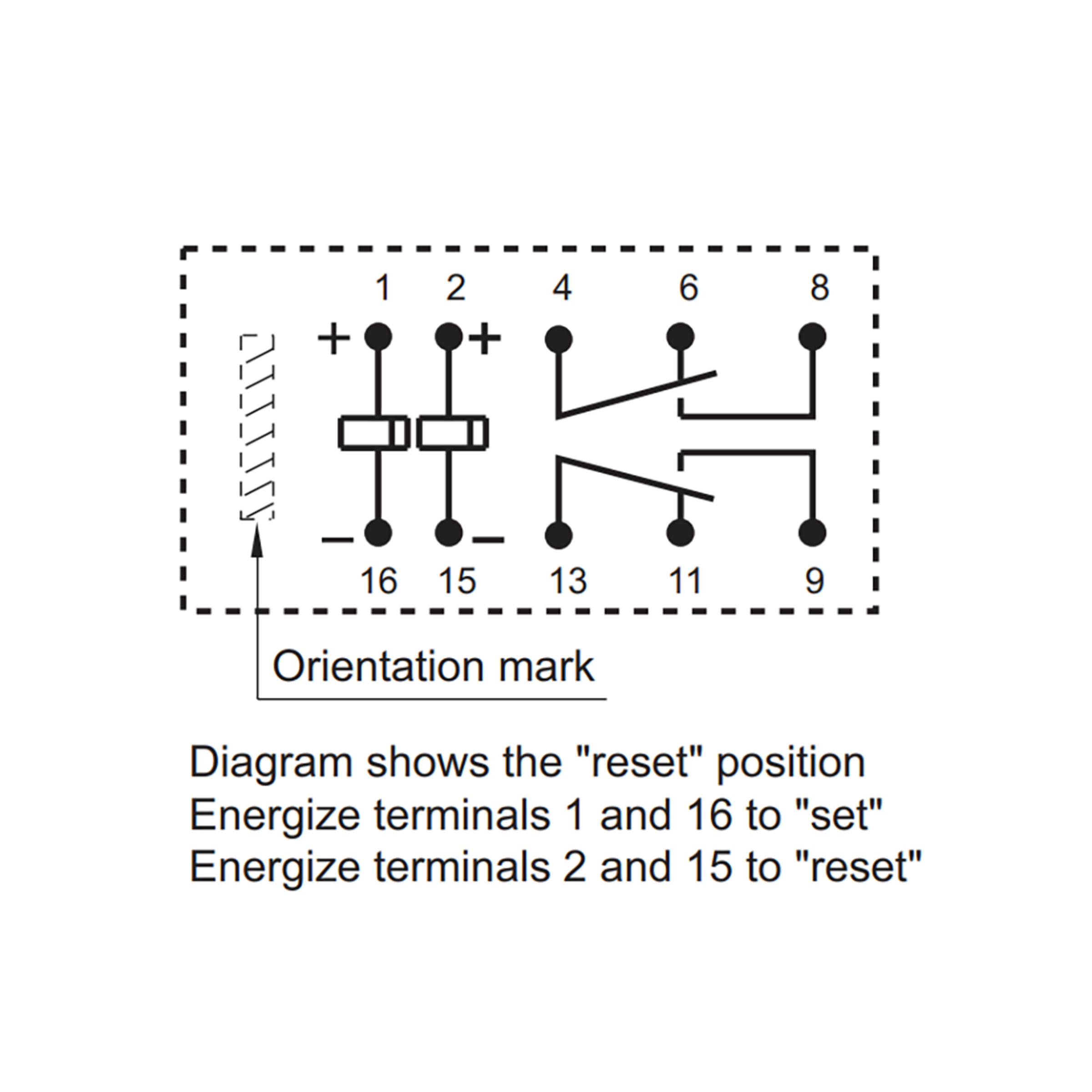

Technical Features
- Rated voltage DC
- 12 V DC
- Coil design
- bistable
- Contact design
- Switching voltage, max. AC
- 250 V AC
- Switching voltage, max. DC
- 220 V DC
- Response voltage
- 9.6 V
- Operating voltage, max.
- 27.7 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,000 V AC
- Rated power
- 150 mW
- Switching capacity (VA)
- 125 VA
- Switching capacity (W)
- 90 W
- Coil resistance
- 960 Ohm
- Contact resistance
- 100 mOhm
- Response time
- 4.5 ms
- Drop-out time
- 3.5 ms
- Mechanical service life
- 10^5 Operations
- Service life, electrical
- 5 x 10^4 Operations
Safety/Certifications
- Approvals
- CQC
- MOT
- cULus
