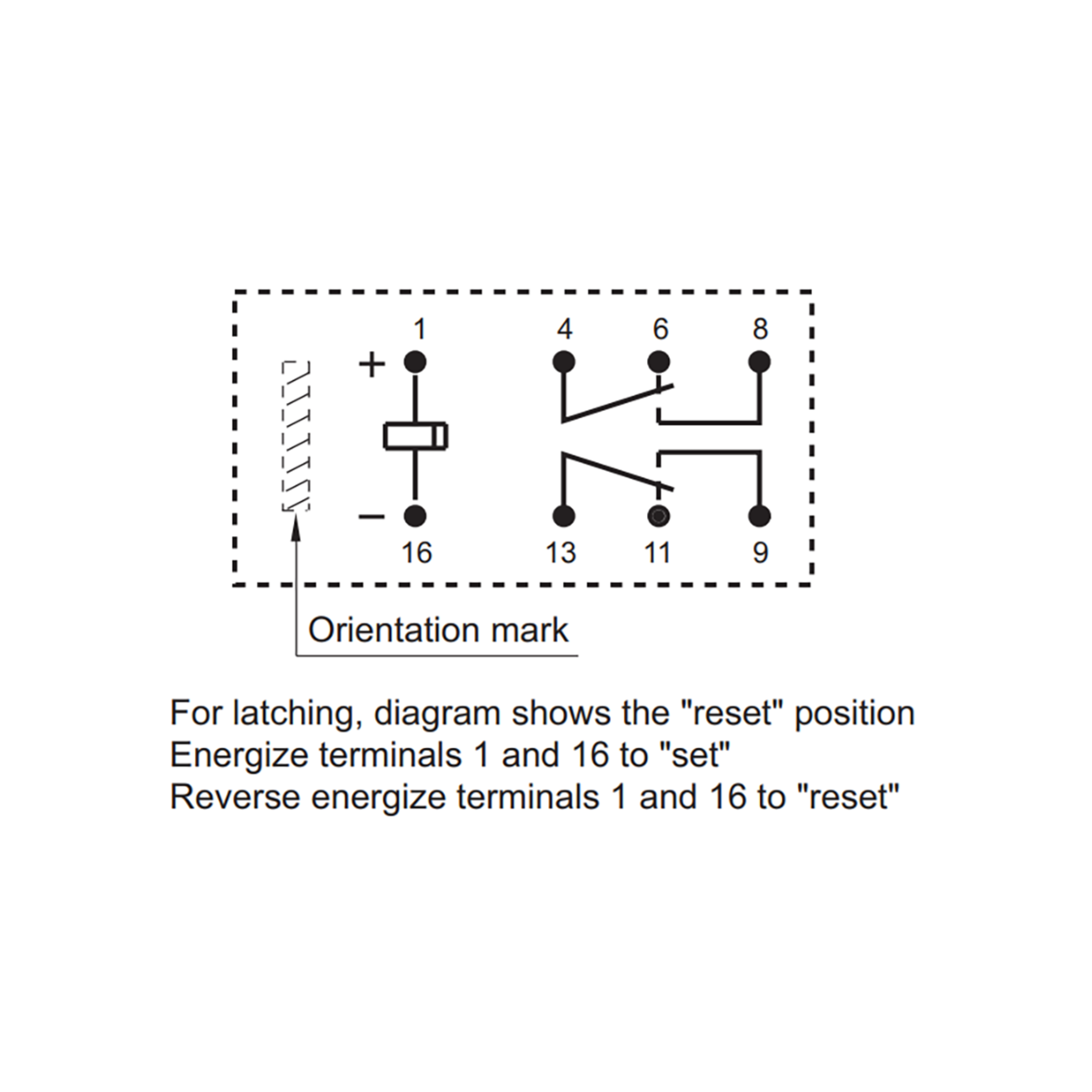

HFD2/012-S-D
Hongfa Signal relay DIP DIL HFD2 THT DPDT 3A 12VDC 960Ohm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
300 Pcs. in stock
Planned delivery time
Ø 34 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Signal relay DIP DIL
- Cell size
- Series
- HFD2
- Rated current
- 2 A
- Rated voltage DC
- 12 V DC
- Switching current
- 3 A
- contacts
- DPDT
- Coil resistance
- 960 Ohm
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 10.6 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 10.6 mm
- Weight
- 4.5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- monostable
- Contact design
- Bifurcated
- Switching voltage, max. AC
- 250 V AC
- Switching voltage, max. DC
- 220 V DC
- Response voltage
- 9.6 V
- Drop-out voltage
- 0.12 V
- Operating voltage, max.
- 27.7 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,000 V AC
- Rated current
- 2 A
- Switching current
- 3 A
- Rated power
- 150 mW
- Switching capacity (VA)
- 125 VA
- Switching capacity (W)
- 90 W
- Coil resistance
- 960 Ohm
- Contact resistance
- 100 mOhm
- Response time
- 4.5 ms
- Drop-out time
- 3.5 ms
- Mechanical service life
- 10^5 Operations
- Service life, electrical
- 5 x 10^4 Operations
Safety/Certifications
- Approvals
- CQC
- MOT
- cULus
