HF3FA/005-ZTF

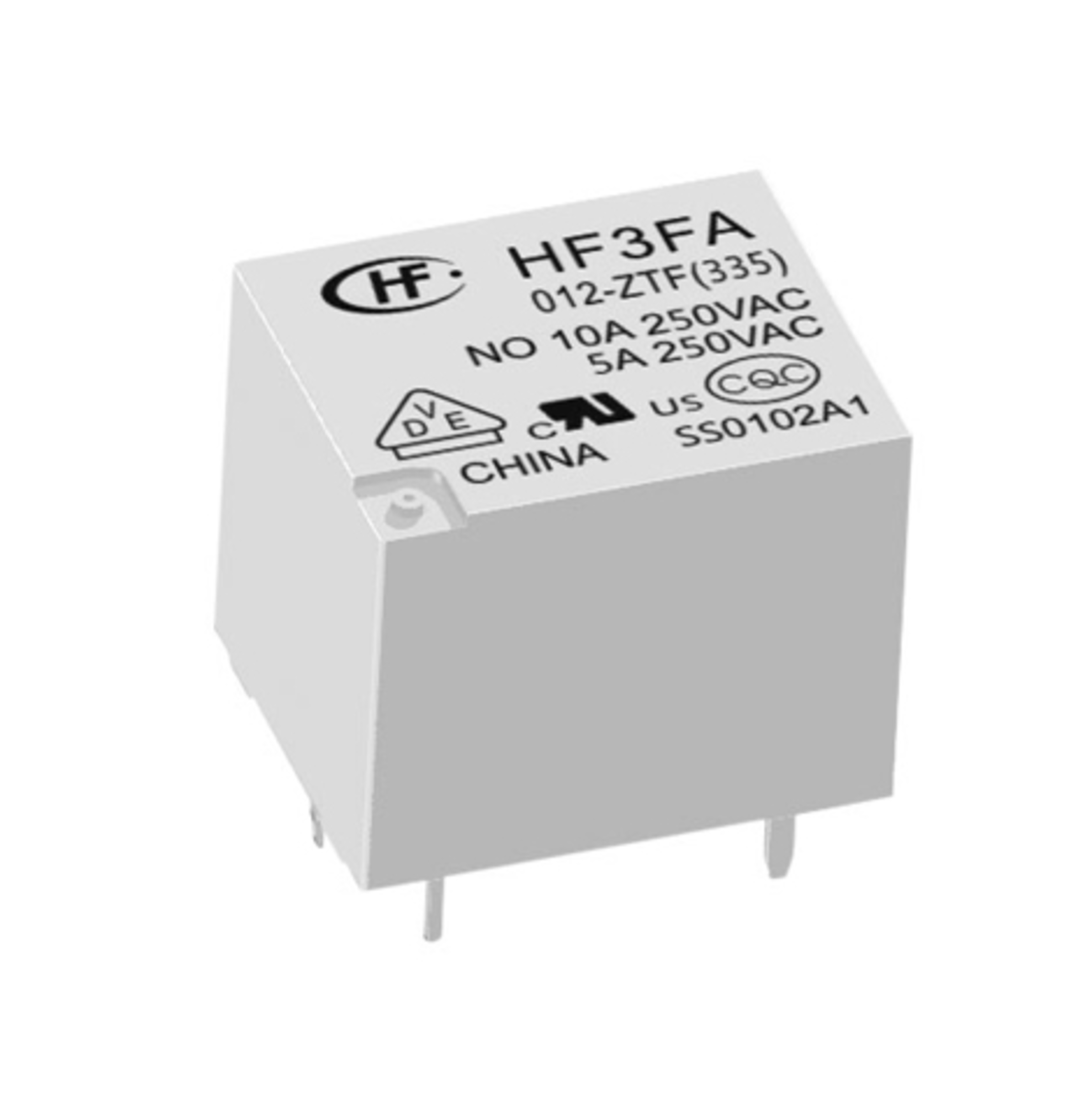

Hongfa Power relay HF3FA THT SPDT 10A 5VDC 7Ohm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
210 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- HF3FA
- Rated voltage DC
- 5 V DC
- Switching current
- 10 A

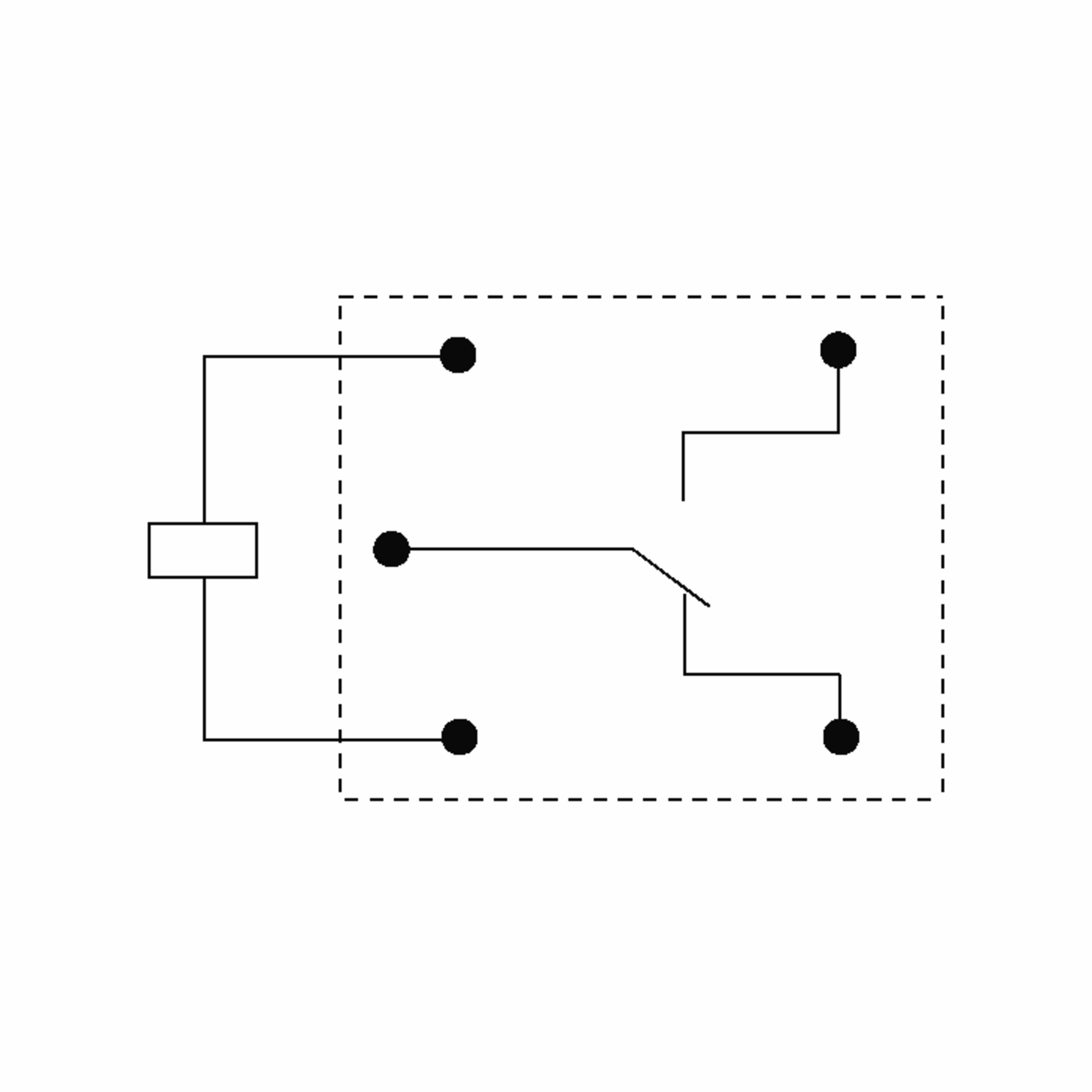

- contacts
- SPDT
- Coil resistance
- 7 Ohm
- Dimension: Length
- 19 mm
- Dimension: Width
- 15.2 mm
- Dimension: Height
- 15.5 mm
- RoHS-Conform
Specifications
Open all

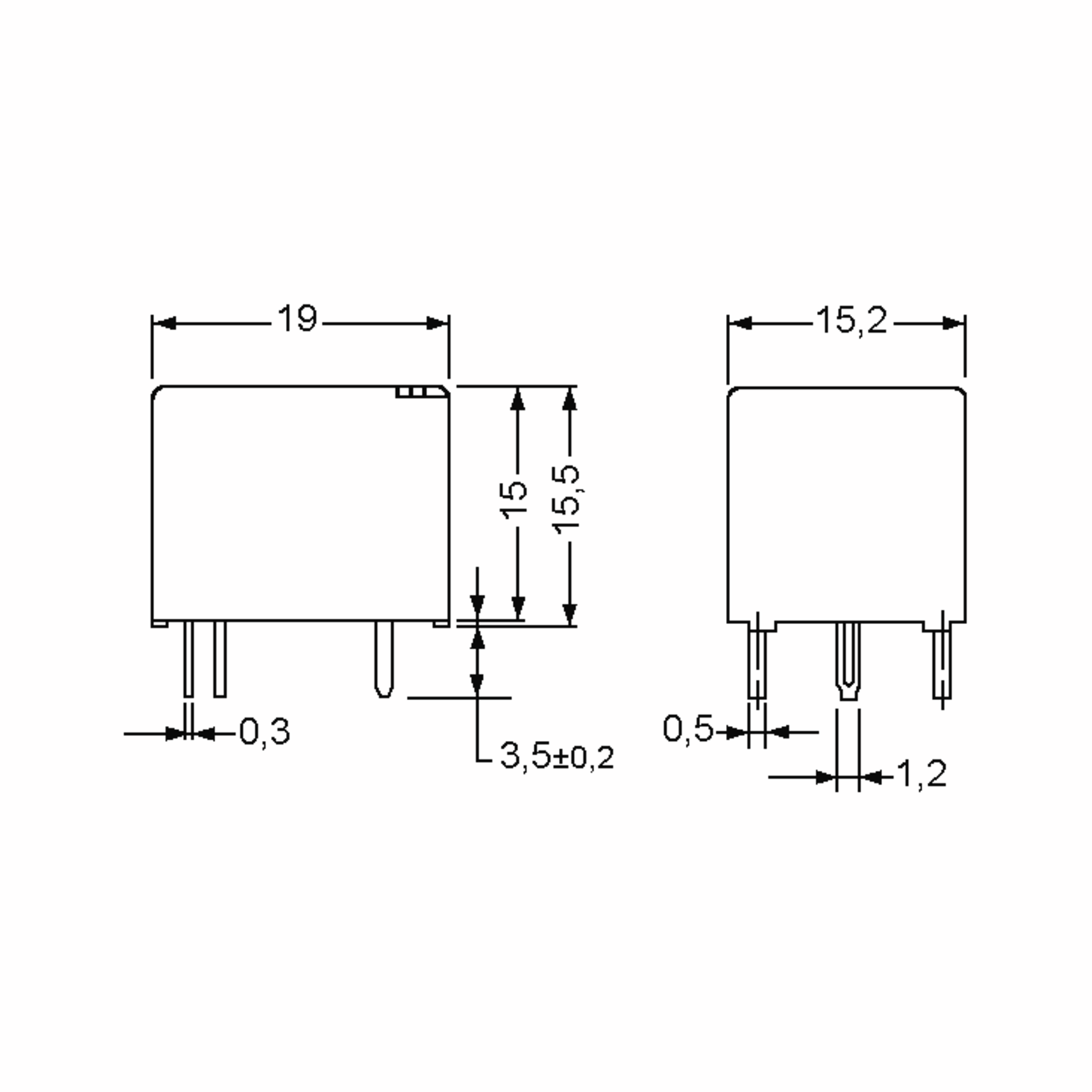

Dimensions and weights
- Dimension: Length
- 19 mm
- Dimension: Width
- 15.2 mm
- Dimension: Height
- 15.5 mm
- Weight
- 7.2 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Rated voltage DC
- 5 V DC
- Coil design
- Switching voltage, max. AC
- 277 V AC
- Switching voltage, max. DC
- 28 V DC
- Response voltage
- 0.5 V
- Drop-out voltage
- 3.75 V
- Test voltage open contacts
- 750 V AC
- Test voltage coil/contact
- 2,500 V AC
- Switching current
- 10 A
- Rated power
- 360 mW
- Switching capacity (VA)
- 2,770 VA
- Switching capacity (W)
- 280 W
- Coil resistance
- 7 Ohm
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 98 m/s²
Safety/Certifications
- Approvals
- CQC
- VDE
- cULus
