HF161F-W/009-HT

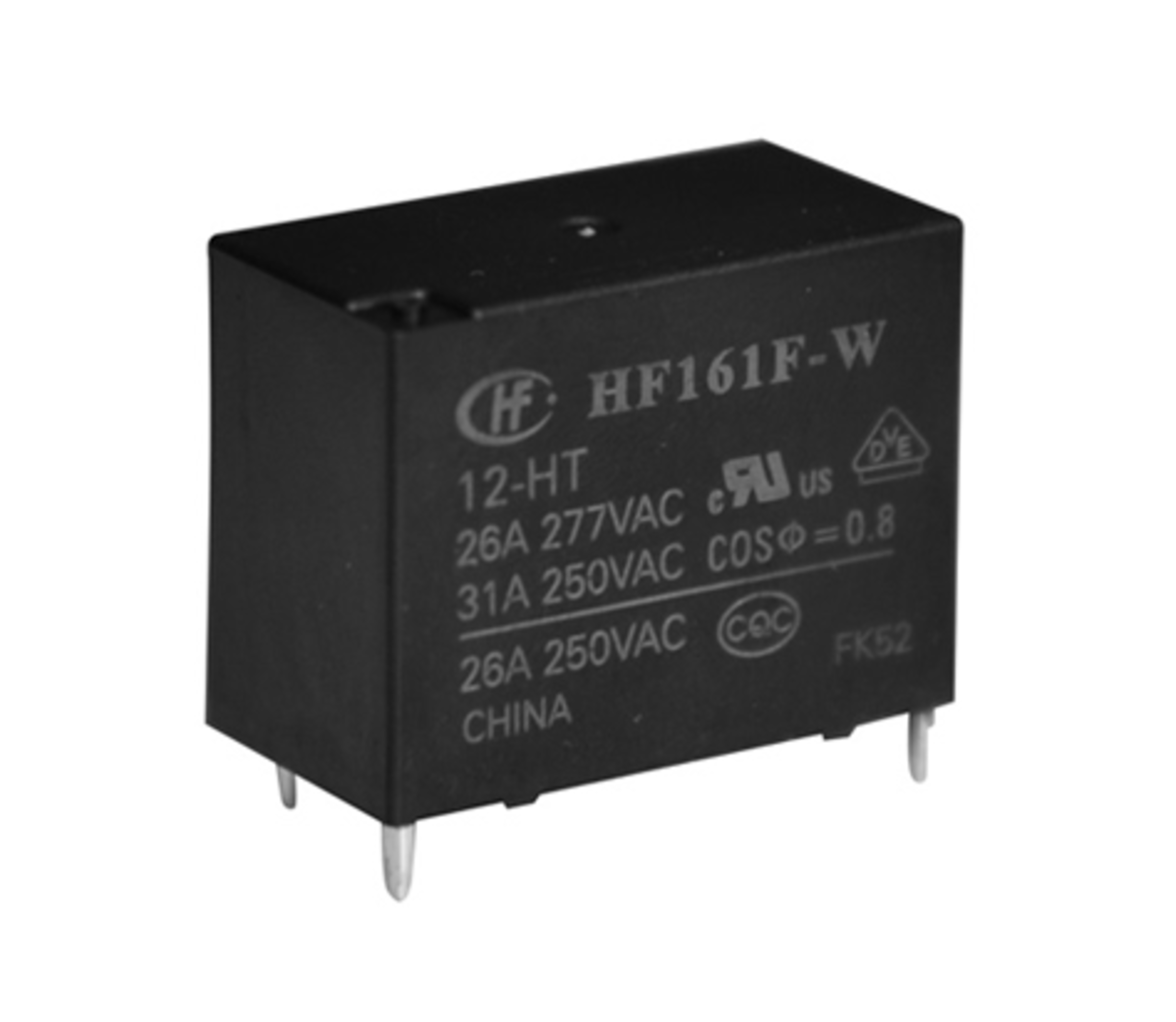

Hongfa Power relay HF161F-W THT SPST-NO 31A 9VDC 58Ohm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
100 Pcs.
100 Pcs.
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- HF161F-W
- Rated current
- 26 A
- Rated voltage DC
- 9 V DC
- Dielectric strength
- 10 kV
- Switching current
- 31 A
- Rated voltage, max. DC
- 10.8 V DC
- contacts
- SPST-NO
- Coil resistance
- 58 Ohm
- Dimension: Length
- 30.4 mm
- Dimension: Width
- 15.9 mm
- Dimension: Height
- 23.3 mm
- RoHS-Conform
Specifications
Open all

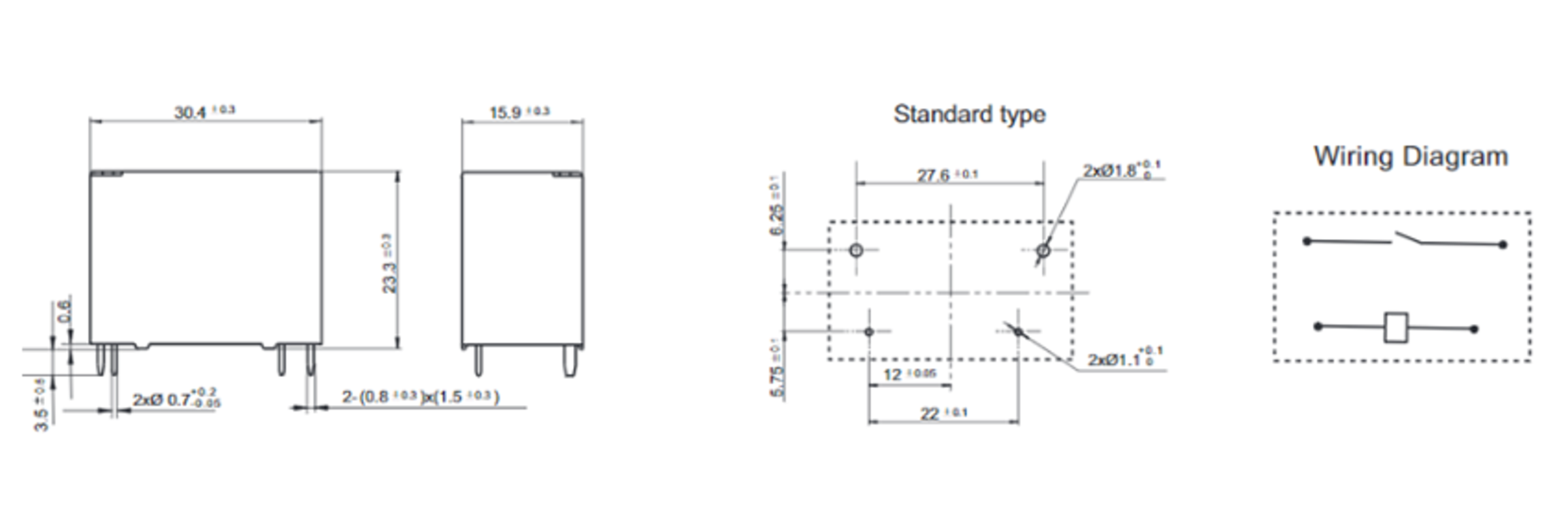

Dimensions and weights
- Dimension: Length
- 30.4 mm
- Dimension: Width
- 15.9 mm
- Dimension: Height
- 23.3 mm
- Weight
- 21 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 9 V DC
- Rated voltage, max. DC
- 10.8 V DC
- Coil design
- monostable
- Switching voltage, max. AC
- 277 V AC
- Response voltage
- 6.3 V
- Drop-out voltage
- 0.9 V
- Test voltage open contacts
- 2,500 V AC
- Test voltage coil/contact
- 4,500 V AC
- Creepage distance
- 8 mm
- Rated current
- 26 A
- Switching current
- 31 A
- Dielectric strength
- 10 kV
- Rated power
- 1,400 mW
- Switching capacity (VA)
- 7,750 VA
- Coil resistance
- 58 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 20 ms
- Drop-out time
- 10 ms
- Vibration resistance
- 1,5 mm DA
Safety/Certifications
- Approvals
- CQC
- VDE
- cULus
- Standards
- IEC 62109-2-2011
