HF115F/048-1HS3AF

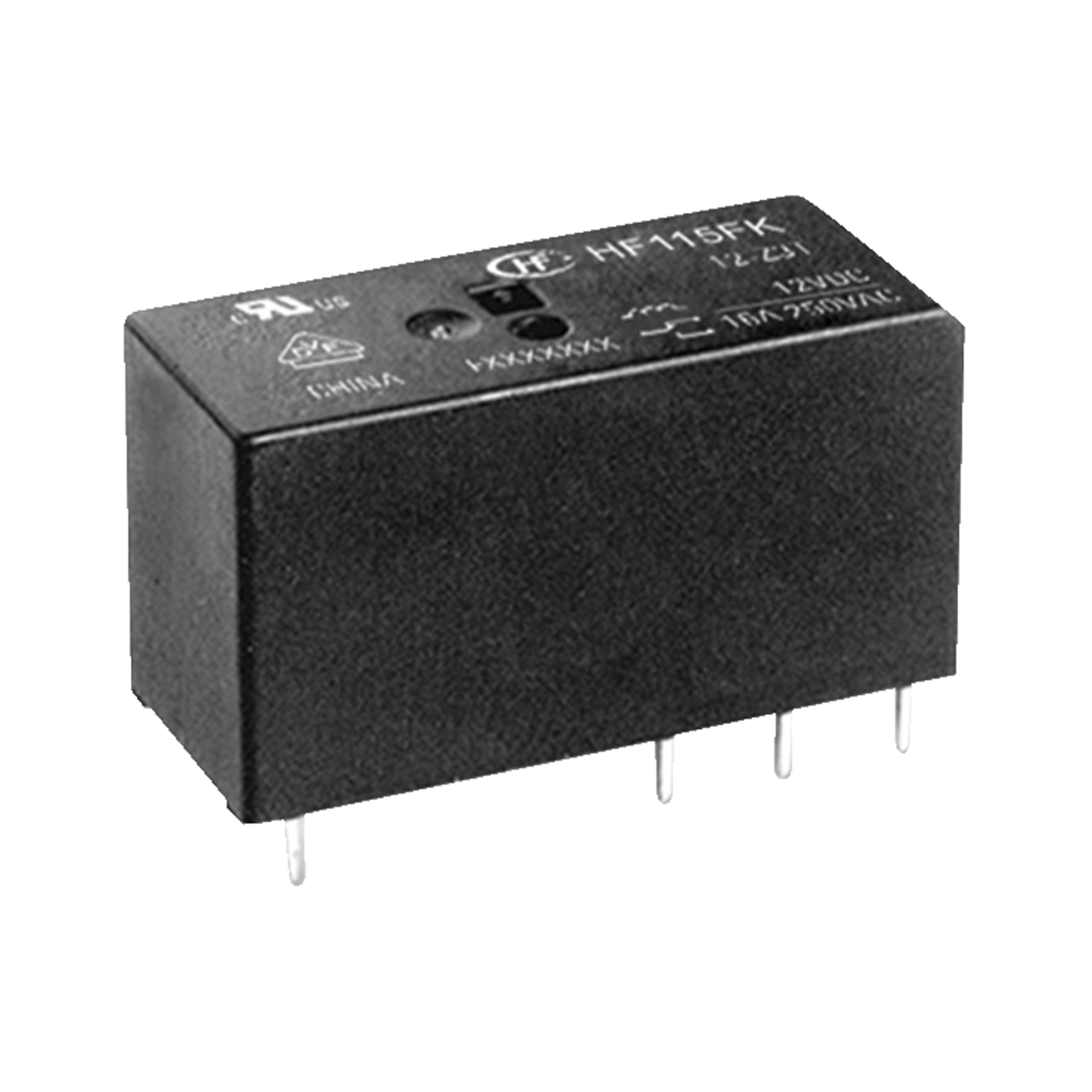

Hongfa PC relay HF115F THT SPST-NO 16A 48VDC 5.670Ohm 29mmx12,7mmx15,7mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 14.04.2022
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- HF115F
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage DC
- 48 V DC
- Coil resistance
- 5,670 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

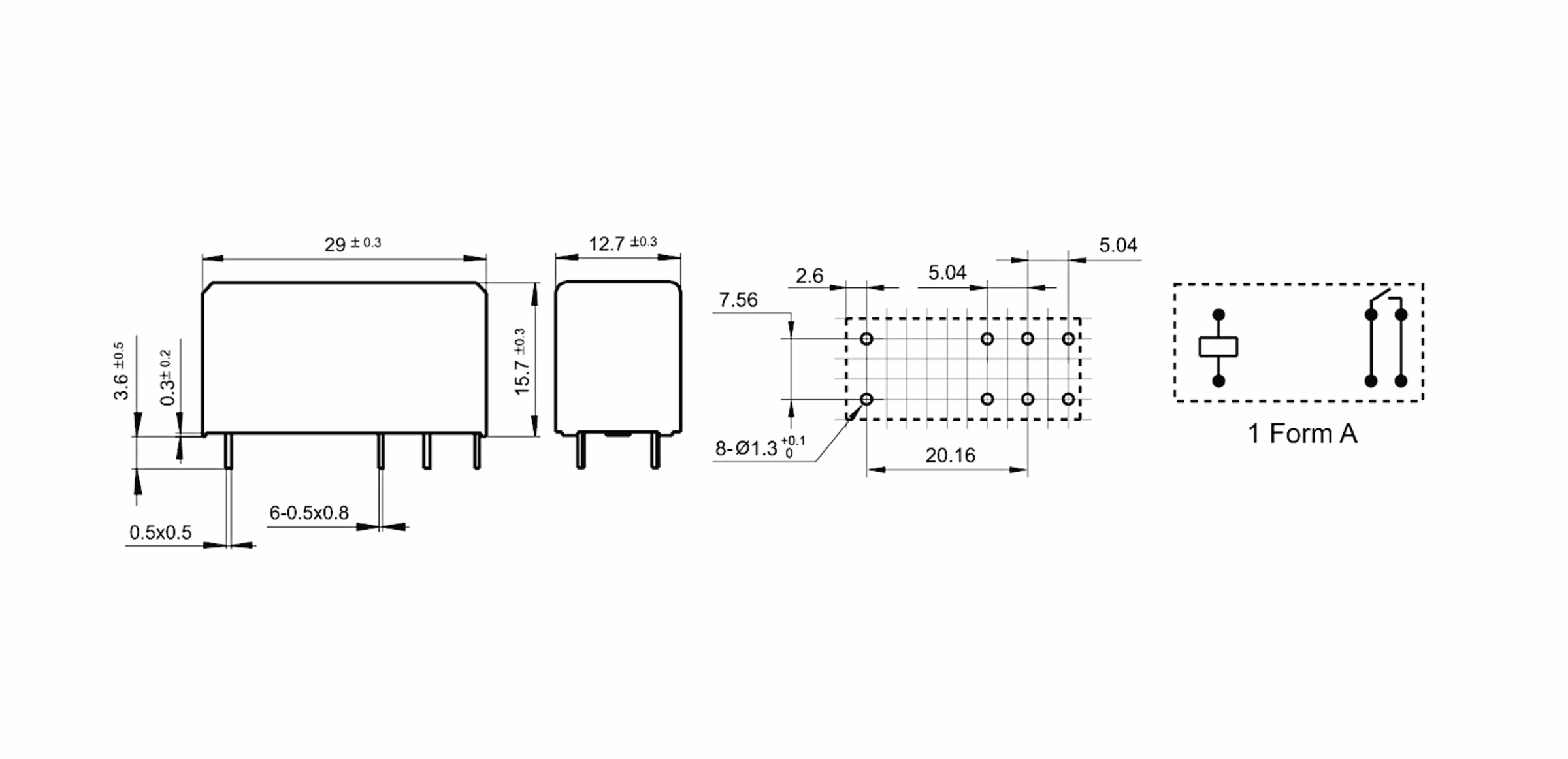

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 13.5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 16 A
- Contact: Switching Voltage, max. AC
- 440 V AC
- Contact: Switching Voltage, max. DC
- 300 V DC
- Contact: Switching Capacity (VA)
- 4,000 VA
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 5,670 Ohm
- Inductor power
- 400 mW
- Coil: Nominal Voltage DC
- 48 V DC
- Coil: Operating Voltage, max.
- 72 V
- Coil: Pick-up voltage
- 33.6 V
- Coil: Drop-out Voltage
- 4.8 V
- Test voltage contact/contact
- 2,500 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 15 ms
- Drop-out time
- 15 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- see data sheet
- Insulation resistance
- 1.000 MOhm
- Impact resistance, functional
- 98 m/s²
Safety/Certifications
- Approvals
- CQC
- VDE
- cULus
- Standards
- VDE 0700 0631
- Protection class RT
- RTII
