HF115F/012-1ZS3A

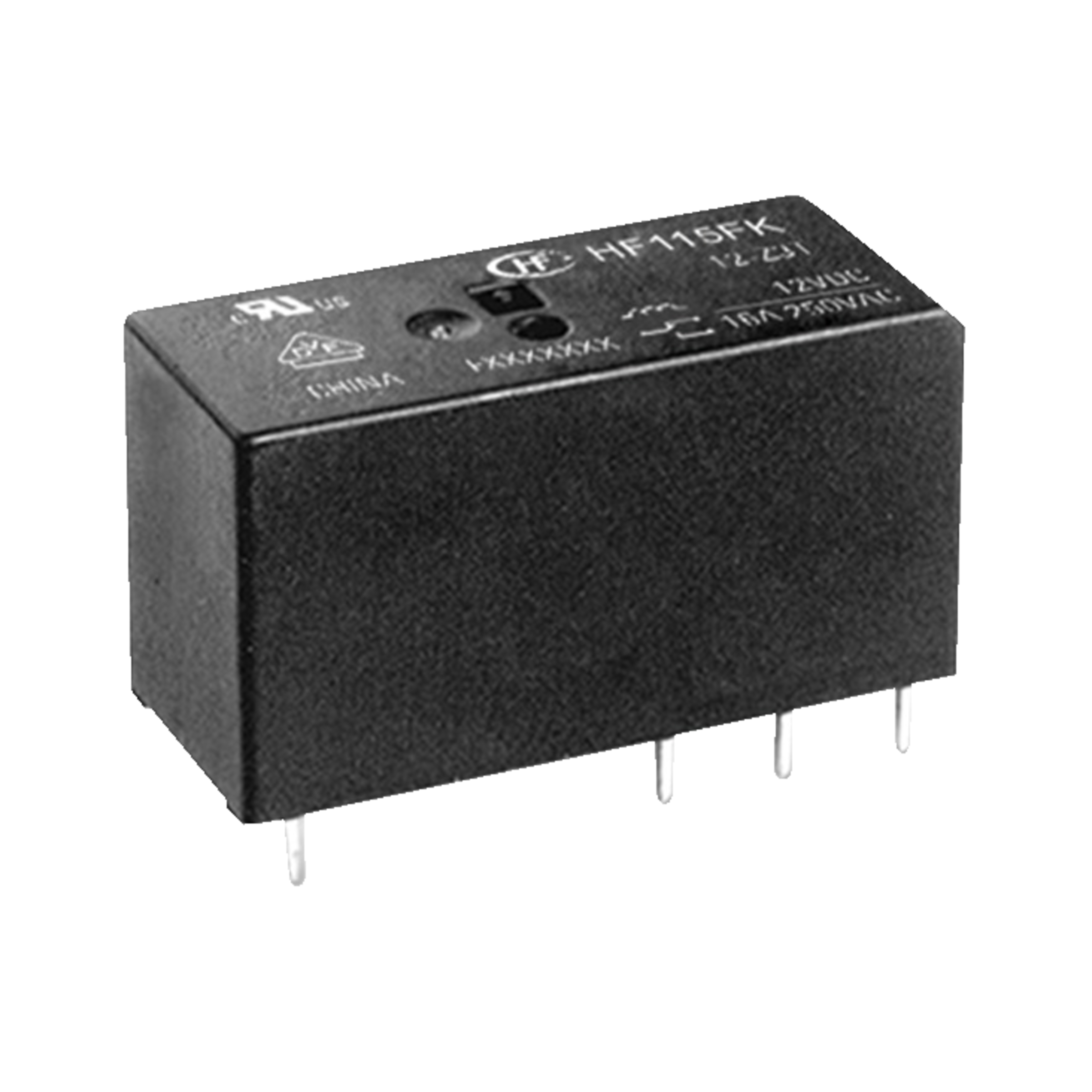

Hongfa Power relay HF115F THT SPDT 16A 12VDC 360Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
160 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- HF115F
- Rated voltage DC
- 12 V DC
- Switching current
- 16 A
- contacts
- SPDT
- Coil resistance
- 360 Ohm

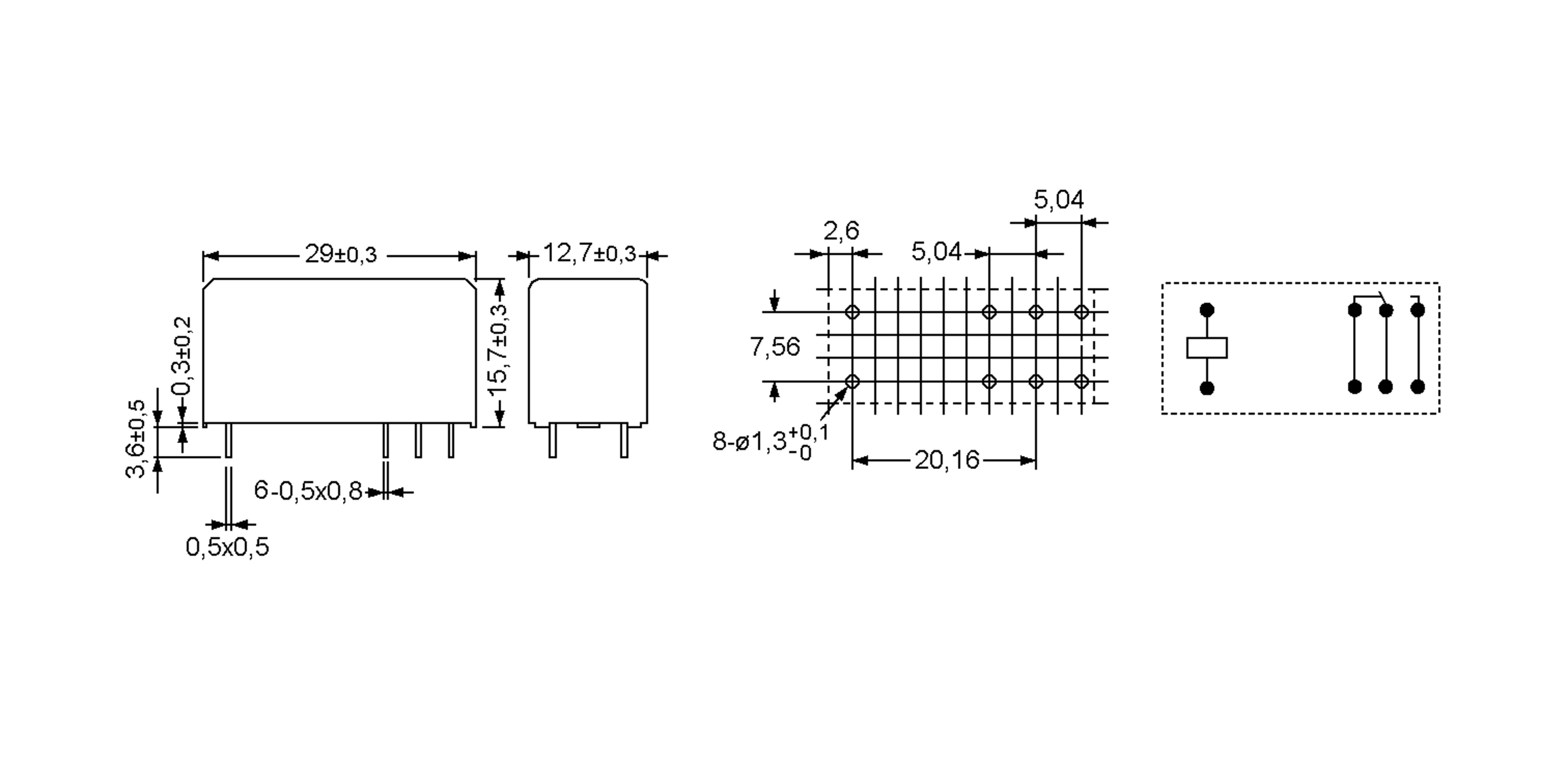

- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 13 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 440 V AC
- Switching voltage, max. DC
- 300 V DC
- Response voltage
- 8.4 V
- Drop-out voltage
- 1.2 V
- Operating voltage, max.
- 18 V
- Test voltage contact/contact
- 2,500 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Creepage distance
- 10 mm
- Switching current
- 16 A
- Rated power
- 400 mW
- Switching capacity (VA)
- 4,000 VA
- Coil resistance
- 360 Ohm
- Insulation resistance
- 1.000 MOhm
- Response time
- 15 ms
- Drop-out time
- 15 ms
- Impact resistance, functional
- 98 m/s²
Safety/Certifications
- Approvals
- CQC
- VDE
- cULus
- Standards
- VDE 0700 0631
- Protection class RT
- RTII
