GLCB01A2A

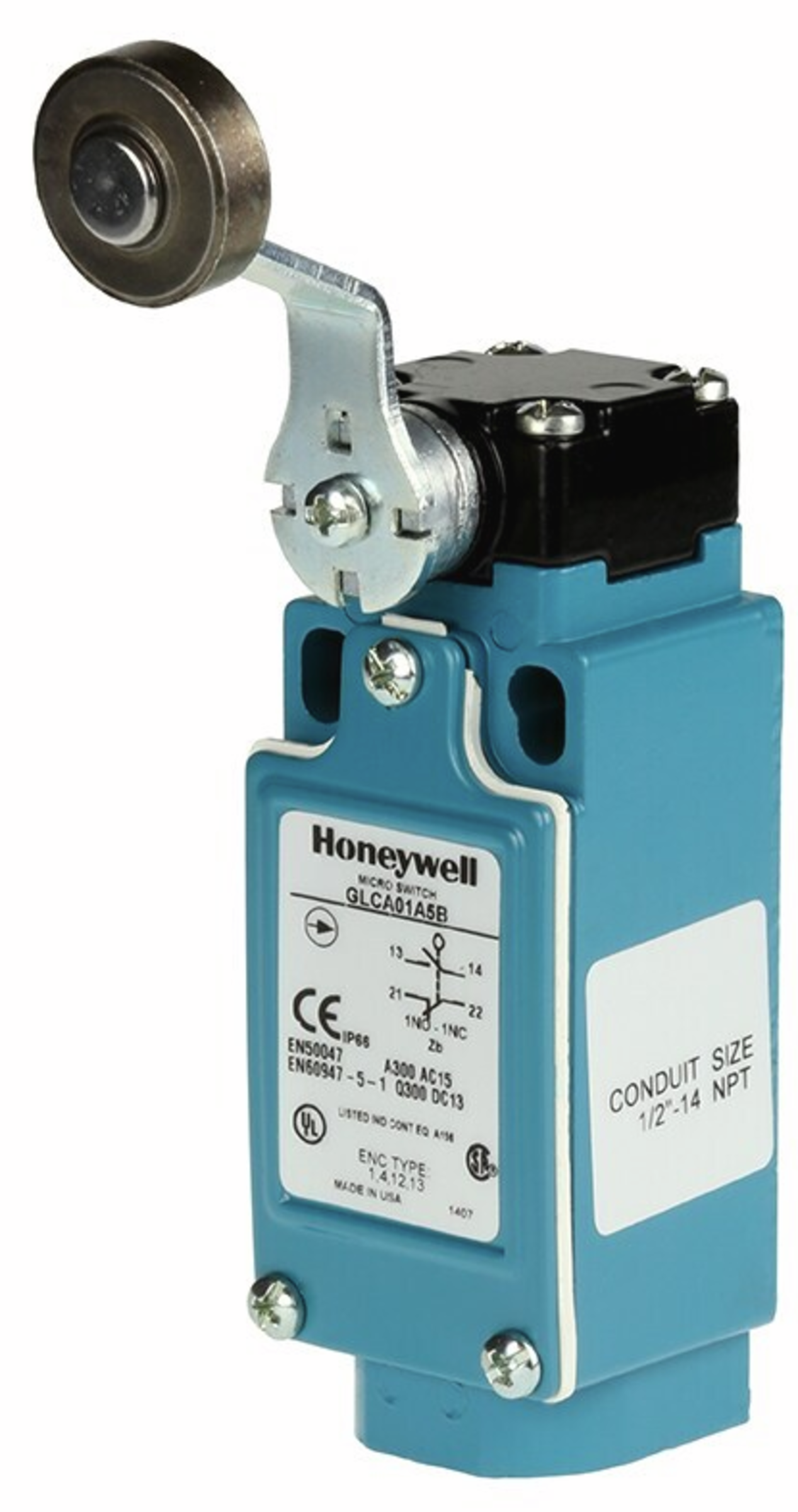

Honeywell Micro Switches GLC 1xCO Rotary roller lever 3A 0,12N

GLCB01A2A
NEW
Manufacturer Part No.
GLCB01A2A
Schukat Part No.
GLCB01A2A
Manufacturer
Honeywell
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Micro Switches
Series
GLC
Body colour
blue
contacts
1xCO
Type of actuator
Rotary roller lever
Function
1xCO
Actuator colour
silver
Number of poles
1
illumination
unlit
Operating voltage AC
240 V AC
Switching current, max.
3 A
Actuating force, max.
0,12 N
Operating temperature range, min.
-40 °C
Operating temperature range, max.
85 °C
Approvals
CCC
CE
UK CA
UL
cCSA
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Honeywell
Series
  • GLC
Product group
  • E2716
Type
  • Micro Switches
contacts
  • 1xCO
Function
  • 1xCO
Body colour
  • blue
Type of actuator
  • Rotary roller lever
Actuator colour
  • silver
illumination
  • unlit
Features

  • - with PG13.5 cable gland

Product description
  • Honeywell MICRO SWITCH GLS miniature limit switch family offers a wide range of products for global solutions. These durable and reliable limit switches are suitable for many industrial applications, agriculture equipment, transportation equipment, and other applications requiring an environmentally sealed (IP and NEMA) switch. The compact housings are often ideal for equipment where space is at a premium. The extensive product range is available in three different housing types; metal housing, plastic housing or a three conduit metal housing which are mounting compatible to EN50047. A wide range of actuators, contact blocks, and conduit/ connectivity options enhance the product offering. In today’s demanding age of logic-level controls, electromechanical switches are frequently used to interface with PLCs and other logic level devices. GLS limit switches offer an option for gold-plated contacts for the standard switch. This option promotes the switch reliability for logic-level applications.

Dimensions and Weights

Dimension: Length
  • 31.1 mm
Dimension: Width
  • 30.5 mm
Dimension: Height
  • 101.6 mm

Operating conditions

Operating temperature range, min.
  • -40 °C
Operating temperature range, max.
  • 85 °C

Technical Features

Operating voltage AC
  • 240 V AC
Switching current, max.
  • 3 A
Material: Terminals
  • Silver

Mechanical properties

Connection
  • Screw connection
Actuating force, max.
  • 0,12 N
Number of poles
  • 1

Safety/Certifications

Approvals
  • CCC
  • CE
  • UK CA
  • UL
  • cCSA
