BZE7-2RN-C

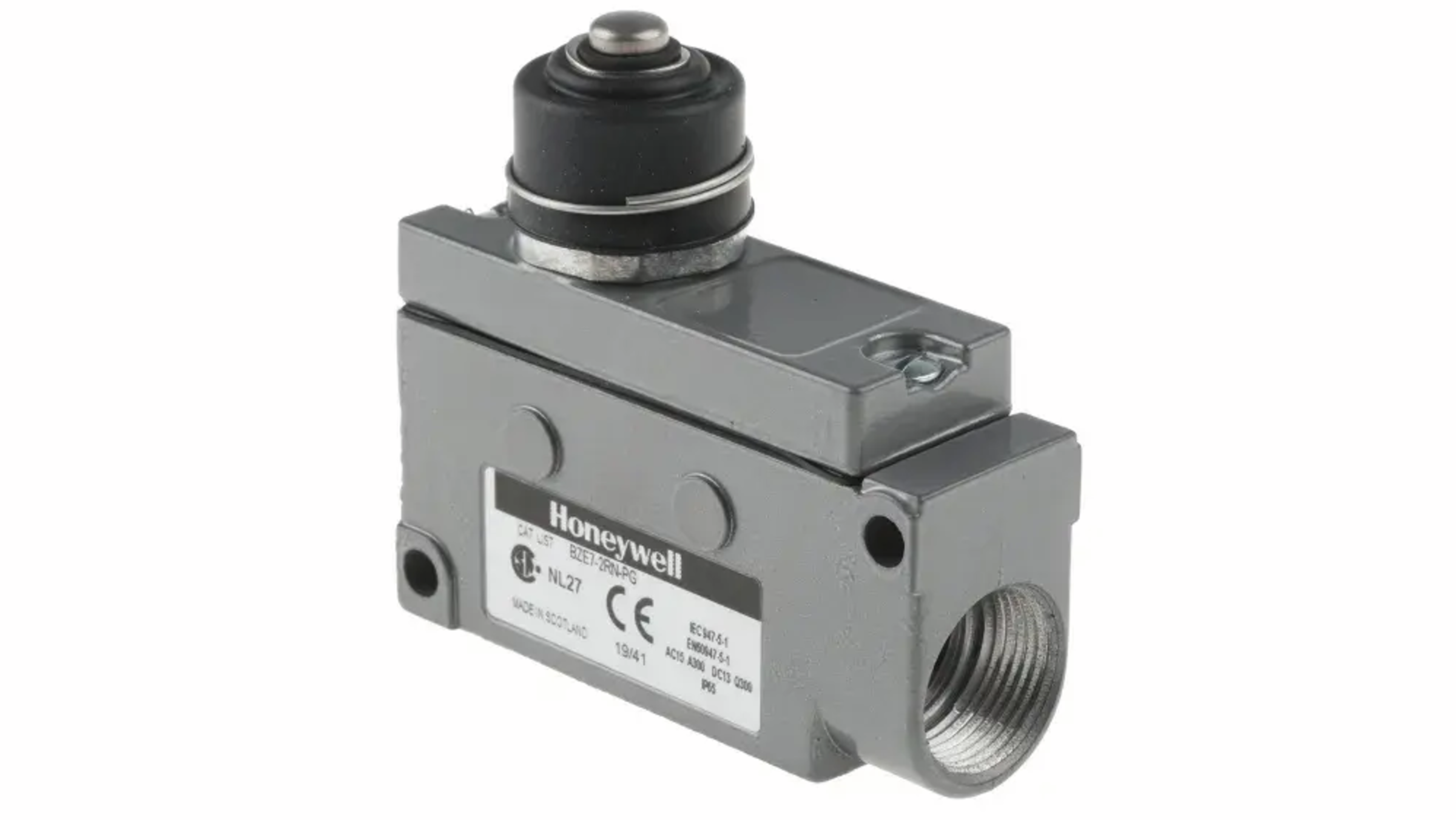

Honeywell Micro Switches BZE 1xCO Plunger 10A 6,67N

BZE7-2RN-C
NEW
Manufacturer Part No.
BZE7-2RN-C
Schukat Part No.
BZE7-2RN-C
Manufacturer
Honeywell
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 38/2026
4 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Micro Switches
Series
BZE
Body colour
gray
contacts
1xCO
Type of actuator
Plunger
Function
1xCO
Actuator colour
black
Number of poles
1
illumination
unlit
Operating voltage AC
240 V AC
Switching current, max.
10 A
Actuating force, max.
6,67 N
Operating temperature range, min.
-30 °C
Operating temperature range, max.
70 °C
Protection class
IP65
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Honeywell
Series
  • BZE
Product group
  • E2712
Type
  • Micro Switches
contacts
  • 1xCO
Function
  • 1xCO
Body colour
  • gray
Type of actuator
  • Plunger
Actuator colour
  • black
illumination
  • unlit
Product description
  • Honeywell MICRO SWITCH E7/V7 Series medium duty limit switches are designed for a wide variety of indoor and outdoor applications. Typical applications include equipment for commercial, industrial, and transportation industries. The electrostatic applied epoxy coating to the aluminum housings enhances the durability of the product in most applications. The E7/V7 family of switches incorporates the Honeywell MICRO SWITCH BZ switch element which has the reliable snap-spring mechanism with more than 60 years of proven service. The sealed (plungers with boots) E7/V7 Series are preferred for applications where there could be exposure to liquid and/or particulate environments. The unsealed E7/V7 Series are ideal for applications where there will not be exposure to liquid or dust environments. The compact size of the limit switch permits installation where there is limited space available on equipment. The SPDT (Single Pole Double Throw) E7/E7S/V7/E9 Series of catalog listings are certified to CE, UKCA and CSA for worldwide applications. While the DPDT (Double Pole Double Throw) E7/E7S/V7/E9 Series of catalog listings are certified to CE and UKCA for many applications.

Dimensions and Weights

Dimension: Length
  • 76.4 mm
Dimension: Width
  • 25.4 mm
Dimension: Height
  • 45.21 mm

Operating conditions

Operating temperature range, min.
  • -30 °C
Operating temperature range, max.
  • 70 °C

Technical Features

Operating voltage AC
  • 240 V AC
Switching current, max.
  • 10 A
Material: Terminals
  • Silver

Mechanical properties

Connection
  • Screw connection
Actuating force, max.
  • 6,67 N
Number of poles
  • 1

Safety/Certifications

Protection class
  • IP65

Other Products

All Products of the Series
NEW
Loading...
BZE7-2RN2-C
Honeywell
Micro Switches BZE 1xCO Roller lever 10A 5,56N
from €235.06
NEW
Loading...

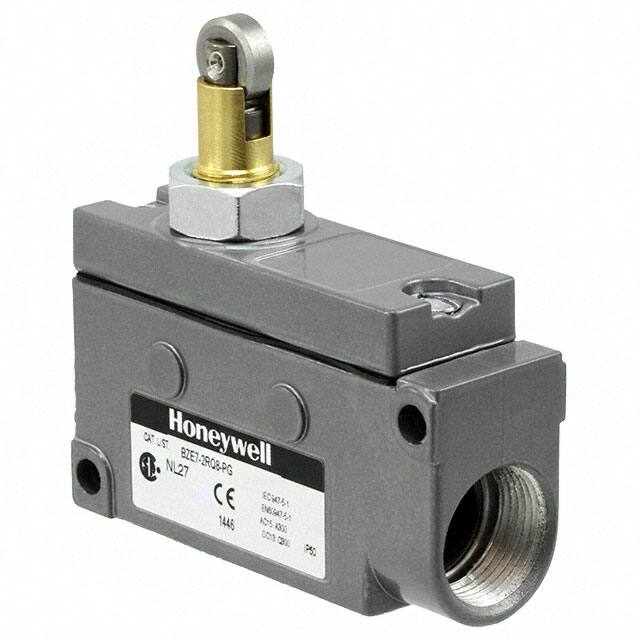

BZE7-2RQN8-C
