1SE1

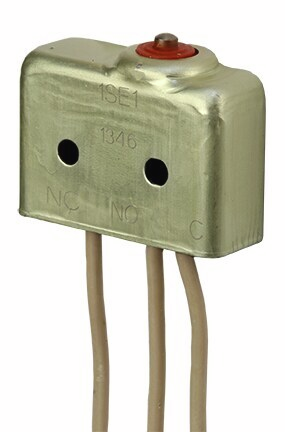

Honeywell Micro Switches SE 1xCO Plunger 5A 4,72N

1SE1
NEW
%
Manufacturer Part No.
1SE1
Schukat Part No.
1SE1
Manufacturer
Honeywell
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 24/2026
10 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Micro Switches
Series
SE
Body colour
silver
contacts
1xCO
Type of actuator
Plunger
Function
1xCO
Actuator colour
silver
Diameter
15.28 mm
Number of poles
1
illumination
unlit
Switching current, max.
5 A
Operating voltage DC
28 V DC
Actuating force, max.
4,72 N
Operating temperature range, min.
-53 °C
Operating temperature range, max.
105 °C
Approvals
UL
cCSA
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Honeywell
Series
  • SE
Product group
  • E2712
Type
  • Micro Switches
contacts
  • 1xCO
Function
  • 1xCO
Body colour
  • silver
Type of actuator
  • Plunger
Actuator colour
  • silver
illumination
  • unlit
Features

  • - Length of the cord: 30 cm

Product description
  • The MICRO SWITCH SE and XE Series miniature sealed switches are designed for precise and reliable position indication on aircraft and military systems. These switches are also suitable for other commercial and industrial applications where a degree of environmental sealing is required. The SE Series switches incorporate the premium snap-action SM basic switch into the SE housing. The approximate 22 mm x 18 mm x 9 mm package size of the SE switch housing is suitable where there is limited space on equipment. The SE Series is environmentally sealed to symbol 3 “watertight” per MILPRF-8805. Select SE Series switches are also UL and CSA certifications. The XE Seriesswitches are similar to the SE Series switches except in a smaller package size of approximately 16 mm x 18 mm x 8 mm. The XE Series switches incorporate the premium snap-action SX basic switch. The XE Series switches are alsoenvironmentally sealed to symbol 3 “watertight” per MIL-PRF-8805. Select XE Series switches are UL certified and MIL-PRF-8805 qualified.

Dimensions and Weights

Dimension: Length
  • 22.5 mm
Dimension: Width
  • 8.79 mm
Diameter
  • 15.28 mm

Operating conditions

Operating temperature range, min.
  • -53 °C
Operating temperature range, max.
  • 105 °C

Technical Features

Operating voltage DC
  • 28 V DC
Switching current, max.
  • 5 A
Material: Body
  • Aluminum, anodized
Material: Terminals
  • Silver

Mechanical properties

Connection
  • Strand
Actuating force, max.
  • 4,72 N
Number of poles
  • 1

Safety/Certifications

Approvals
  • UL
  • cCSA

Other Products

All Products of the Series
NEW
%
Loading...
1SE1-3
Honeywell
Micro Switches SE 1xCO Plunger 5A 4,72N
from €171.82
NEW
Loading...

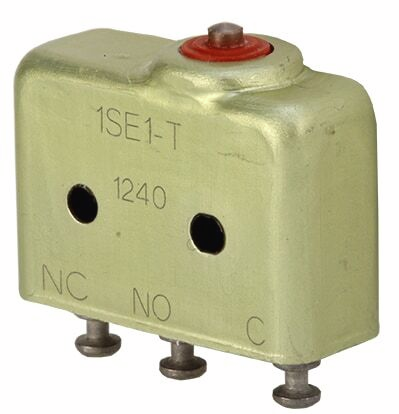

1SE1-T
