1LS3

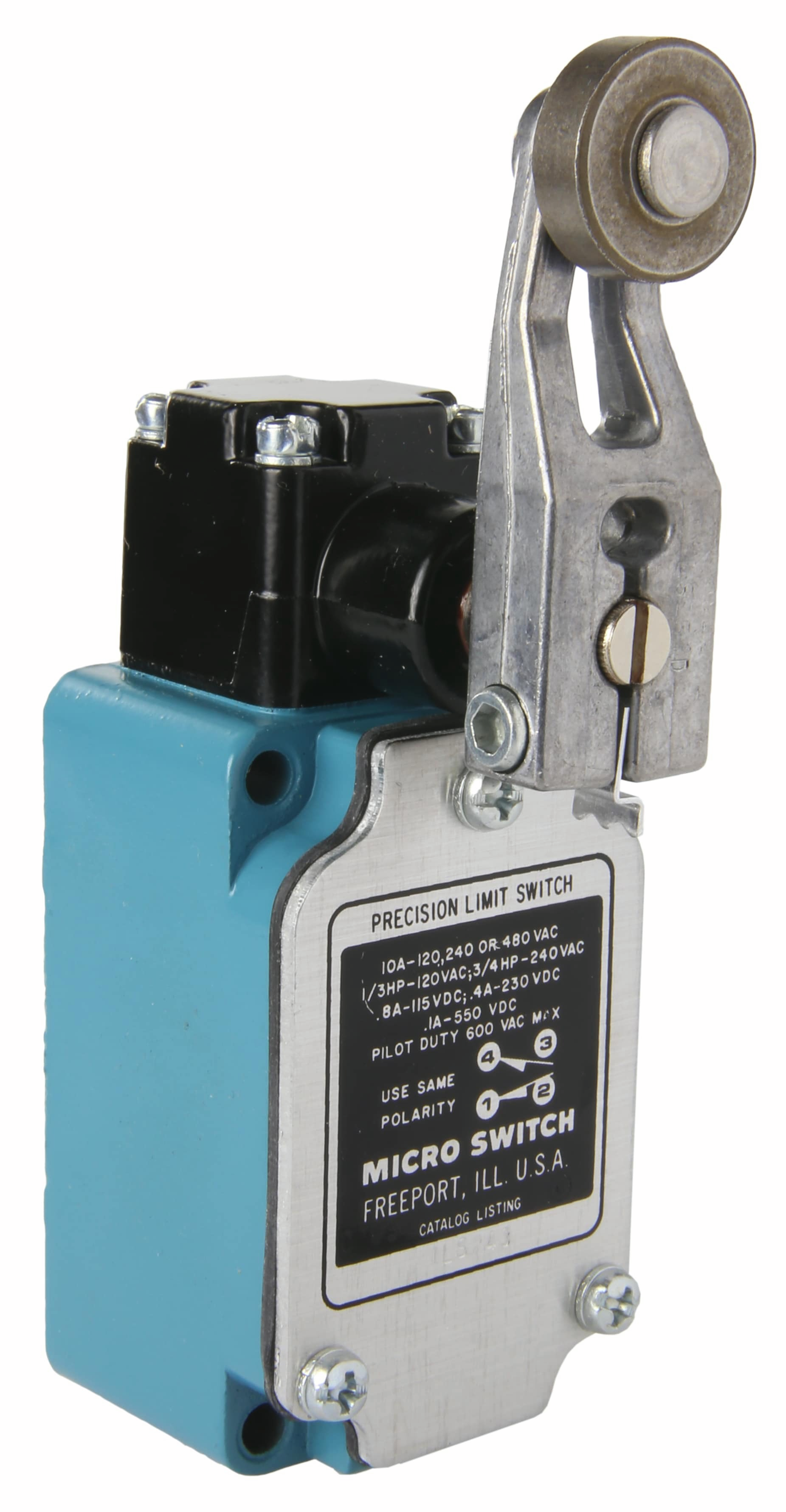

Honeywell Micro Switches LS 1xCO Rotary roller lever 10A 0,51N
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Micro Switches
- Series
- LS
- Body colour
- blue
- contacts
- 1xCO
- Type of actuator
- Rotary roller lever
- Function
- 1xCO
- Actuator colour
- silver
- Number of poles
- 1
- illumination
- unlit
- Operating voltage AC
- 480 V AC
- Switching current, max.
- 10 A
- Actuating force, max.
- 0,51 N
- Operating temperature range, min.
- -29 °C
- Operating temperature range, max.
- 71 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 40.64 mm
- Dimension: Width
- 40 mm
- Dimension: Height
- 93.98 mm
Operating conditions
- Operating temperature range, min.
- -29 °C
- Operating temperature range, max.
- 71 °C
Technical Features
- Operating voltage AC
- 480 V AC
- Switching current, max.
- 10 A
- Material: Actuator
- Nylon
- Material: Terminals
- Silver
Mechanical properties
- Connection
- Screw connection
- Actuating force, max.
- 0,51 N
- Number of poles
- 1
