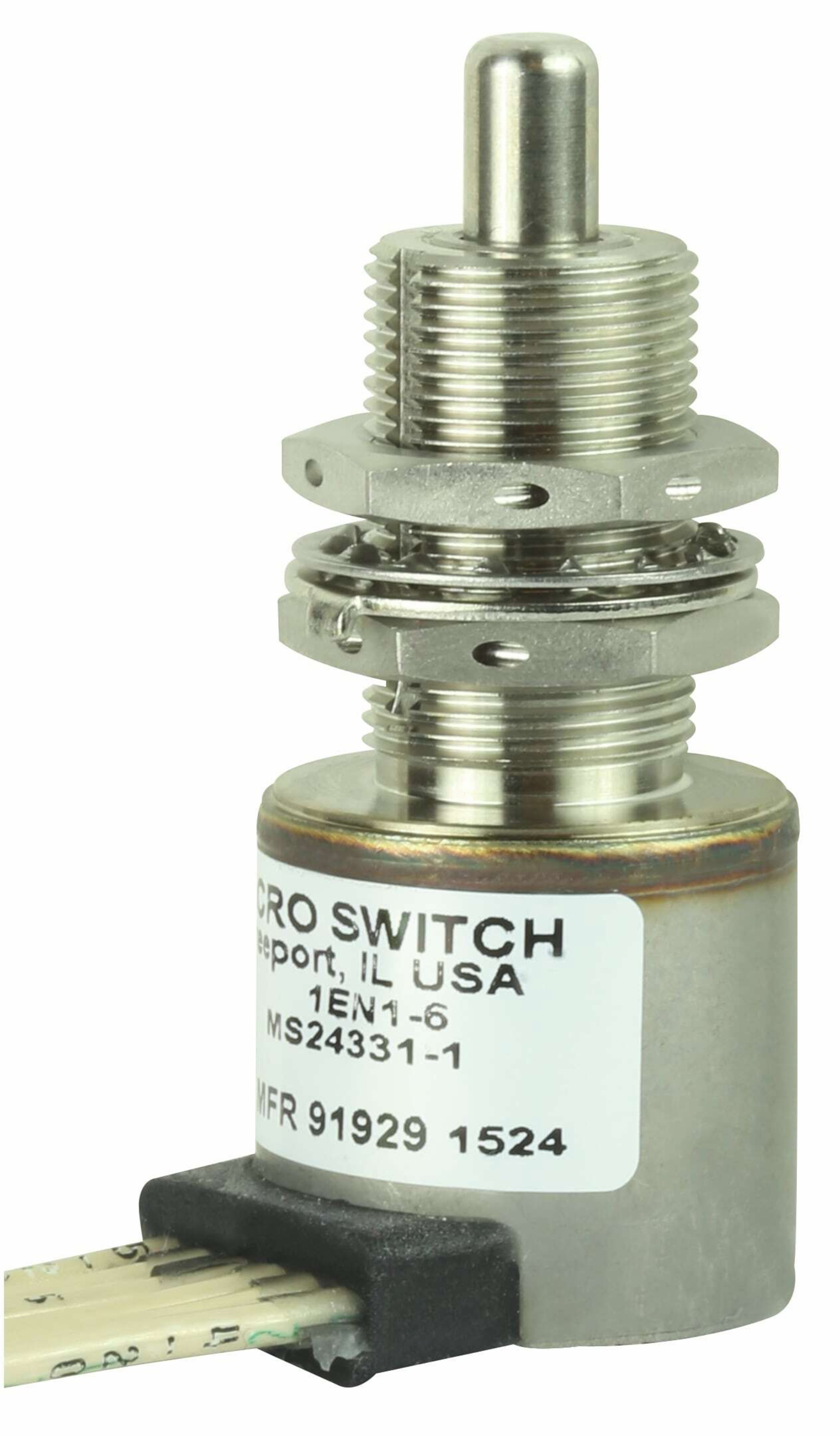

1EN1-6
Honeywell Micro Switches EN 2xCO Plunger 4A 53,4N
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 28/2026
10 Pcs.
10 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Micro Switches
- Series
- EN
- Body colour
- silver
- contacts
- 2xCO
- Type of actuator
- Plunger
- Function
- 2xCO
- Actuator colour
- silver
- Diameter
- 25.4 mm
- Number of poles
- 2
- illumination
- unlit
- Switching current, max.
- 4 A
- Operating voltage DC
- 28 V DC
- Actuating force, max.
- 53,4 N
- Operating temperature range, min.
- -54 °C
- Operating temperature range, max.
- 85 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Height
- 50.4 mm
- Diameter
- 25.4 mm
Operating conditions
- Operating temperature range, min.
- -54 °C
- Operating temperature range, max.
- 85 °C
Technical Features
- Operating voltage DC
- 28 V DC
- Switching current, max.
- 4 A
- Insulation resistance, min.
- 1,000 MOhm
- Material: Body
- Stainless steel
- Material: Terminals
- Silver
Mechanical properties
- Connection
- Strand
- Actuating force, max.
- 53,4 N
- Number of poles
- 2
