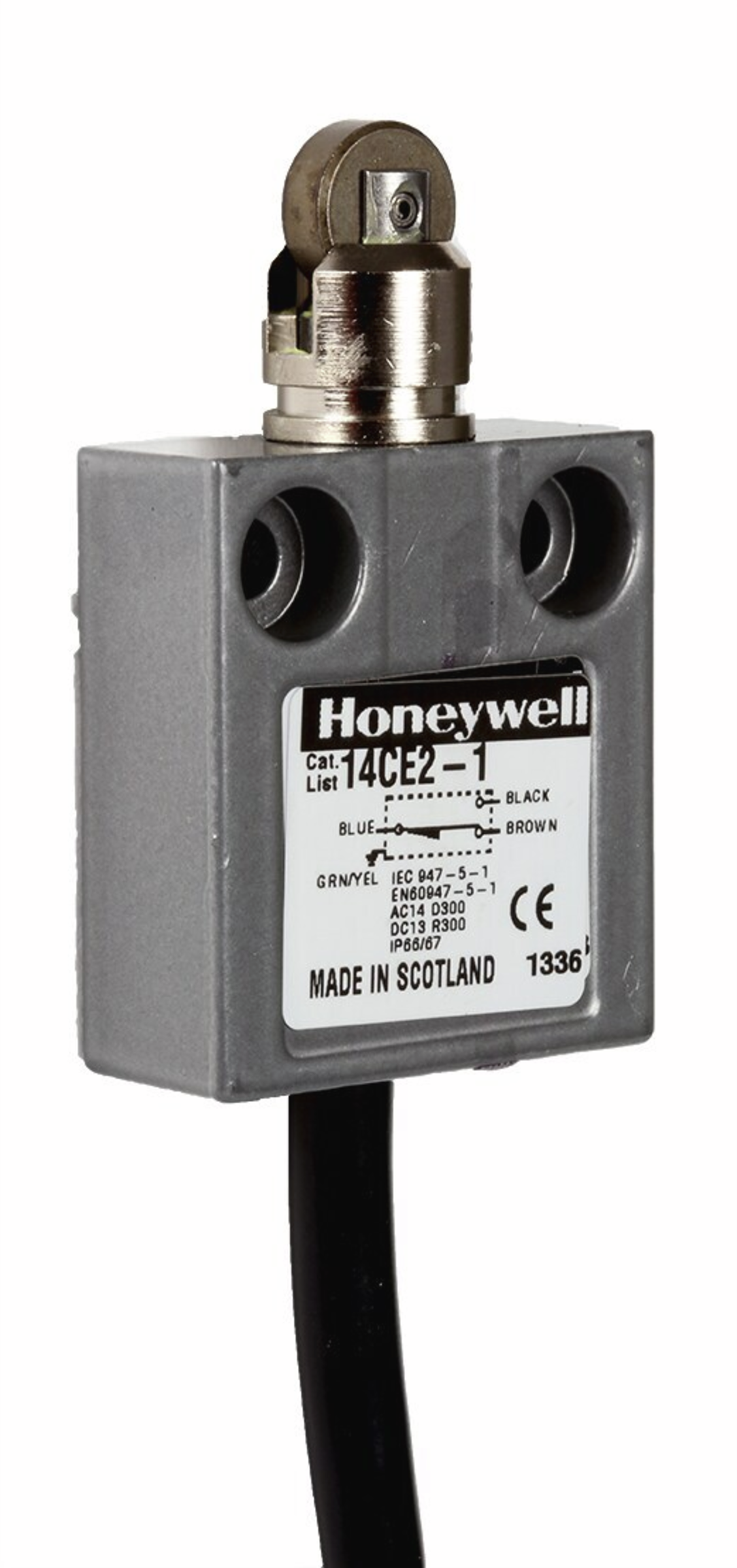

14CE2-1

Honeywell Micro Switches CE 1xCO Roller tappet 5A 11,8N

14CE2-1
NEW
Manufacturer Part No.
14CE2-1
Schukat Part No.
14CE2-1
Manufacturer
Honeywell
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

4 Pcs. in stock

Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Micro Switches
Series
CE
Body colour
gray
contacts
1xCO
Type of actuator
Roller tappet
Function
1xCO
Actuator colour
silver
Number of poles
1
illumination
unlit
Operating voltage AC
240 V AC
Switching current, max.
5 A
Actuating force, max.
11,8 N
Operating temperature range, min.
0 °C
Operating temperature range, max.
70 °C
Approvals
CE
Protection class
IP68
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Honeywell
Series
  • CE
Product group
  • E2716
Type
  • Micro Switches
contacts
  • 1xCO
Function
  • 1xCO
Body colour
  • gray
Type of actuator
  • Roller tappet
Actuator colour
  • silver
illumination
  • unlit
Product description
  • All MICRO SWITCH™ 14CE Series miniature precision switches incorporate fluorocarbon diaphragm sealing to provide reliable protection, meeting IP65, IP66, IP67, and IP68, as well as NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13 requirements. Versions with a boot seal also meet NEMA 12 requirements (dust, falling dirt, liquid media with solid contaminates). The cable or connector and basic switch terminals are encapsulated in an epoxy sealant, offering excellent resistance in harsh environments. For low temperature applications (down to -40 °C, -40 °F), CE Series switches can be supplied with low temperature seals and lubricant. The CE Series switches are rugged and versatile switches which can be applied indoors in many harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including pin plungers, roller plungers, side rotary, multi-directional wire, and manually operated. The switches are also available with the industry standard, M12 micro-change 4-pin connector. MICRO SWITCH 14CE products meet European and Asian CE requirements.

Dimensions and Weights

Dimension: Length
  • 40 mm
Dimension: Width
  • 16 mm
Dimension: Height
  • 44 mm

Operating conditions

Operating temperature range, min.
  • 0 °C
Operating temperature range, max.
  • 70 °C

Technical Features

Operating voltage AC
  • 240 V AC
Switching current, max.
  • 5 A
Material: Terminals
  • Silver

Mechanical properties

Connection
  • Strand
Actuating force, max.
  • 11,8 N
Number of poles
  • 1

Safety/Certifications

Approvals
  • CE
Protection class
  • IP68

Other Products

All Products of the Series
NEW
Loading...
14CE1-1
Honeywell
Micro Switches CE 1xCO Plunger 5A 11,8N
from €127.54
NEW
Loading...

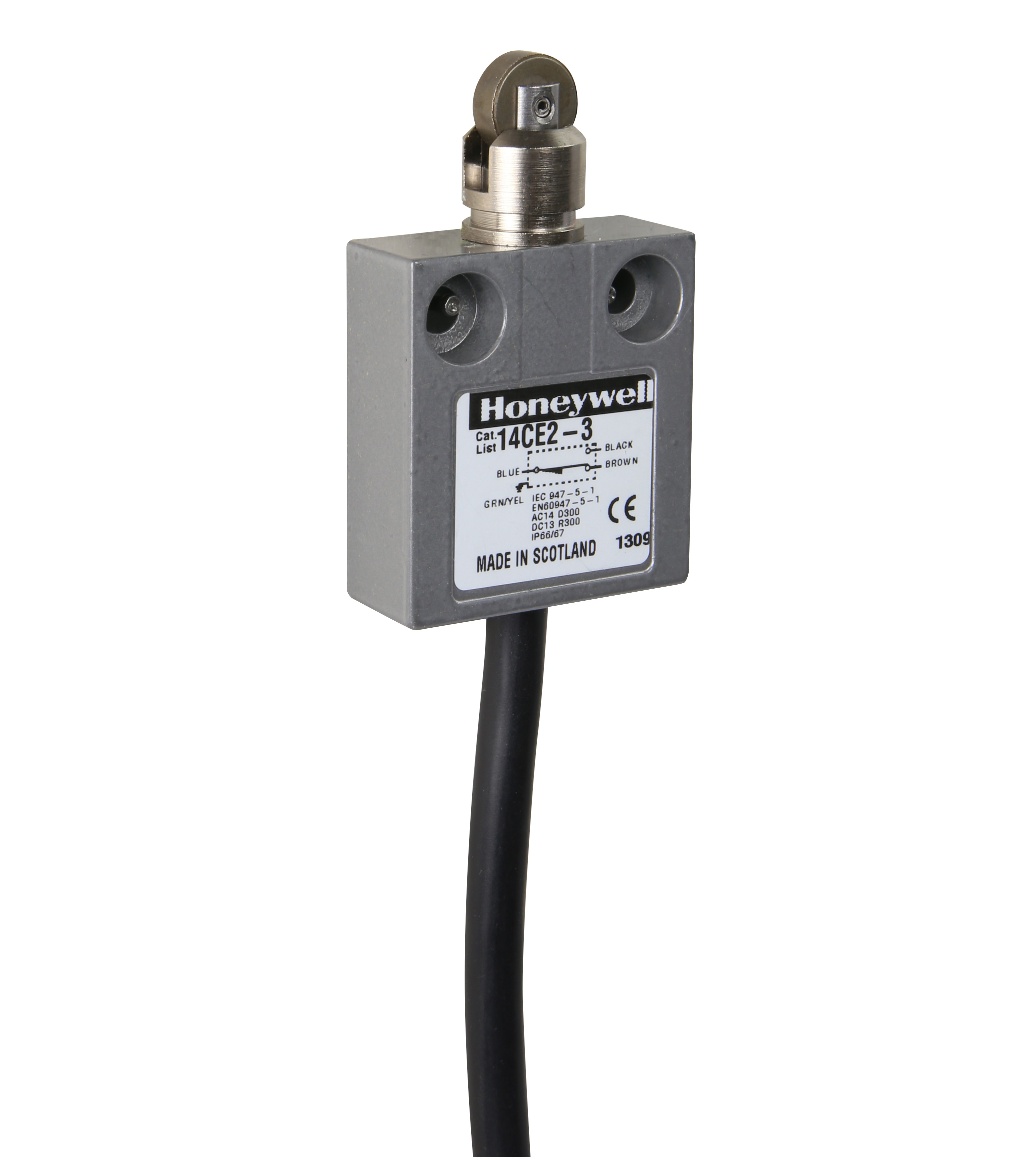

14CE2-3
