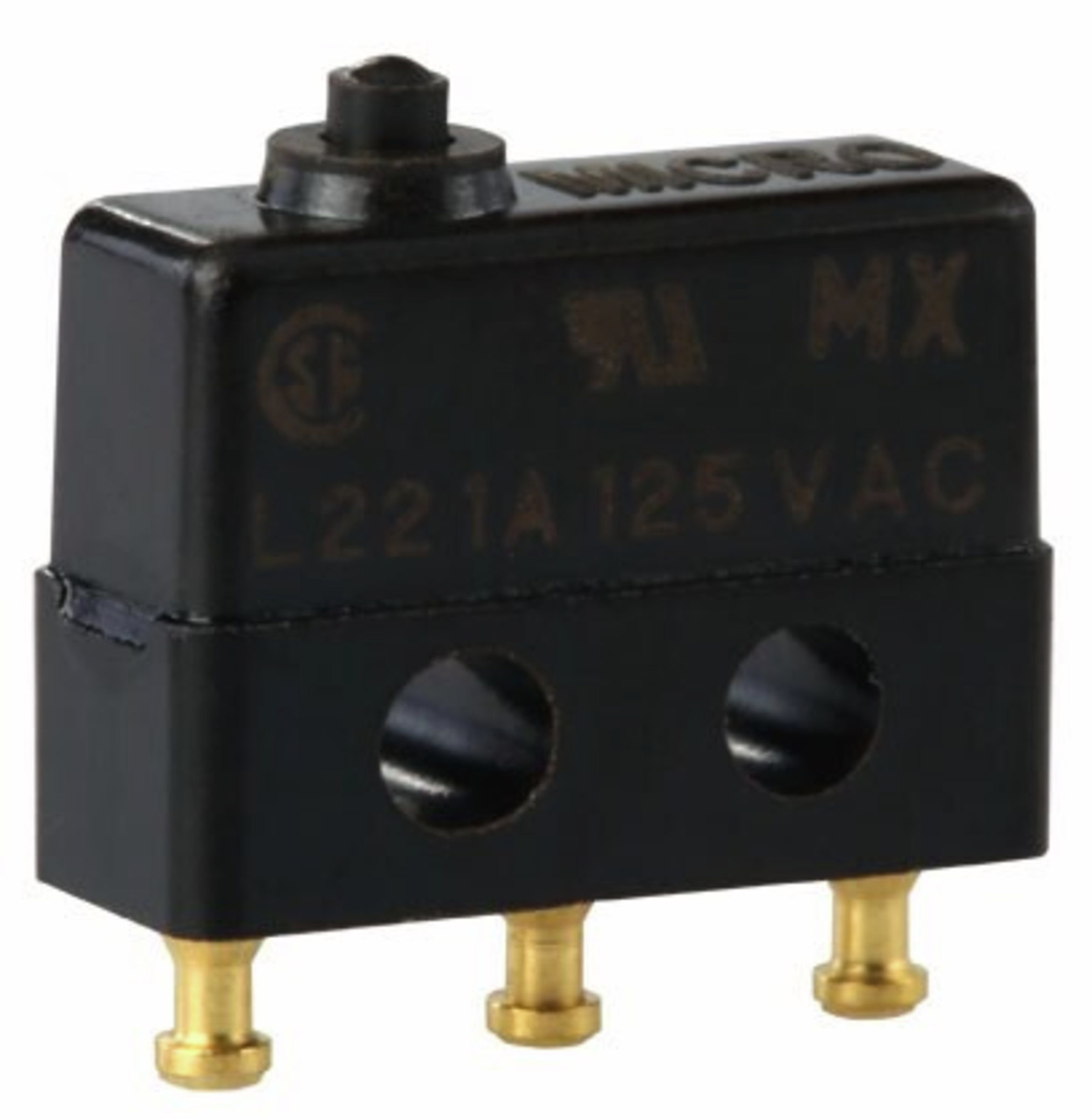

12SX1-T

Honeywell Micro Switches SX 1xCO Plunger 1A 1,39N

12SX1-T
NEW
Manufacturer Part No.
12SX1-T
Schukat Part No.
12SX1-T
Manufacturer
Honeywell
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 24/2026
200 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Micro Switches
Series
SX
Body colour
black
contacts
1xCO
Type of actuator
Plunger
Function
1xCO
Actuator colour
black
Number of poles
1
illumination
unlit
Operating voltage AC
125 V AC
Switching current, max.
1 A
Operating voltage DC
28 V DC
Actuating force, max.
1,39 N
Operating temperature range, min.
-54 °C
Operating temperature range, max.
12 °C
Approvals
CE
ENEC
UK CA
UL
cCSA
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Honeywell
Series
  • SX
Product group
  • E2712
Type
  • Micro Switches
contacts
  • 1xCO
Function
  • 1xCO
Body colour
  • black
Type of actuator
  • Plunger
Actuator colour
  • black
illumination
  • unlit
Product description
  • MICRO SWITCH SX Series is a premium subminiature snap-action switch from the family of S series subminiature basic switches. Although small in size, the SX Series is rated for controlling electrical loads ranging from logic-level/ computer-based circuits to limited power-duty switching (up to 7 A/ 250 Vac). The SX premium subminiature switch package offers gold contacts for low energy switching and bifurcated gold contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SX switch. A wide variety of stainless steel levers are available and when combined with the subminiature package size, can adapt the SX Series to a wide range of applications. To enhance the versatility of SX switches, the family is certified to UL, CE, CSA, ENEC, MIL-PRF-8805, FAA-PMA and UKCA for worldwide use. The SX Series is the right choice for a cost-effective premium subminiature switch package.

Dimensions and Weights

Dimension: Length
  • 12.7 mm
Dimension: Width
  • 5.1 mm
Dimension: Height
  • 8.9 mm

Operating conditions

Operating temperature range, min.
  • -54 °C
Operating temperature range, max.
  • 12 °C

Technical Features

Operating voltage DC
  • 28 V DC
Operating voltage AC
  • 125 V AC
Switching current, max.
  • 1 A
Material: Terminals
  • Silver

Mechanical properties

Connection
  • Solder pin
Actuating force, max.
  • 1,39 N
Number of poles
  • 1

Safety/Certifications

Approvals
  • CE
  • ENEC
  • UK CA
  • UL
  • cCSA
