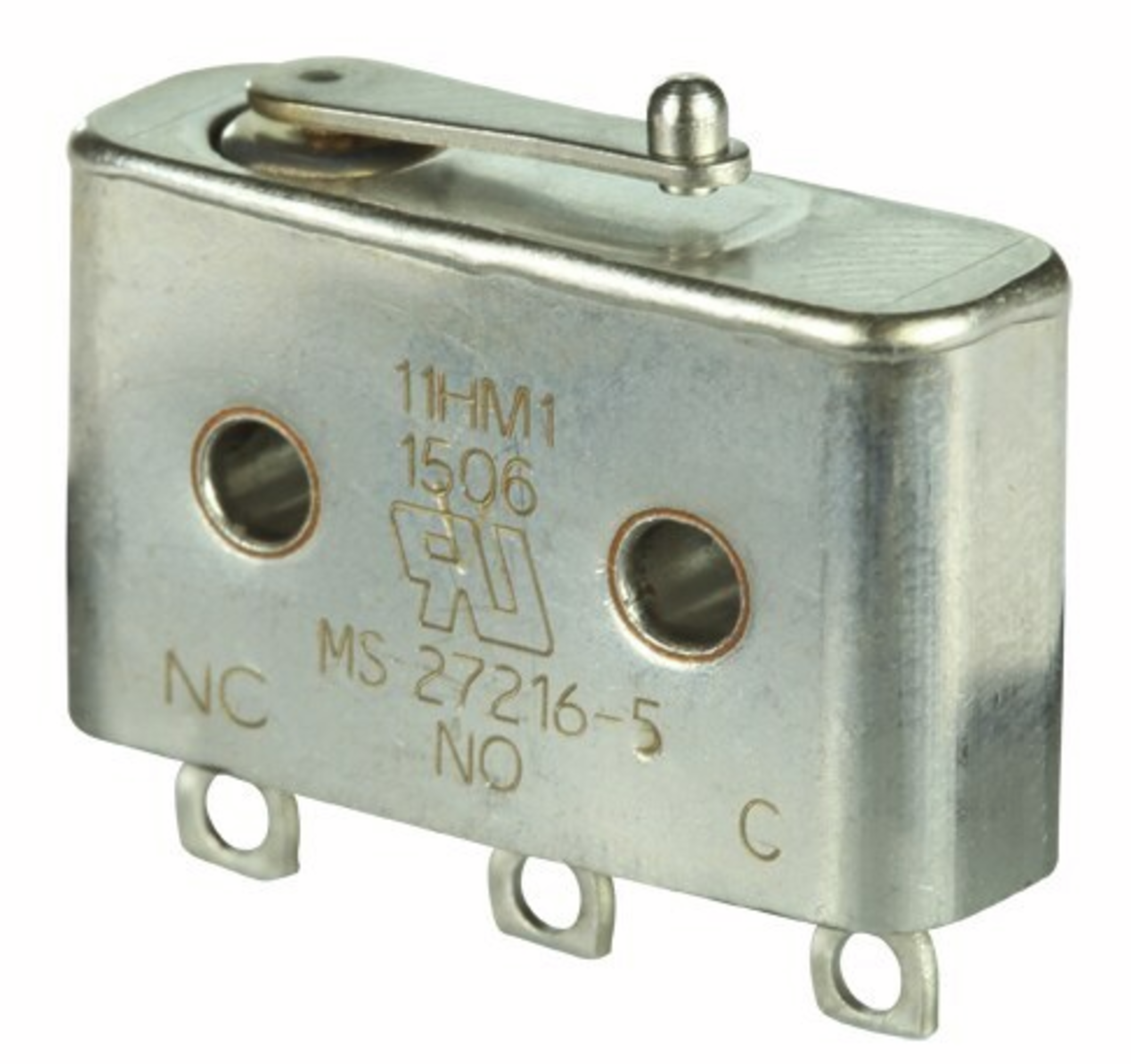

Honeywell Micro Switches HM 1xCO Lever 3A 1,94N

11HM1
NEW
Manufacturer Part No.
11HM1
Schukat Part No.
11HM1
Manufacturer
Honeywell
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 06/2027
10 Pcs.
Planned delivery time
Ø 50 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Micro Switches
Series
HM
Body colour
silver
contacts
1xCO
Type of actuator
Lever
Function
1xCO
Actuator colour
silver
Number of poles
1
illumination
unlit
Operating voltage AC
115 V AC
Switching current, max.
3 A
Operating voltage DC
28 V DC
Actuating force, max.
1,94 N
Operating temperature range, min.
-184 °C
Operating temperature range, max.
121 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Honeywell
Series
  • HM
Product group
  • E2712
Type
  • Micro Switches
contacts
  • 1xCO
Function
  • 1xCO
Body colour
  • silver
Type of actuator
  • Lever
Actuator colour
  • silver
illumination
  • unlit
Product description
  • Honeywell HM hermetic sealed miniature basic switches are designed for a variety of commercial and military aircraft as well as equipment for deep space applications (high altitude requirements). These miniature hermetic sealed switches can be found in a variety of other applications including military land vehicles, marine environments, and other harsh industrial environments. The switches are available as a MIL-PRF-8805 qualified switch. Select HM switches are available with UL 508 certification for industrial or surface transportation applications. The MICRO SWITCH™ HM hermetic sealed switch design incorporates the glass-to-metal and metal-to-metal sealing with more than 50 years of use in multiple applications. The hermetically sealed HM basic switches are ideal where a symbol 5 seal is required for stringent applications including a wide range of temperatures from -184 °C to 260 °C [-300 °F to 500 °F]. Designed with a stainless steel housing and hermetic seal construction, the HM switches are suitable for applications where dust, water, other particulate contaminants, and corrosive gases are present. The HM basic switch provides versatility with bifurcated gold contacts for controlling low energy loads (mA and mV) reliably or silver contacts for switching power duty loads at 30 vdc or 115 Vac, 400 Hz. Electrical connectivity to the switch is achieved with individual wire leads or “through hole” solder posts adding to the versatility of the HM switch.

Dimensions and Weights

Dimension: Length
  • 20.1 mm
Dimension: Width
  • 6.4 mm
Dimension: Height
  • 19 mm

Operating conditions

Operating temperature range, min.
  • -184 °C
Operating temperature range, max.
  • 121 °C

Technical Features

Operating voltage DC
  • 28 V DC
Operating voltage AC
  • 115 V AC
Switching current, max.
  • 3 A
Material: Body
  • Stainless steel
Material: Terminals
  • Silver

Mechanical properties

Connection
  • Soldering eye
Actuating force, max.
  • 1,94 N
Number of poles
  • 1

Other Products

All Products of the Series
NEW
Loading...
2HM19-1
Honeywell
Micro Switches HM 1xCO Lever 4A 1,94N
from €822.51
NEW
Loading...

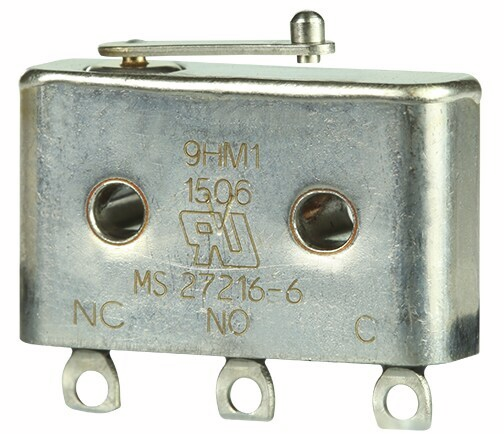

9HM1
