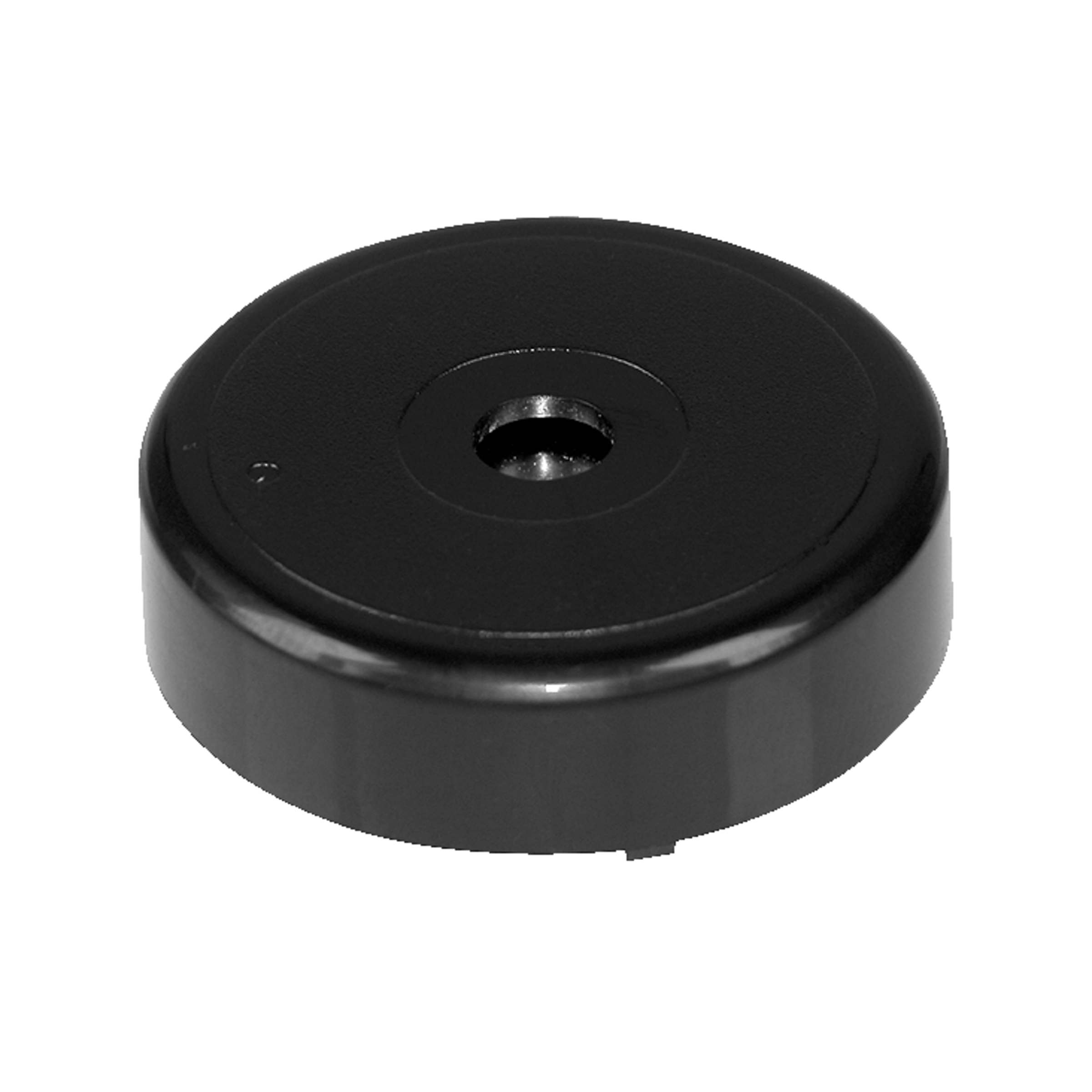

PT-2130PQ
Hitpoint Piezo Transducer PT 90dB 30V 5mA 3.000Hz
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
200 Pcs. in stock
Next Stock Receipt
Week 05/2025
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Piezo Transducer
- Sound pressure level, min.
- 90 dB
- Rated Voltage
- 30 V
- Resonant frequency
- 3,000 Hz
- Current Consumption Max.
- 5 mA
- Termination Style
- Pins
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 90 °C
Electrical features
- Rated Voltage
- 30 V
- Current Consumption Max.
- 5 mA
- Static Electric Capacity
- 26,000 pF
- Resonant frequency
- 3,000 Hz
- Sound pressure level, min.
- 90 dB
