PS-733PDYQ

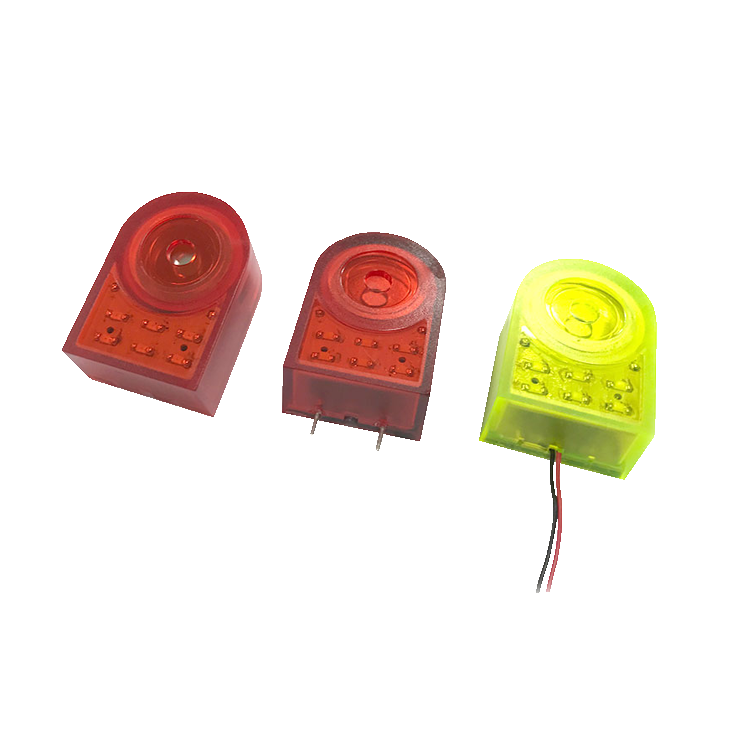

Hitpoint Optical Sounder PS 85dB 5V 15V 200mA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
200 Pcs.
200 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 84 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 200 or multiple of 200)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Optical Sounder
- Resonant frequency, min.
- 2,500 Hz
- Resonant frequency, max.
- 4,500 Hz
- Current Consumption Max.
- 200 mA
- Sound pressure level, min.
- 85 dB
- Termination Style
- Pins
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Electrical features
- Operating voltage, min.
- 5 V
- Operating voltage, max.
- 15 V
- Current Consumption Max.
- 200 mA
- Resonant frequency, min.
- 2,500 Hz
- Resonant frequency, max.
- 4,500 Hz
- Sound pressure level, min.
- 85 dB
- Sound
- Sweep
