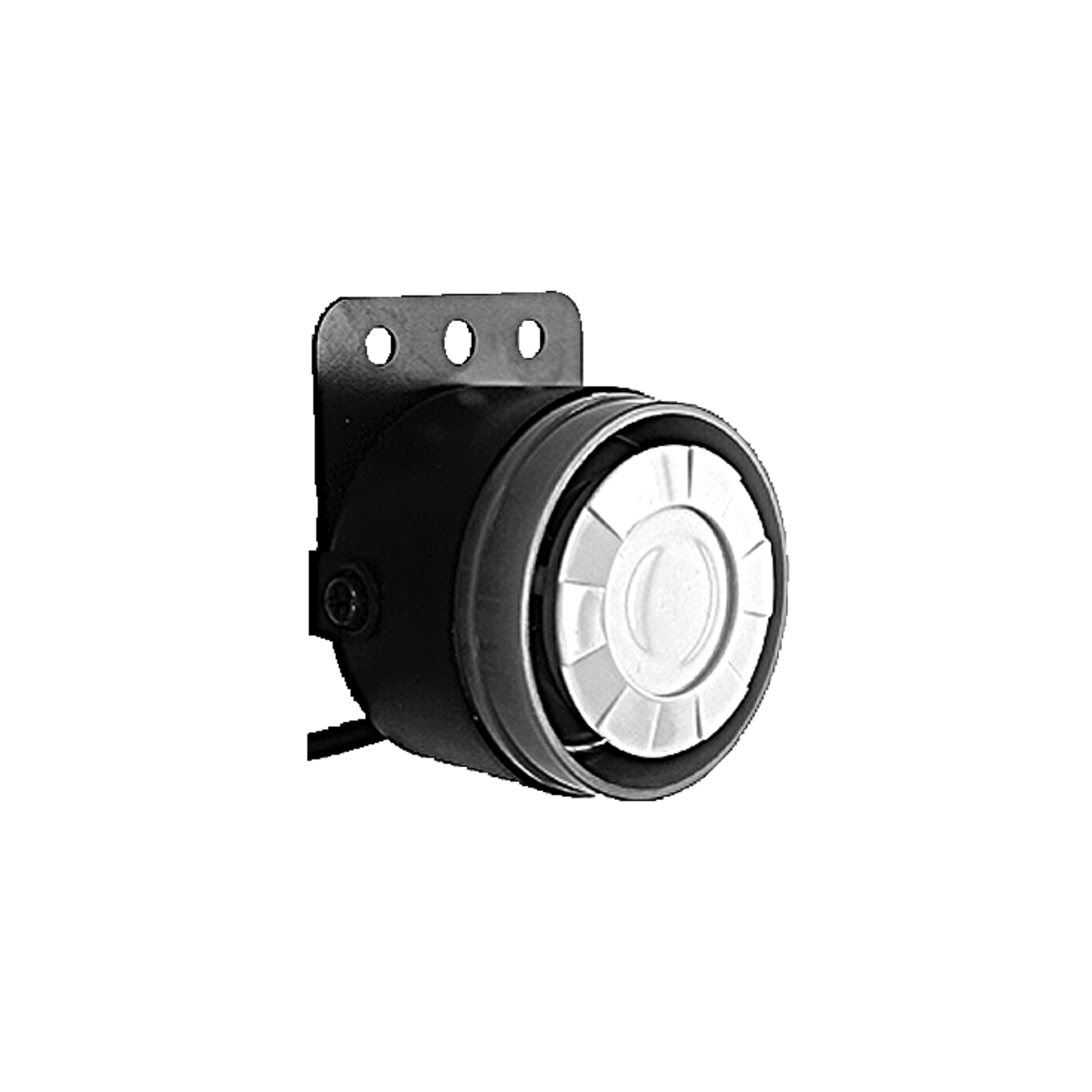

PS-693Q
Hitpoint Siren PS 110dB 12 V 200mA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 01/2025
327 Pcs.
327 Pcs.
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Siren
- Resonant frequency, min.
- 1,500 Hz
- Resonant frequency, max.
- 3,800 Hz
- Rated Voltage
- 12 V
- Current Consumption Max.
- 200 mA
- Sound pressure level, min.
- 110 dB
- Termination Style
- Wire
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 55 °C
Electrical features
- Rated Voltage
- 12 V
- Current Consumption Max.
- 200 mA
- Resonant frequency, min.
- 1,500 Hz
- Resonant frequency, max.
- 3,800 Hz
- Sound pressure level, min.
- 110 dB
- Sound
- Sweep
