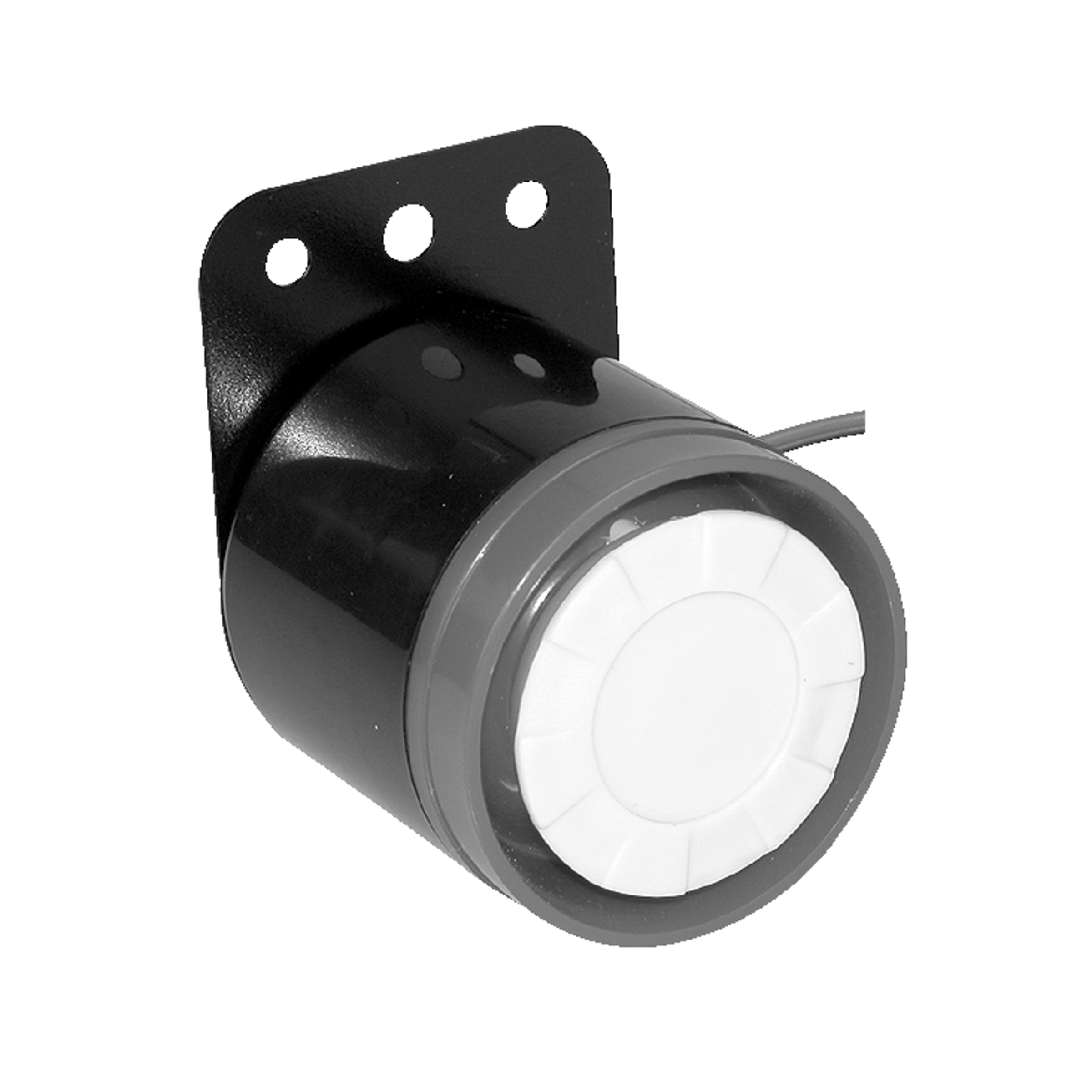

PS-593SCQ
Hitpoint Siren PS 115dB 12 V 150mA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
364 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 128 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Siren
- Resonant frequency, min.
- 1,500 Hz
- Resonant frequency, max.
- 3,500 Hz
- Rated Voltage
- 12 V
- Current Consumption Max.
- 150 mA
- Sound pressure level, min.
- 115 dB
- Termination Style
- Wire
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Electrical features
- Rated Voltage
- 12 V
- Current Consumption Max.
- 150 mA
- Resonant frequency, min.
- 1,500 Hz
- Resonant frequency, max.
- 3,500 Hz
- Sound pressure level, min.
- 115 dB
- Sound
- Sweep
