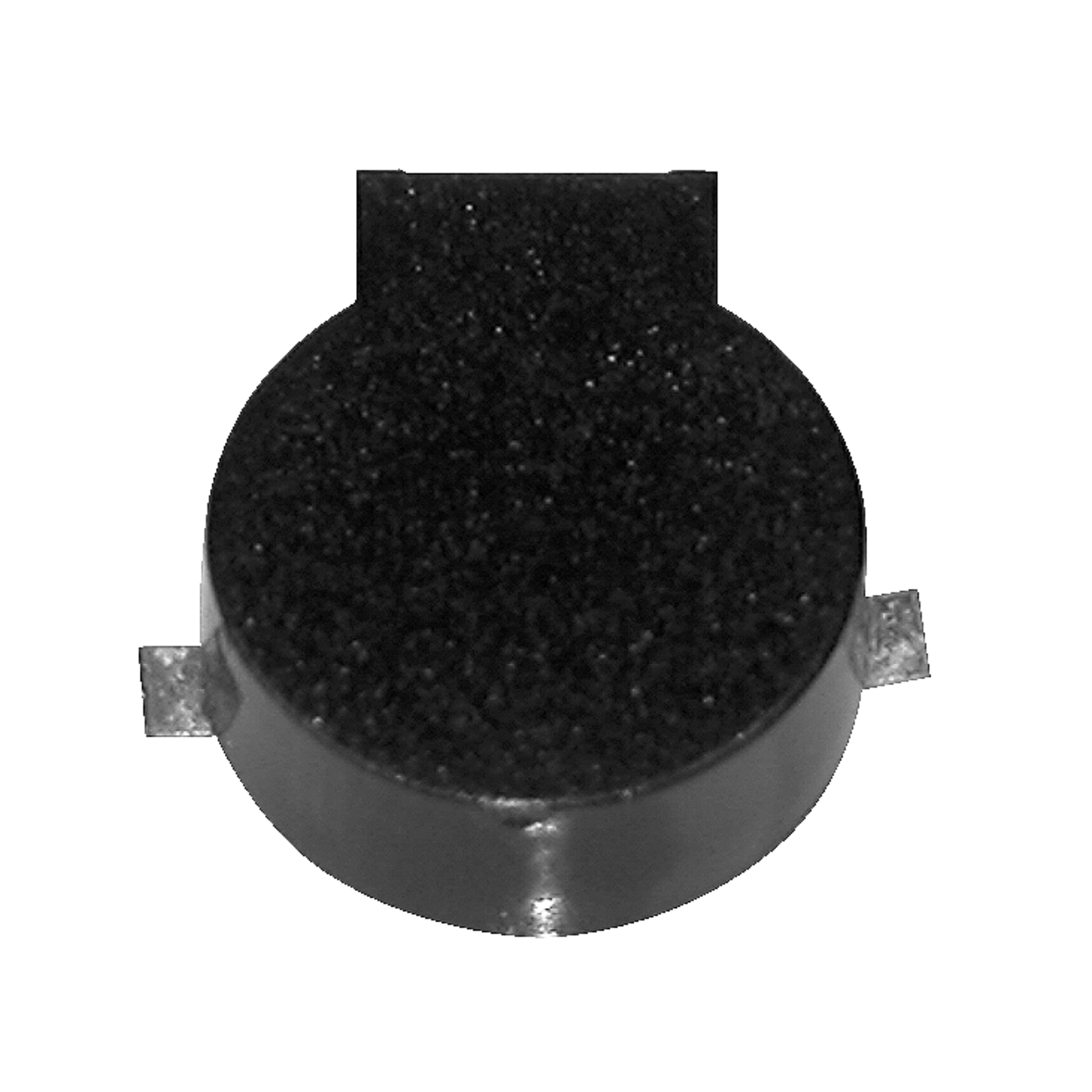

PB-09S27P-05Q

Hitpoint Electric Sounder PB 85dB 5V 70mA

Manufacturer Part No.
PB-09S27P-05Q
Schukat Part No.
PB9S27P05Q
Manufacturer
Hitpoint
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

60 Pcs. in stock

Next Stock Receipt
Week 05/2025
1.000 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Electric Sounder
Sound pressure level, min.
85 dB
Rated Voltage
5 V
Current Consumption Max.
70 mA
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Hitpoint
Type
  • Electric Sounder
Series
  • PB

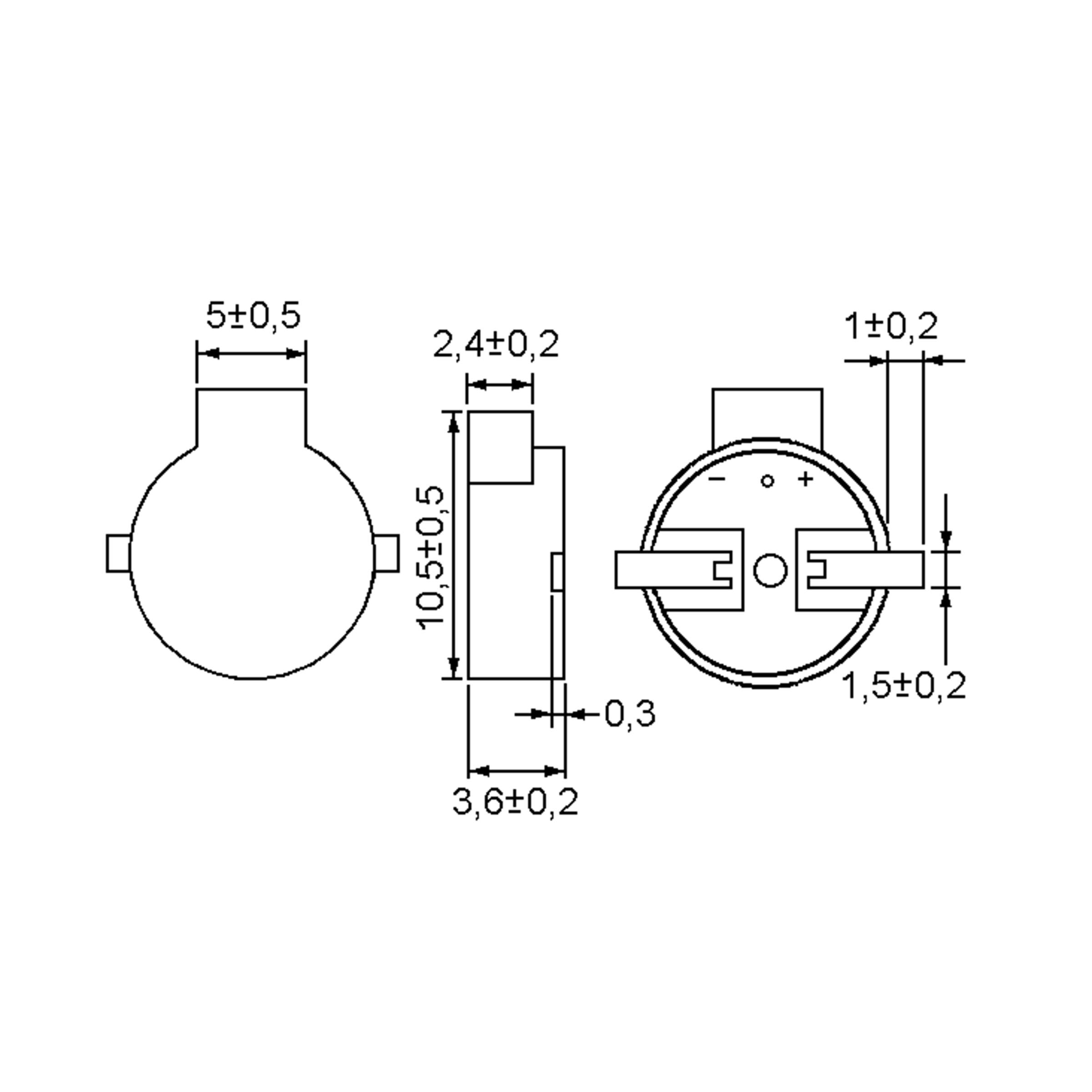

Dimension: Diameter
  • 10.5 mm
Dimension: Height
  • 3.6 mm
Assembly Type
  • SMD
Features

  • - Low current consumption
    - High sound output
    - Small size and light weight

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C

Electrical features

Rated Voltage
  • 5 V
Current Consumption Max.
  • 70 mA
Oscillation frequency
  • 2,730 Hz
Sound pressure level, min.
  • 85 dB
