PB-0540MWQ

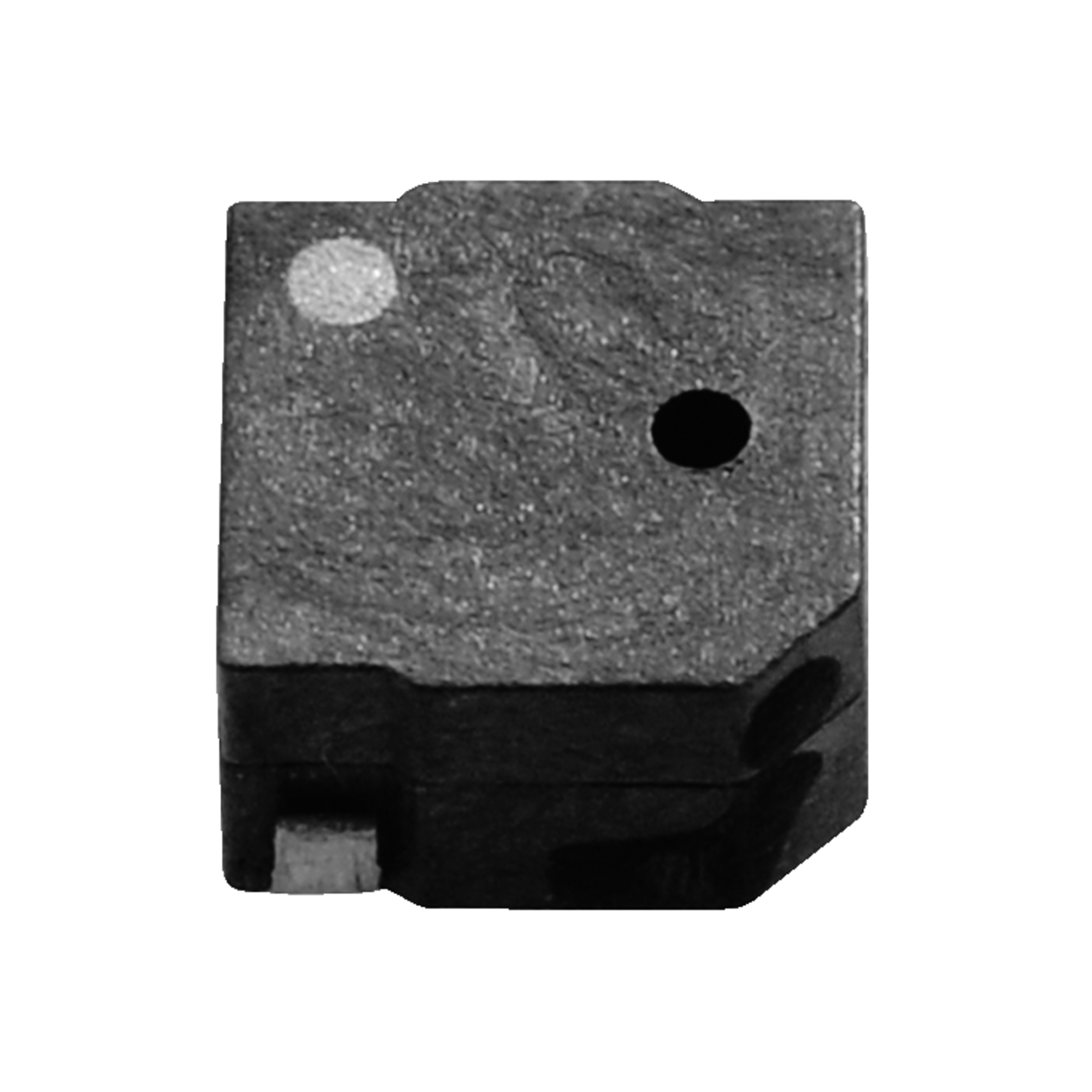

Hitpoint Electric Sounder PB 80dB 3V 110mA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
140 Pcs. in stock
Next Stock Receipt
Week 09/2025
2.500 Pcs.
2.500 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Electric Sounder
- Sound pressure level, min.
- 80 dB
- Rated Voltage
- 3 V
- Current Consumption Max.
- 110 mA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 60 °C
Electrical features
- Rated Voltage
- 3 V
- Current Consumption Max.
- 110 mA
- Oscillation frequency
- 4,000 Hz
- Sound pressure level, min.
- 80 dB
