340.033-MANUAL RESET
Hansor Polymer Technology Automotive fuse 340.000 Manual Reset 28VDC 30A green
Manufacturer Part No.
340.033-MANUAL RESET
Schukat Part No.
340.033-MR
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
95 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable fuse holders. - Type
- Automotive fuse
- Series
- 340.000 Manual Reset
- Design
- Circuit breaker
- Colour
- green
- Rated current
- 30 A
- Rated voltage V DC
- 28 V DC
- Switching capacity
- 300 A
- RoHS-Conform
Specifications
Open all

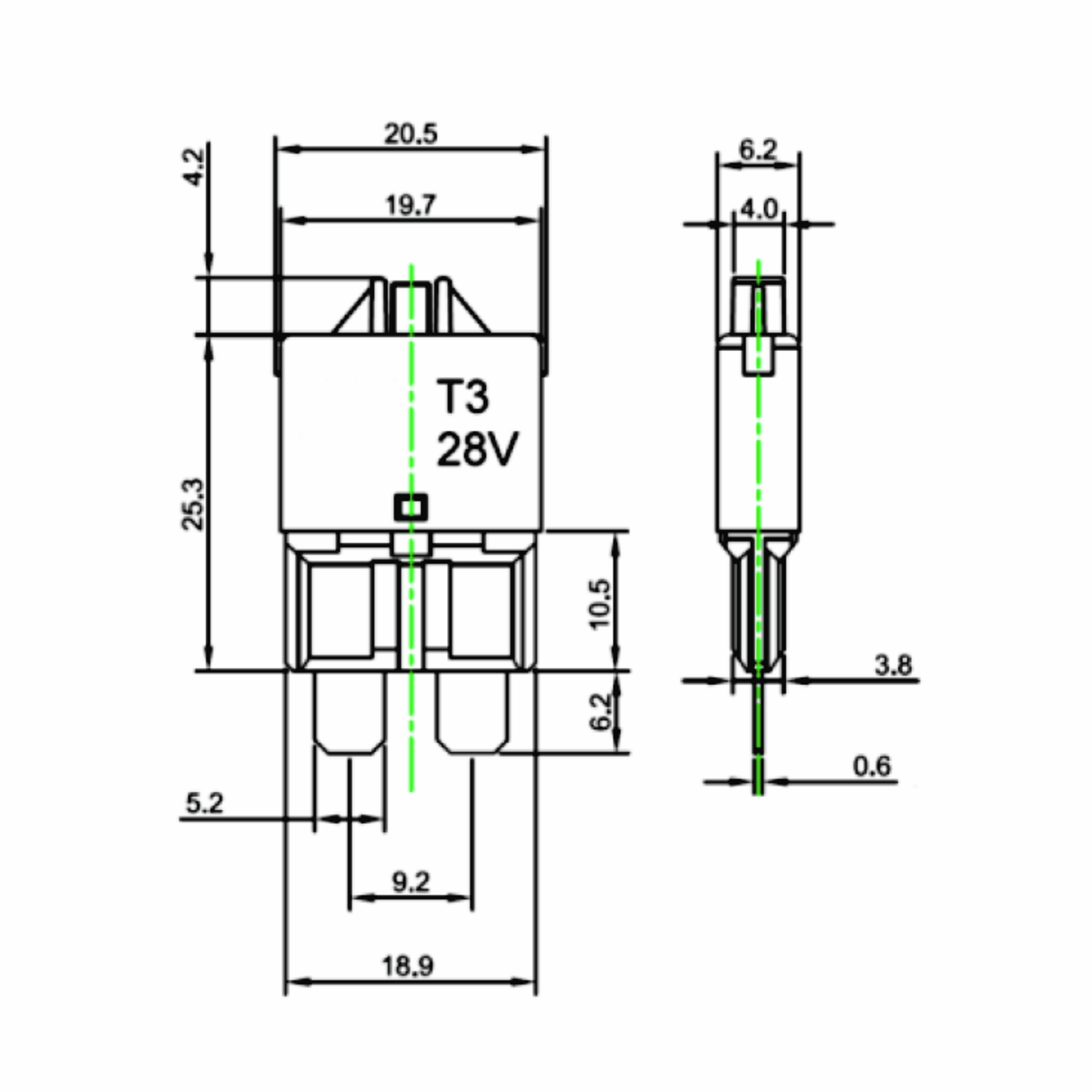

Dimensions and Weights
- Dimension: Length
- 20.5 mm
- Dimension: Width
- 6.2 mm
- Dimension: Height
- 35.7 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical Features
- Rated current
- 30 A
- Switching capacity
- 300 A
- Rated voltage V DC
- 28 V DC
Safety/Certifications
- Standards
- SAE J553 Type III
