1599TABMGYBAT

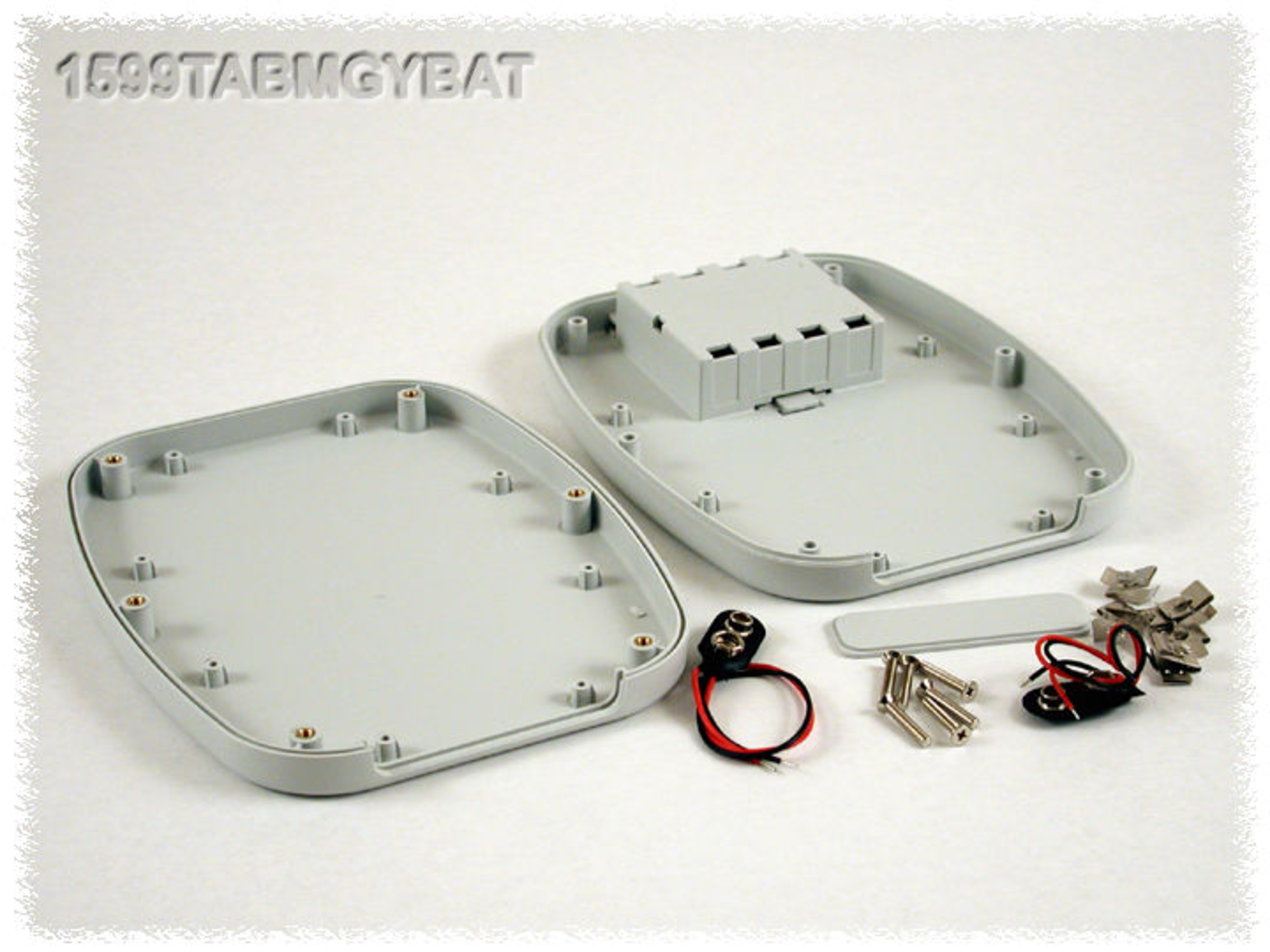

Hammond 1599TAB Handheld housing 170mm x 135mm x 27mm gray IP54
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Handheld housing
- Assembly Type
- Screw mounting
- Dimension: Length
- 170 mm
- Dimension: Width
- 135 mm
- Dimension: Height
- 27 mm
- Type ( axial, radial )
- Battery compartment
replaceable panel - Colour
- gray
- Material
- ABS (Acrylonitrile Butadiene Styrene)
- Protection Class IP
- IP54
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 170 mm
- Dimension: Width
- 135 mm
- Dimension: Height
- 27 mm
Safety/Certifications
- Protection Class IP
- IP54
- Standards
- UL94V-0
