1591TSBK

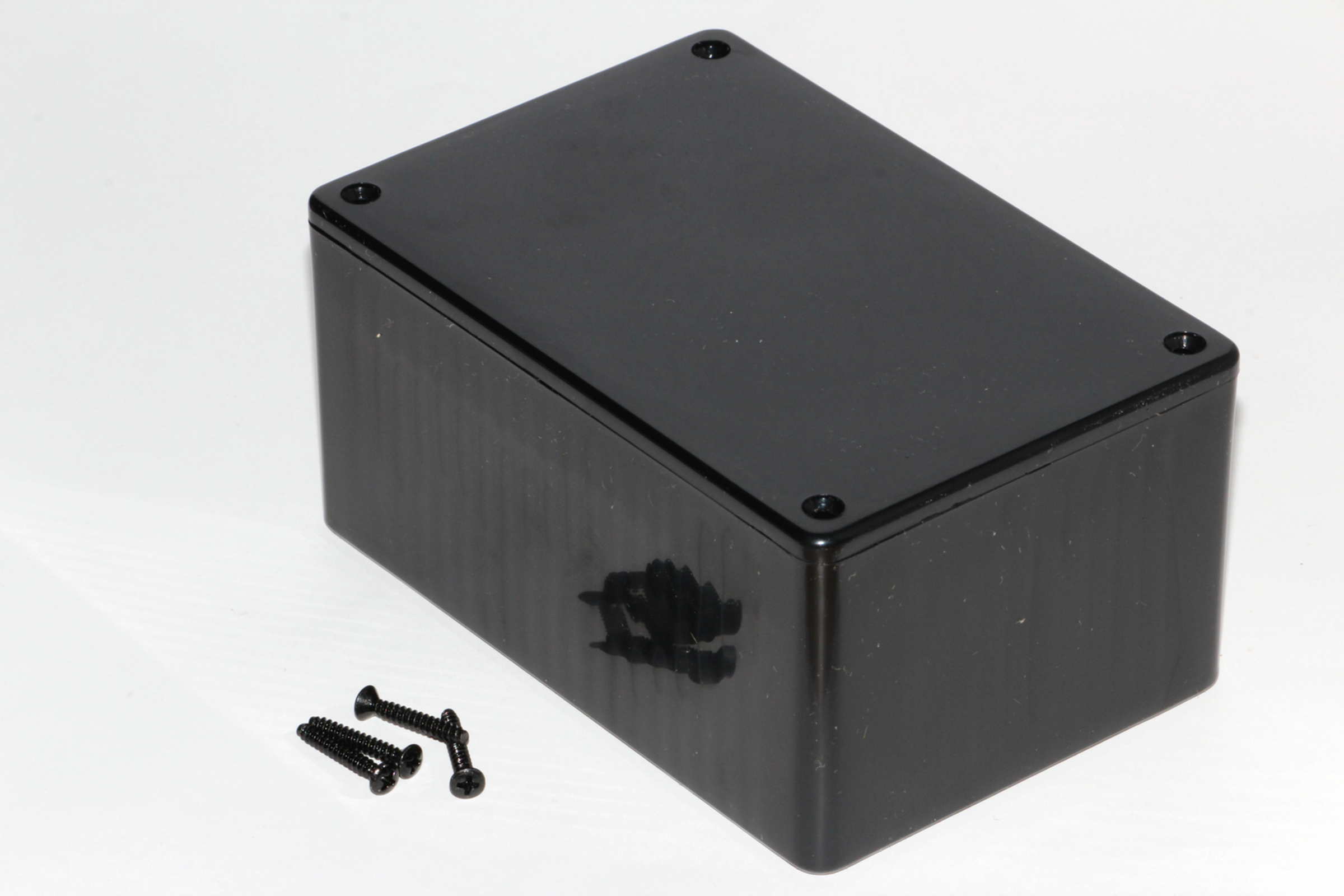

Hammond 1591 Universal housing 120mm x 80mm x 59mm black IP54

Manufacturer Part No.
1591TSBK
Schukat Part No.
HA1591TSBK
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

13 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Universal housing
Assembly Type
Screw mounting
Dimension: Length
120 mm
Dimension: Width
80 mm
Dimension: Height
59 mm
Colour
black
Material
ABS (Acrylonitrile Butadiene Styrene)
Protection Class IP
IP54
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Hammond
Series
  • 1591
Product group
  • G4315
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • black
Type
  • Universal housing
Assembly Type
  • Screw mounting
Features
  • - ABS enclosure in black or grey
    - Economy version, made of ABS plastic (not flame-retardent)
    - Suitable for vertical mounting of printed circuit boards
    - Integral card guides for 1.5mm P.C. cards
    - Meets IP54
    - Lid is secured to base with self tapping screws

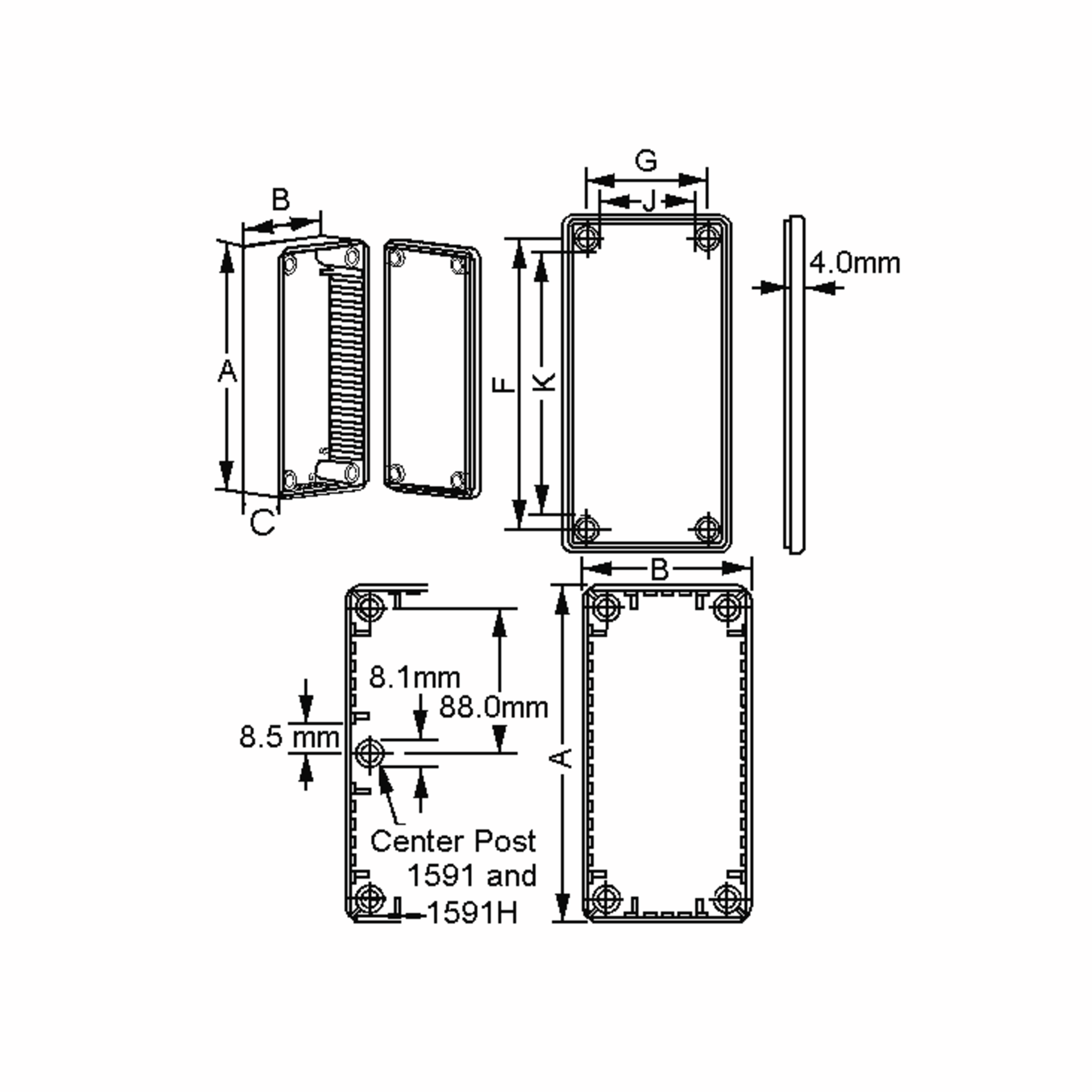

Dimensions and Weights

Dimension: Length
  • 120 mm
Dimension: Width
  • 80 mm
Dimension: Height
  • 59 mm

Safety/Certifications

Protection Class IP
  • IP54
