1590WJ

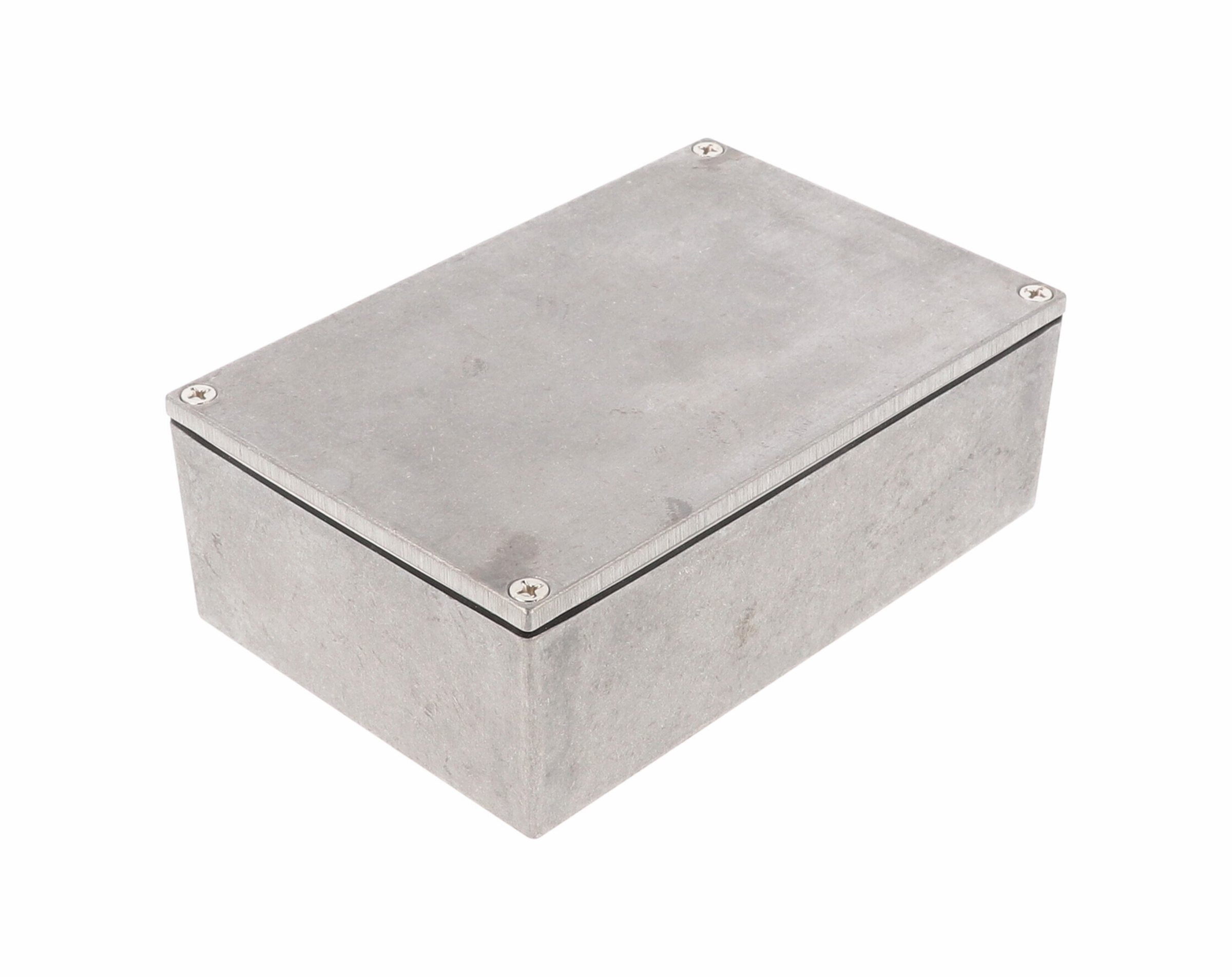

Hammond 1590W Aluminum Small housing 145mm x 95mm x 49mm IP65

Manufacturer Part No.
1590WJ
Schukat Part No.
HA1590WJ
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Small housing
Assembly Type
Screw mounting
Dimension: Length
145 mm
Dimension: Width
95 mm
Dimension: Height
49 mm
Material
Aluminum
Finished
untreated
Protection Class IP
IP65
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Hammond
Series
  • 1590W
Product group
  • G5118
Material
  • Aluminum
Finished
  • untreated
Type
  • Small housing
Assembly Type
  • Screw mounting
Features
  • - Rugged diecast aluminium alloy enclosure, untreated or black
    - Provides protection against access of dust and splashing water
    - Four machine screws are included in the delivery
    - Designed to meet IP65
    - Low side wall draft angle

Dimensions and Weights

Dimension: Length
  • 145 mm
Dimension: Width
  • 95 mm
Dimension: Height
  • 49 mm

Safety/Certifications

Protection Class IP
  • IP65
